Bumer Makina products

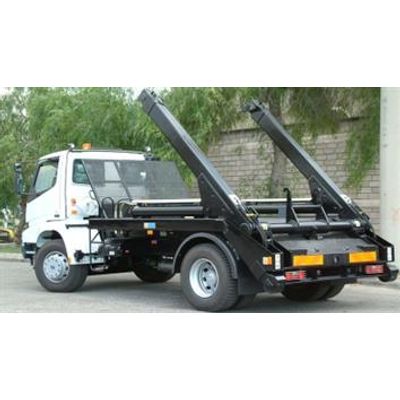

The equipment is designed to lift the containers made according to (or specified by customer) containers on to the platform mounted on the truck chassis. It can also dump the containers in order to discharge its content. The design is made according to the required containers. Equipment consists of a sub-frame and two loading arms, landing legs and hydraulic and pneumatic installation.

Those tankers are designed to transport water or any other liquids, and to clean roads when it is requested by our customers with a special system. Tanks are produced in elliptical, cylindrical or “D” shape with stainless steel or ST 37,2 / 52 norm plates. Inside the tank, there are water breaks through the entire body, a 500 mm Ø hatch placed above the tank. Water / liquid level indicator, and a ladder to climb upside and a catwalk above the tanker. Pump, single-staged centrifugal force model, is placed near the chassis for easy controlling. The power which is needed for the pump to operate is provided by Power Take-Off (PTO); It is controlled from the driver cabin. Using the hatch above the tank, it can be filled with natural flow or by a hose from any other source. A 20 m. 1” Ø hose is placed near the chassis under the tank, as a standard equipment.

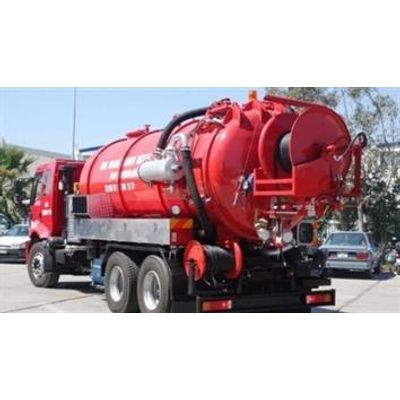

Vacuum trucks are designed to load liquids, sludge or slurry through suction hoses to tank. Its built on a lower chassis, a cylindrical tank on top, a rear hatch and vacuum system which provides its power from Power Take-Off (PTO). Tank is welded both externally and internally, and has water-breaks through entire body. Tank’s standard producing material is ST 37,2 norm, but we produce it with ST 52 or Hardox stainless steel according to our customers request.

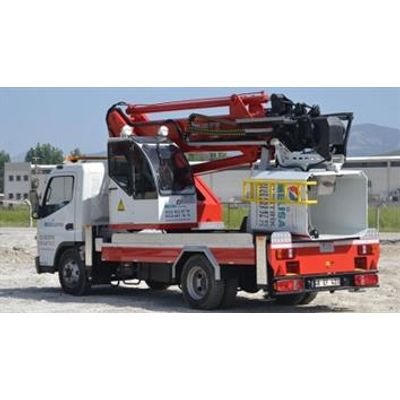

Articulated platforms can be used for exterior cleaning of buildings, maintenance and repair of power lines, construction areas, cutting of wood, etc. Booms are made of high-strength special steel. The support legs are designed with serial opening system. Safety packages are available for hydraulic and electrical systems.

Telescopic platforms can be used for exterior cleaning of buildings, maintenance and repair of power lines, construction areas, cutting of wood, etc. Booms are made of high-strength special steel. The support legs are designed with serial opening system. Safety packages are available for hydraulic and electrical systems.

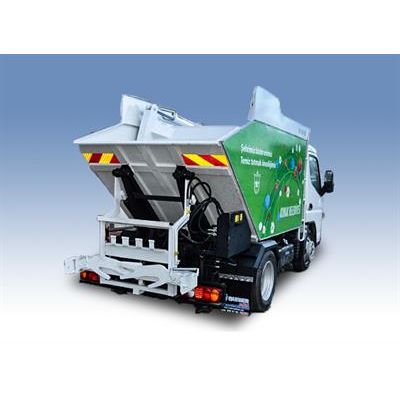

Mini dumper garbage trucks may  be used for collecting trash in narrow streets or parks closed to traffic or partially closed in the cities.

Container bin lifting system. Safety bar for tailgate. Rear projector light for night-shifts. 2 worker holders with safety bars near tailgate. Flashing beacon. Dirty water tank under the box. Auto / manual remote control option. Emergency stop buttons. Rear vision camera. Standard Containers 4 to 8 m³. Special Containers 9 to 24 m³. Tailgate vol. 0,6 to 2,5 m³. Compression 1:3 to 1:6. Power Take-Off Standard. Container lifting systems build by request / any size. 120-240-400-800-1100 liters.

Sliding platforms are used for the transfer of vehicles that have failed, or for the transfer of work machines or wheel less roadside assistance vehicles. By means of the rope drum mounted on the frame, the defective vehicles are slid and pulled  closer to the case. In the case of fixed frame platforms, the rear doors can be lowered by the hydraulic system and served as a ramp. From the ramp, work machines are fixed to the platform and their transfers are realized.

Special design trucks for police service , car rescue and car repair services and municipalities. Lift can carry up to 3000 kg. 2 or 3 car carry chassis is also an option. 4 hydraulic outriggers. Hydraulic sliding platform is an option for heavier vehicles, to pull the vehicle on the platform with a hook.
