CAE S.p.A. products

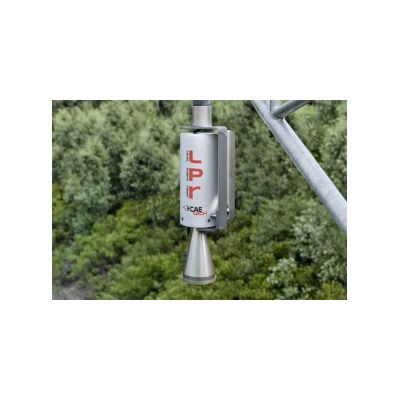

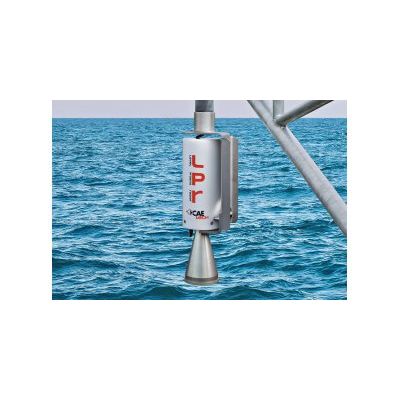

Wave and tide sensor based on radar technology entirely designed and manufactured in Italy. Thanks to its high sampling rate, up to 4 times per second, LPR W is suitable to detect many typical measures of marine science. Accuracy and performance are unaffected by changes in water density and atmospheric conditions, it provides accurate measurements in all weather conditions, with a measurement accuracy of ±1 cm up to 35 metres away.

ULM30/N is an ultrasonic snow depth sensor, equipped with its own electronics with microprocessor and storage memory. ULM30 consists of a latest generation ultrasonic transducer, suitable for both transmission and reception. Snow cover measurement takes place with the emission of a series of ultrasonic pulses and subsequent analysis of the echo received. The sensor, via this data, appropriately compensated according to the air temperature measured by the integrated thermometer, provides the distance from the target surface.

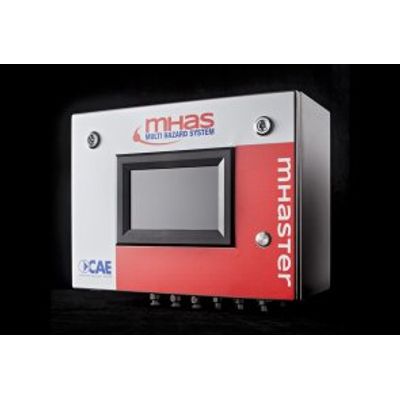

The Mhaster is the datalogger to which they referred all the management tasks of the equipment in the field. A powerful hardware has been built based on embedded Linux operating system to best achieve all these activities, while ensuring high flexibility and user friendly graphical interface.

ACTI-Link is a communication device dedicated to the remote activation of monitoring and alert system components that require the remote activation or deactivation of instruments for the dissemination of audible or visual alarms or for the prohibition of vehicular traffic. In the event of exceeding the critical threshold of any of the parameters measured, thanks to ACTI-Link it is possible to send a command via a radio signal activating all the “target” modules that constitute the alarm system. The ACTI-Link module has been developed to perform, also simultaneously, functions of: activator, component actuator, repeater from and to other modules, PC interface.

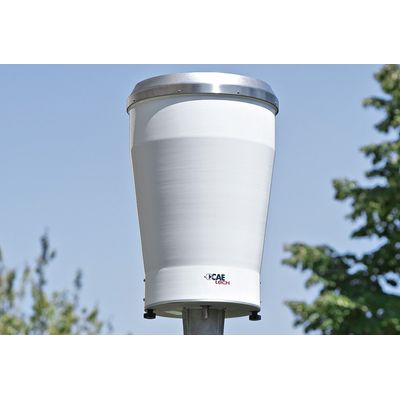

PG10 is the highest-performance (tipping bucket) rain gauge with 1000 cm2 captation surface on the market today. The PG10R edition is equipped with distributed heaters allowing use of the instrument to measure the water content of frozen precipitations too. It is a rain gauge very accurate and it indicates any malfunctions before they cause interruption of measurement. PG10 and PG10R measure liquid precipitation, and in the heated version water equivalent of solid precipitation, with an output resolution of 0.1 mm. The error of the PG10 product class is less than 3% up to 800 mm/h.

PG2 is the highest-performance tipping bucket rain gauge with 200 cm2 captation surface on the market today, it is certificable in class A according to the criteria of the UNI EN 17277:2020 standard. Accurate, it indicates any malfunctions before they cause interruption of measurement and it’s usable without a power supply also at low temperatures thanks to the heated raing gauge version: PG2/R. PG2 measures liquid precipitation with an output resolution of 0.1 mm. The error of the PG2 product class is less than 3% up to 700 mm/h.
