Cannon Instrument Company products

CANNON CAV 4.1 is a fully automated, single bath, benchtop viscometer with two 14-position sample handlers for unattended D445 processing. Each of the two tubes covers a 100-fold viscosity range at values between 0.5 mm²/s (cSt) and 10,000 mm²/s (cSt) from 40 °C to 150 °C (down to 20 °C with optional integral bath cooler). The CAV 4.1 replaces CANNON`s trusted, obsolete CAV-2100 viscometer.

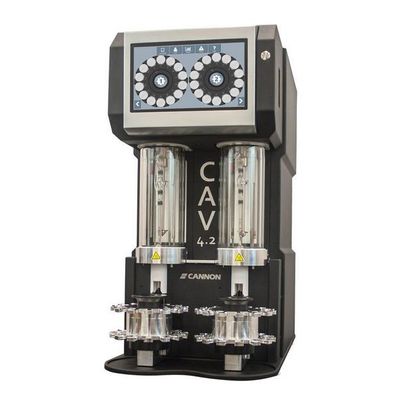

CAV 4.2 is a fully automated, dual-bath, benchtop viscometer with two 14-position sample handlers for unattended D445 processing. Each of the two tubes (one per bath) covers a 100-fold viscosity range at values between 0.5 mm²/s (cSt) and 10,000 mm²/s (cSt) from 15 °C to 150 °C (with available options).

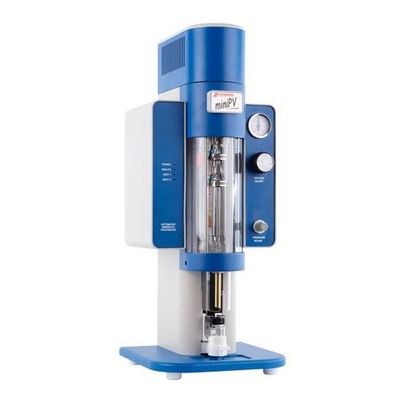

miniPV Automated Dilute Solution/Kinematic Viscometer. miniPV is a fully automated, single-sample, benchtop viscometer for unattended processing and testing in organic solvents and aqueous solutions for dilute solution viscosity of polymers and kinematic viscosity for general purpose applications.

The CBC-100 external thermoelectric bath cooler extends liquid bath temperature ranges by lowering and maintaining bath temperatures as much as 15 °C below ambient. The CBC-100 improves bath temperature stability when operating at test temperatures < 40 °C and in high ambient temperature test environments. It is easy to use, compact and reliable.

The CT-500 series constant temperature bath accommodates viscometer tubes requiring a bath depth up to 12" and provides reliable temperature control from 20 °C to 100 °C . The unit accommodates up to 7 simultaneous viscosity determinations.

The CT-518 series constant temperature bath accommodates viscometer tubes requiring a bath depth up to 18" and provides reliable temperature control from 20 °C to 100 °C. The unit accommodates up to 7 simultaneous viscosity determinations. For Kinematic Viscosity from 20 °C to 100 °C. Conforms to test methods ASTM D445/D446, ISO 3104/3105.

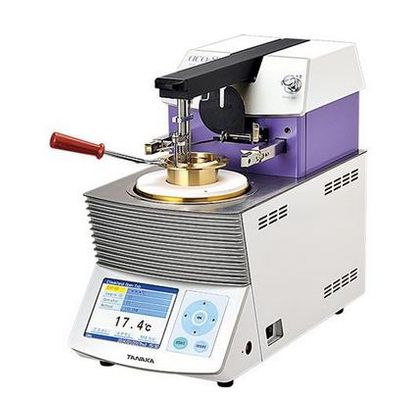

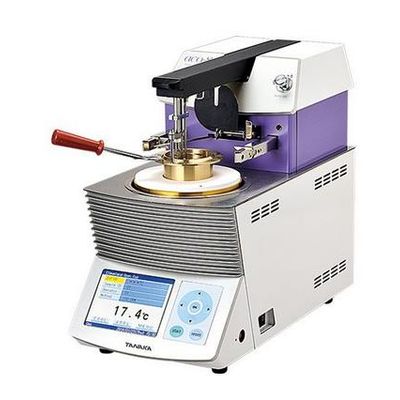

The aco-8 is an automated Cleveland Open Cup (COC) flash and fire point tester. A metallic lid automatically covers the test cup when a sustained fire is detected. Ergonomic color-coordinated display for high visibility with a universal design and intuitive switch operation. Enhanced versatility including USB port for options flash memory or keyboard, password protection and data storage. All-in-one chassis design is compact, light-weight and features a premium exterior design.

The aco-8as is an automated Cleveland Open Cup (COC) flash and fire point tester designed specifically for testing bitumous materials. A metallic lid automatically covers the test cup when a sustained fire is detected. Ergonomic color-coordinated display for high visibility with a universal design and intuitive switch operation. Enhanced versatility including USB port for options flash memory or keyboard, password protection and data storage. All-in-one chassis design is compact, light-weight and features a premium exterior design. Conforms to test methods ASTM D92, ISO 2592 and IP 36. Protect your investment and ensure your instrument continues to provide quality and reliable results for years to come with a Standard CANNON Service Plan.

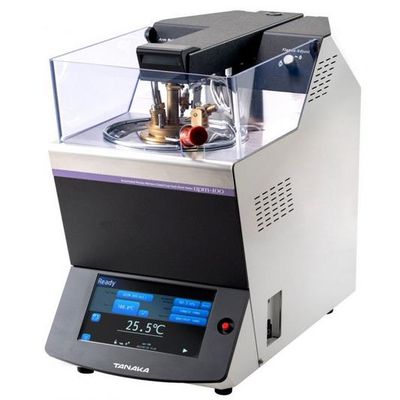

The Tanaka apm-100 for CANNON is an automated Pensky-Martens Closed Cup flash point tester with built-in fire containment. Procedures are pre-programmed for homogeneous petroleum liquids, residual fuel oils and other non-homogeneous liquid and biodiesel. Conforms to test methods ASTM D93, JIS K 2265-3, ISO 2719, ISO 15267, and IP 34.
