CD Nova Ltd software

Station Manager data logger includes a wide variety of averaging methods, such as: standard arithmetic averaging. Wind Speed and Direction Vectors, Sigma, Sigma Theta, Sigma w, Sigma v, Rainfall, Gust, Coefficient of Haze (COH), Difference, Sum, Ratio, Lbs/Hr, ton/Day, Lbs/mmBTU, ppm-dry-corrected, Linearize, Multi-Hour Rolling Averages, Multi-Day Rolling Averages, Block Averages, Stack Flow, and many standard equations used in CEMS monitoring. Station Manager data loggers include an extremely realistic trend and strip chart program. Users can create up to 10 pre-defined strip charts with up to 8 parameters on each chart. Advanced features include zoom, selective removal of traces, highlighting of traces, and chart annotations. Provides 1-second data resolution of data on strip charts.

System Manager offers an extensive range of features and capabilities for operation and management of Ambient Air Quality Monitoring or CEM Networks. System Manager polls EMC Station Manager data loggers, other data loggers brands, and PM samplers via the Internet, Dial-up Modems, Leased Lines, or Spread-Spectrum Radios. System Manager has an extensive selection of standard Ambient/CEM Air Quality Data Reports as well as multiple user friendly functions such as Data Editor, AIRS Generation, QA Programs, Alarms, and Strip Charts. System Manager can generate the US EPA AIRNow Module for O3 and PM-2.5 Data as well as publishing data to any internet web site using our Air Quality Map program.

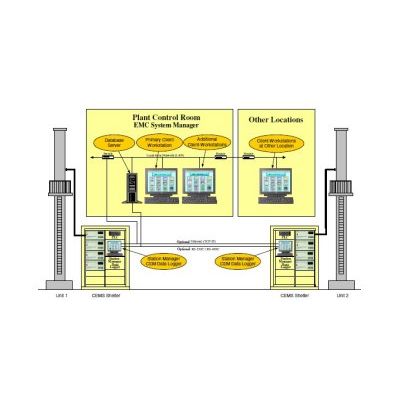

Key Features: System Manager is a Plant Control Room CEMS Display & Reporting System. System Manager retrieves data from EMC Station Manager CEM data loggers. Connects to data loggers through RS-232C/RS-485C, Ethernet (TCP-IP), or Radio Links. Extensive selection of CEMS Compliance Reports and Data Reports. Data Editor, Edit Trail Program, QA Programs, Alarms, & Trend Display. CEMS data stored in a Microsoft SQL Server, Access, or Oracle  Database. Operate Client-Workstations anywhere on the Plant LAN or WAN.

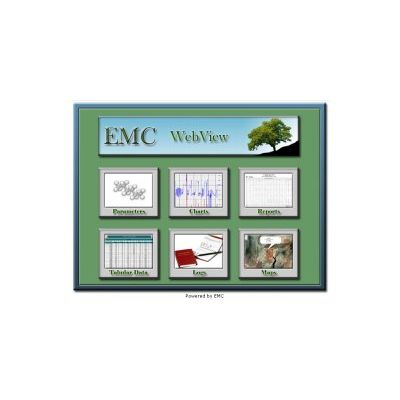

View EMC Station Manager data directly from a Web Browser with quick access to a multitude of data from multiple stations including data, power failures, and even station logs.
