Cerex Monitoring Solutions, LLC. products

Measurements: The UV Sentry is a parts per billion (ppb) to percent level chemical detection and quantification open-path UV-DOAS analyzer. It offers high-performing, time-resolved monitoring of a variety of regulated gases.

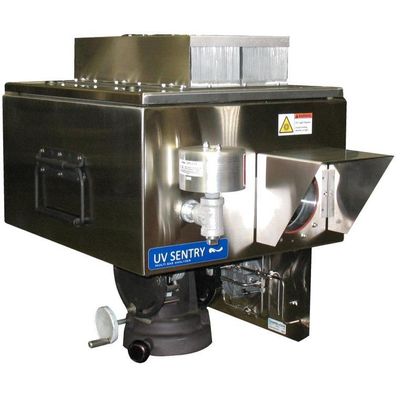

Based on years of the success with UV SENTRY, the Harsh Climate model was developed by Cerex’s engineers to meet the demand of open path analyzers that can output reliable data in the midst of extreme environmental conditions. Utilizing the same proprietary technology, the Harsh Climate model features all the benefits of the UV Sentry (Gas-specific parts per trillion detection limits, 1000+ meters of open path monitoring) inside a low-maintenance, reliable, and robust package. This model is highly recommended for Chlorine Monitoring (down to parts-per-billion MDL) and Benzene Monitoring (down to parts-per-trillion MDL).

The HazLoc UV Sentry model is suited for explosive atmospheres, meeting the standards for North American C1 Div 2 A-D HAZLOC compliance. HazLoc compliance is significantly important in environments where electrical equipment has the potential to be an ignition source for combustible or flammable compounds (such as gases, vapors, dust, fibers, and more). Click here to view all our HazLoc rated analyzers.

Used to reflect UV light transmitted by UV Sentry along the original beam bath back to the instrument.

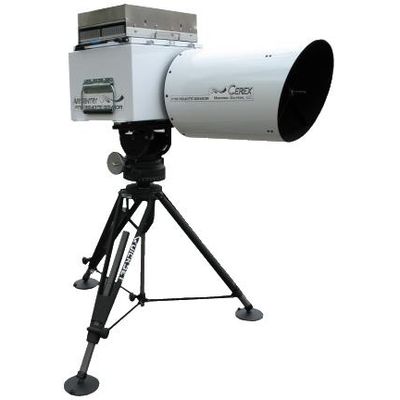

Optical, remote sensing, sub parts-per-billion (ppb) to percent level gas analyzer. The Cerex Air Sentry was the first open path FTIR to be commercialized and has continued to lead the industry with reliable performance and innovative features. It performs chemical detection and quantification of compounds using open-path, Fourier Transform InfraRed (FTIR) Differential Optical Absorption Spectroscopy (DOAS).

Most sensitive model: This unit offers our lowest detection limits with a standard 17 meter sample path. Depending on your application, the path length may be increased up to 22 meters for a 20% improvement in detection capability.

Most portable model: The smallest of Cerex’s Hound Series analyzers. The Cerex Micro Hound offers continuous parts-per-billion (ppb) level monitoring with a standard 2 meter path length.

Real-time laboratory quality measurements within a portable package. A true multi-gas analyzer, the Micro FTIR standard gas detection libraries are built for common applications, including: air toxics monitoring, hospital and anesthetic gas monitoring , and refinery monitoring. The Micro FTIR is also capable of simultaneous monitoring of more than 350 compounds in Cerex’s FTIR library. Offering true part-per-billion (ppb) detection limits in a simple to operate portable package, the cryo-cooled system can reliably deliver unattended, continuous real time monitoring of ultra low ppb concentrations of individual gas species with absorption features spanning the IR spectrum from 2 to 14 microns.

Real-time laboratory quality measurements within a portable package. A true multi-gas analyzer, the Shepherd FTIR standard gas detection libraries are built for common applications, including: air toxics monitoring, hospital and anesthetic gas monitoring , and refinery monitoring. The Shepherd FTIR is also capable of simultaneous monitoring of more than 350 compounds in Cerex’s FTIR library.
