CGH Nordic A/S products

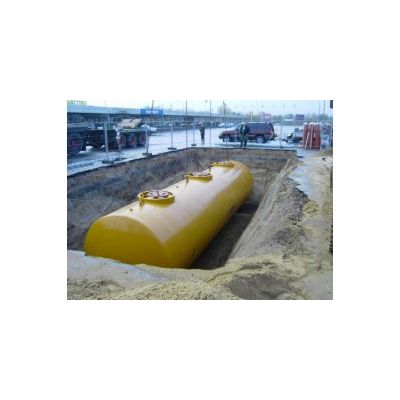

CGH underground tanks can be delivered as single skineed steel tanks or as double skinned steel tanks. In most countries it is now a legal requirement to use double skinned tanks made of two layers of steel. This is the most environmentally safe way of storing chemicals, oil and gasoline products. The tank`s double wall can be connected to an alarm system which ensures that leaks do not occur in one of the tank walls.

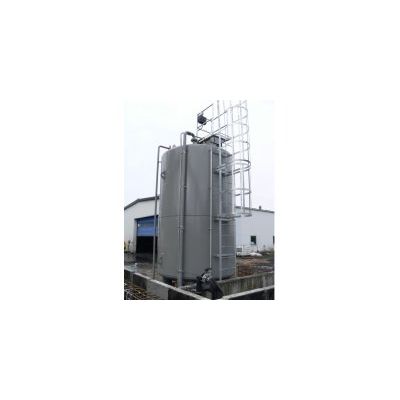

CGH vertical tanks are supplied as single skinned steel tanks or as double skinned steel tanks. In most countries it is now a legal requirement to use double skinned tanks made out of two layers of steel. This is also the most environmentally safe way of storing chemicals, oil and gasoline products. The tank`s double wall can be connected to an alarm system which ensures that leakage do not occur in one of the tank walls.

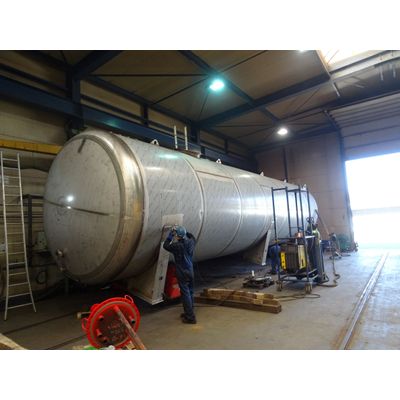

CGH offers a wide range of stainless steel tanks for storing aggressive oils and other aggressive liquids within the chemical industry. The tanks can be manufactured as CE approved pressure tanks made according to PED / 97/23, as pressure free horizontal tanks made according to EN12285-1 / 2, or as vertical tanks according to DIN6618.

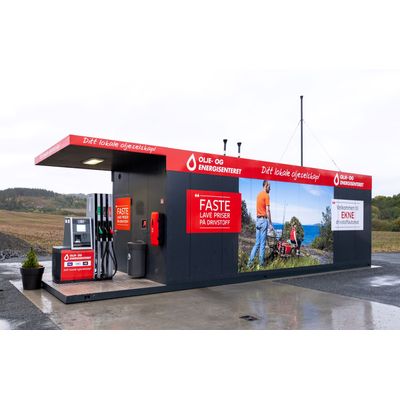

CGH can supply a wide range of tank plants. Common to the station is that they are all based on CGH aboveground tanks, and then made in different variants according to the customer`s wishes.

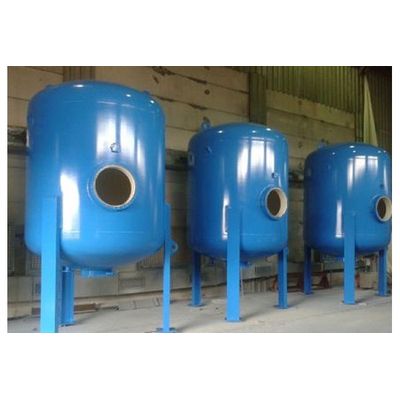

CGH can offer a wide range of water filter tanks. Filter tanks are manufactured from diameter ø1250mm and by default up to ø2900mm in diameter. We also manufacture filter tanks according to customer needs, also in special sizes and in larger diameters.

CGH offers buffer tanks for hot water. The tanks are usually produced in black steel which can be surface treated as required. The size of the tanks is adapted to the system with which it is to be connected. Depending on the plant, these buffer tanks can be supplied as pressure tanks with or without CE marking.

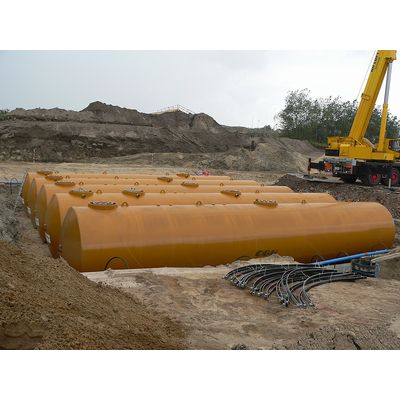

Double skinned underground steel tanks from CGH are manufactured according to European standard EN12285-1 and comes in sizes from 5 to 100 m3. The tanks are manufactured as standard in the following diameters: 1250 - 1600 - 2000 - 2500 - 2900 mm. Can also be manufactured in special sizes. Double skinned tanks are made from two layers of steel and the spacing between the two layers can be continuously monitored by an alarm system. The tanks are coated on the outside with a very strong polyurethane coating and it is recommended that the tanks are also coated on the inside and here we offer various coatings to suit your needs.

Double skinned vertical steel tanks from CGH are mainly manufactured according to standard DIN6618 and comes in sizes from 5 to 100 m3. Can also be produced according to other standards upon request. The tanks are manufactured as standard in the following diameters: 1600 - 2000 - 2500 - 2900 mm. Can also be manufactured in special sizes. Double skinned horizontal tanks are made of two layers of steel and the spacing between the two layers can be continuously monitored by an alarm system so that leaks from the tank cannot take place.
