Chroma Technology Corporation products

All transmission and blocking (OD) data are actual, measured spectra of representative production lots. Spectra varies slightly from lot to lot. Optical density values in excess of 6 may appear noisy because such evaluations push the resolution limit of low light level measurements.

All transmission and blocking (OD) data are actual, measured spectra of representative production lots. Spectra varies slightly from lot to lot. Optical density values in excess of 6 may appear noisy because such evaluations push the resolution limit of low light level measurements.

All transmission and blocking (OD) data are actual, measured spectra of representative production lots. Spectra varies slightly from lot to lot. Optical density values in excess of 6 may appear noisy because such evaluations push the resolution limit of low light level measurements.

All transmission and blocking (OD) data are actual, measured spectra of representative production lots. Spectra varies slightly from lot to lot. Optical density values in excess of 6 may appear noisy because such evaluations push the resolution limit of low light level measurements.

All transmission and blocking (OD) data are actual, measured spectra of representative production lots. Spectra varies slightly from lot to lot. Optical density values in excess of 6 may appear noisy because such evaluations push the resolution limit of low light level measurements.

This narrow-band filter set is intended for very bright fluorochromes such as BD Horizon Brilliant™ Violet 421. It is sufficiently narrow to allow spectral separation from cyan fluors such as BD Horizon Brilliant™ Violet 480, cyan fluorescent proteins and Aqua FISH probes. This set is also useful for detecting DAPI. DAPI will appear violet instead of blue.

Exciter (x) = 25mm, Emitter (m) = 25mm, Beamsplitter = 38x26mm. Designed to hold the recommended 2mm dichroics for TIRF applications. Accommodates dichroics up to 3mm for critical applications such as TIRF, structured illumination, super-resolution and image-splitting. Allows for precise alignment of dichroic angle of incidence during assembly by Chroma. **Not a standalone product. Sold with dichroic mirror installed at minimum.

Exciter (x) = 18mm, Emitter (m) = maximum thickness of 3.5mm, Beamsplitter = 18.26mm. **Recommend installation at Chroma to ensure proper gluing and alignment.

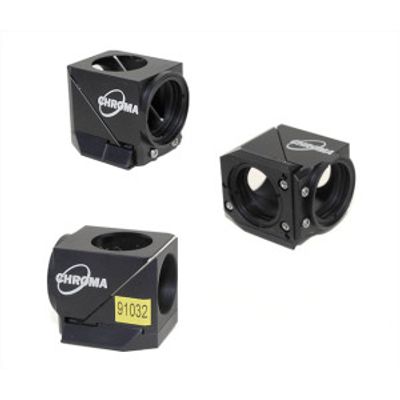

Microscopes: Filter cube mounting options are available when adding to cart. Listed price applies to sizes up to either 25mm diameter or 26x38mm, in 1mm thickness, to fit standard microscope manufacturer filter cubes.
