Chromasens GmbH products

Chromasens provides line scan cameras with maximum demands on signal quality and throughput performance. But a camera can only meet high expectations if it is combined with a suitable optical system. For area scan cameras, this task can be solved comparatively easily with standard connectors such as F-mount or C-mount. Line sensor cameras usually offer much higher resolutions in the line which means that the sensors are larger and therefore the requirements for the necessary image circle of the lens increase. Chromasens has a long experience in building high quality camera systems and therefore has a large portfolio of more than 50 lenses suitable for line scan cameras. Most of these lenses do not have a standard connection and it takes a lot of effort and experience to define suitable lenses for the application  and to determine the necessary components for connection to the focus unit and then to the cameras.

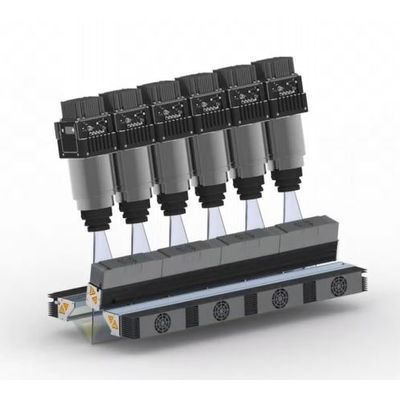

The new and innovative Line Scan Vision Platform from Chromasens is a modular and fully-scalable an "all-in-one" vision inspection solution with several cameras in a row for extra-large scan widths in high-resolution. Equipped with line scan cameras and LED line light modules as well as lenses, lens adapters, cables and a camera alignment adapter, it is built from a modular and scalable framework. It simplifies the design of a complete line scan vision system and allows machine builders and system integrators to configure a complete vision inspection system to fulfill their individual requirements. This platform is a great solution for all high-speed inspection tasks.

allPIXA neo. Fast and versatile power cube. Compact design with high performance multispectral sensor. The new allPIXA neo CMOS line scan camera delivers highest performance in mono, RGB and NIR with 4k / 6k resolution. Equipped with 10 GigE and CoaXPress interfaces it is the best solution for all high-speed and web inspection tasks. With its small size, it enables simple and scalable integration in small installation spaces. This industrial line scan camera family sets new standards for inspection. It is based on quadlinear CMOS sensors and opens up possibilities in sorting by combining multispectral RGB + NIR imaging technology.

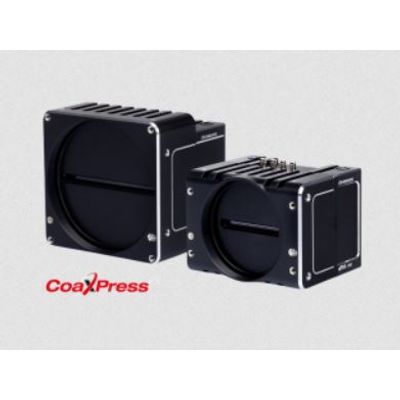

The allPIXA evo 8k CXP line scan cameras with CoaXPress interface enable the full speed of the multi-line CMOS sensor with line rates of up to 100 kHz in mono or colour. With the fast 4x CoaXPress interface, the sensor delivers CCD-quality images at high resolution. With versatile frame trigger and encoder options, the allPIXA evo 8k CXP is the best choice for all high-speed, high-resolution web and print inspection applications. For easy integration, the allPIXA evo 8k CXP comes with the intuitive Chromasens GCT software for Windows and Linux, which is compatible with all GenICam CXP frame grabbers.

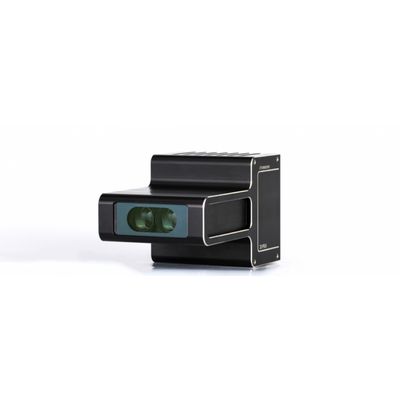

The 3DPIXA is ideally suited for fast and precise 3D measurements. With its unique combination of line scan camera technology and fast 3D stereo calculation on graphics cards, the 3DPIXA simultaneously delivers 3D data and color images. In principle, all types of illumination can be used for image capturing with 3DPIXA.
