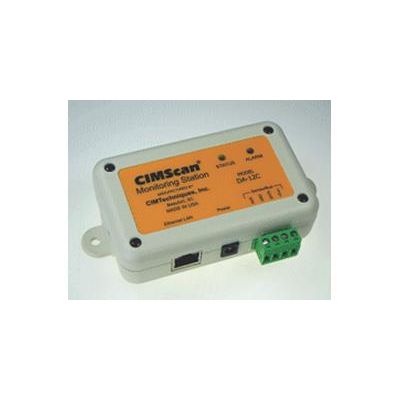

The DA-12 Monitoring Station is a small yet sophisticated remote data acquisition controller for use with the CIMScan monitoring system. The DA-12 supports the attachment of up to 16 wired or wireless sensors. The inexpensive type CT/CF/CZ wired devices connect to the DA-12 via a common 4-wire multi-drop network called the SensorBus. The battery-powered PS series wireless sensors communicate with a receiver attached to the DA-12 using the uncrowded 418/433 MHZ band. The DA-12 communicates with the CI MScan server computer using TCP/IP via direct connection to an RJ-45 Ethernet LAN port (DA-12C) or via Wi-Fi (DA-12W). It is also possible to link a DA-12C to the server via the cellular telephone network using a small Ethernet to GSM/GPRS bridge.

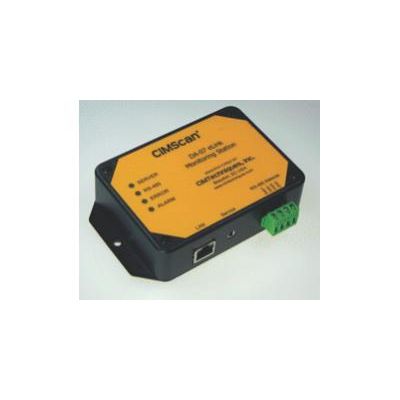

The DA-07 eLink family of remote device controllers provides CIMScan^ monitoring systems with the flexibility to monitor just about anything. Units are available for both PodNet and Modbus protocols and can manage data acquisition from up to 128 channels located in up to 16 remote devices. Both analog and digital I/O devices are supported.

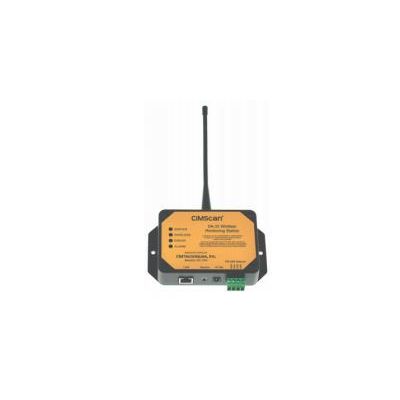

The DA-33 Monitoring Station is part of CIMTechniques` DA family of eLink remote data acquisition controllers for the CIMScan® monitoring system. Units are available for either the 902-928 MHZ or 2.4 GHz ISM bands and can manage up to fifty (50) 2-channel wireless sensors or up to sixteen (16)8 channel devices).

The CS-05 is a small, inexpensive device designed to link one or more SensorBus sensors to a CIMScan monitoring system through an eLink Controller. The SensorBus is a 4-wire, high speed, multi-drop communications network designed to connect CT series intelligent sensors to the eLink through a CS-05 adapter. Each sensor on the network has a unique serial number which is used as the address of the sensor and to identify the monitoring point in the host CIMScan system. All SensorBus sensors can be field-calibrated with each sensor containing its calibration settings.

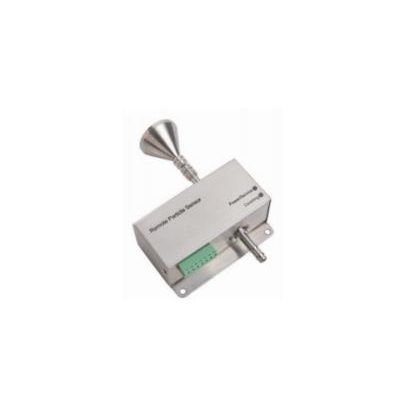

Three Remote Particle Counters are available. Models P230 and P235 sample at a flow rate of 0.1 CFM (2.83 LPM) and count 0.3/0.5 pm and 0.5/5.0 pm particles respectively. The companion P231 counts 0.5 pm and 5.0 pm particles with a flow rate of 1.0 CFM (28.3 LPM). All three counters are housed in the same stainless steel enclosure (smallest remote particle counter in the market) and comply with ISO 21501-4 and JIS B9921 standards.
