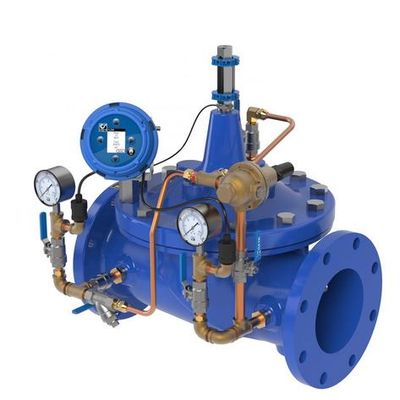

The Cla-Val Model XP2F-X35 is a Data Acquisition and Metering Package option available for any Cla-Val control valve. The XP2F-X35 is comprised of the X35 Data Module, the X117H Valve Position Transmitter, and two X141-PT Pressure Transmitter assemblies. This package turns your Cla-Val valve into an all-encompassing Instrumentation package that includes Upstream Pressure, Downstream Pressure, Valve Position, Instantaneous Flow and Totalized Flow. When deployed across the system network the XP2F-X35 package allows for insight into pressure, leakage, flow and system distribution management. The Inlet Pressure, Outlet Pressure, Valve Position, Flow, and Totalized Flow can be retransmitted to SCADA or AMI System and logged to the Internal SD Card.

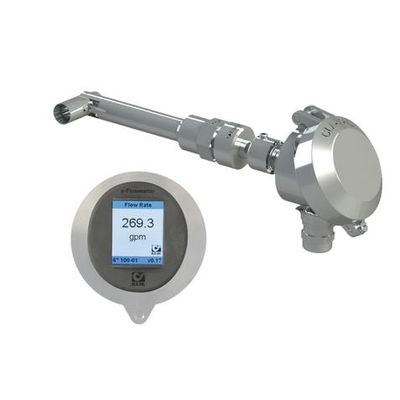

The Cla-Val Model X144D e-FlowMeter with a built-in LCD touch screen display is a vortex shedding insertion flow meter designed to be retrofitted into a Cla-Val Automatic Control Valve to provide accurate flow measurement data without the need to install a separate meter. The X144D was developed specifically for waterworks applications.

The Cla-Val Model XP2F-CV35 is a Data Logger & Flow Metering Package option available for any Cla-Val control valve. The XP2F-CV35 is comprised of the CV-Log-35 Data Logger, the e-Lift-35 Valve Position Transmitter, and two X141- PTV Pressure Transmitter assemblies. This package turns your Cla-Val valve into an all-encompassing Instrumentation package that includes Upstream Pressure, Downstream Pressure, Valve Position, Instantaneous Flow and Totalized Flow. When deployed across the system network the XP2F-CV35 package allows for insight into pressure, leakage, flow and system distribution management. Inlet Pressure, Outlet Pressure, Valve Position, Flow, and Totalized Flow are retransmitted to Cla-Val Link2Valves Asset Management for data viewing and analysis.
