Claro Inc products

Claro is pleased to offer a high quality 3rd-generation fine step screen that delivers exceptional screenings debris separation, long-term reliability, and an ultra-hygienic & odor-free working environment. Removes hair, rags, wet wipes and other debris to protect downstream equipment & processes without the possibility of screenings carry-over.

Claro is pleased to offer septage receiving stations with optional integrated wash press screw compactor, fully-automatic or manual rock trap system, hygienic bagger, & hauler access metering/billing systems configured to suit a wide range of application requirements. Based on proven fine step screening technology, this custom-sized septic sludge receiving unit delivers exceptional screening capabilities, long-term reliability, and an ultra-hygienic & odor-free working environment. Exceptionally effective on high DS & high grease applications. An excellent solution for wet wipes, high grease & high solids content influents including Fats, Oils, & Grease (FOG) stations. Also effective for portable toilet and national park septage applications that contain trash & large debris. Proven installation & maintenance-longevity history.

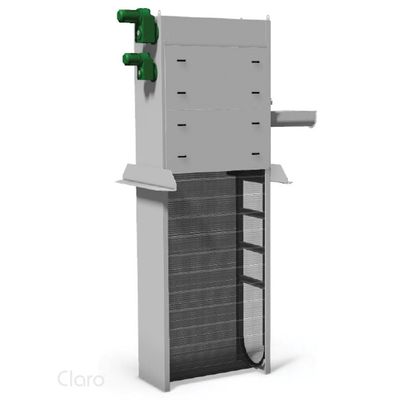

Claro is pleased to offer the Center Screen perforated band fine screen designed for water & wastewater screening applications that require an exceptionally accurate and high level of debris capture with no possibility of screenings carry-over. The Center Screen is ideally suited for the protection of sensitive process equipment such as MBR membrane technologies and floating & fixed media. It has been applied in water & wastewater applications and can be fitted with stainless steel perforated panels or a mesh filter band. The unit has significantly more filter media cross-sectional screening area than perpendicular-to-channel perforated-plate designs and yields higher flow-through capacity, lower headlosses, thicker ‘screenings filter matting’, and lower runtimes for better separation, longer equipment components life & less energy use.

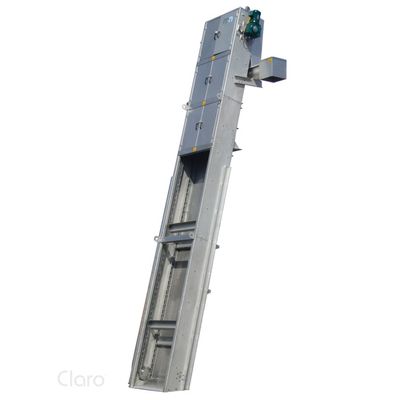

Claro is pleased to offer the MultiRake MRS, an automatic, self-cleaning mechanical bar screen designed to remove screenings debris in a variety of applications including municipal wastewater headworks, pump stations, potable water intakes & other contexts. Proven installation/reliability history.

Claro is pleased to offer an innovative fine filter perforated drum-type screen that can be installed in a channel or in its own tank. This unit’s unique design provides the largest filter surface of any channel-mounted drum screen design, which enables micro sieving as well as fine screening. Specially-developed for the protection of very sensitive process equipment and for a very compact footprint. Influent or process water is filtered from the outside front, bottom and rear of a filter drum that is positioned perpendicular to the influent flow either in a channel or in a free-standing tank. Screened liquid exits from the inside of the drum, which offers an absolute separation between the dirty and clean side of the filtration media with no possibility for material carry-over.

The Claro Drum Screen is a simple & robust screen well-suited for a variety of pumped municipal wastewater, potable water & industrial applications. Influent or process water is filtered from the inside of a moderately inclined filter media drum with an absolute separation between the clean & soiled filtration side. Interior flights convey the separated solids via the drum’s rotation to an integrated transport conveyor and/or wash press.

The Claro Spiral Conveyor Screen is a simple screening option well-suited for low-concentration flows & narrow channels. The spiral conveyor screen separates, washes & dewaters debris from municipal wastewater influent flows. A rotating spiral with a radial brush cleans a perforated or slotted screening filter basket. Adapted for either channel or free-standing stainless steel tank applications.

Claro is pleased to offer a high-quality wash press screw compactor for the effective washing, dewatering, compaction, transport & automatic hygienic bagging of screenings. Screenings are well-cleaned of organics, dry, diminished in disposal volume, & deposited into an optional hygienic bagger that automatically unfolds into a receiving bin. Robust & versatile construction. Fully-enclosed & odor-controlled. Standard capacity sizes & configurations are available to meet a broad range of application scenarios. Thousands of installations. Screening press compactor also available without washing feature.

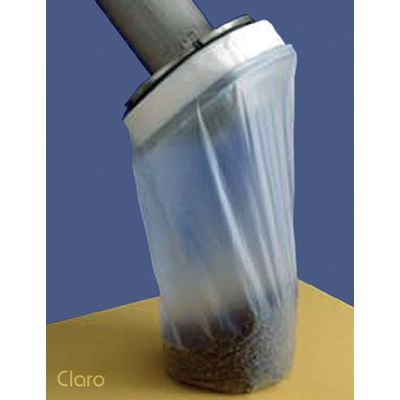

Claro provides hygienic baggers that isolate operators from wastewater screenings, sludge or other reject materials in a continuous, tubular plastic bag that automatically unfolds into a standard receiving bin. Favored by facility operators, the bagging unit prevents contact with reject materials & promotes a hygienic, odor-controlled working environment.

Claro specializes in the design & supply of complete, turn-key shaftless spiral conveyor systems including screening & grit removal applications. Our engineers have played a major role in the evolution of shaftless spiral technology & have implemented reliable, innovative, & cost-effective solutions for 30+ years.
