CM Aqua Technologies products

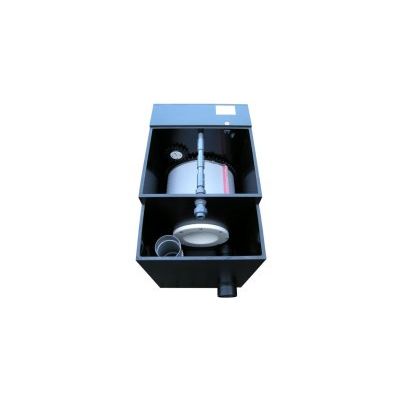

The HEX drum filter series sets a new standard in drum filter technology. They are equipped with the patented HEX® BeeCell filter panels for even more efficient removal of particulate material.

Flow through:15 m3/h. Dimension: Length: 780 mm. Width: 490 mm. Height: 720 mm. Mesh size: Standard: 60 pm. Other: 40 pm.

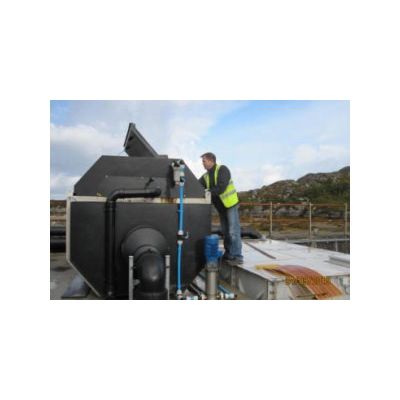

The HEX drum filter, with the unique HEX beecell filter panels for higher capacity and the new DDGW drive, which eliminates a classic maintenance issue for many fish farmers. Extensive use for non-metallic engineering, makes the HEX absolute best in corrosive waters. HEX filter have been installed in many places as Well boats, sealice barges, RAS and on traditional fishfarms.  The innovative HEX Drum Filters all have the unique BeeCell HEX filter panel design for an optimal filtration process. The idea to use the design from Mother Nature came from Chile, now used worldwide featuring higher capacity and more efficient filtration than ever seen before. The BeeCell HEX filter panel has a hexagonal cell structure that ensures optimal removal of suspended solids, increases the net open area and last longer, compared to other structures. Each filter panel is 400 x 1200 mm for easy installation and replacement.

Sludge treatment by AL-2 AQUA belt filte. In fish farming, there is always sludge that needs to be treated, in which the volume must be considered as local legislation in many countries enforces environmental fees etc, so it is an important economic aspect to keep the amount of sludge to a minimum.

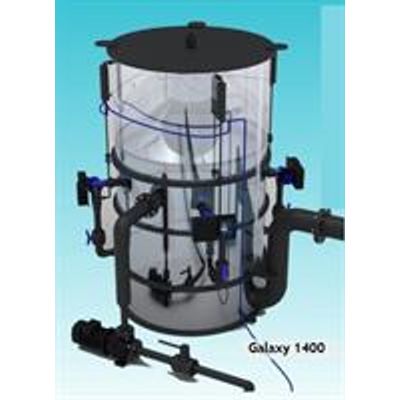

With a highly efficient Ventruri that works in both Freshwater and Saltwater. Prepared for Ozone ejection,boosting the efficiency. Galaxy 2000 only use 3 kW for the foam product.

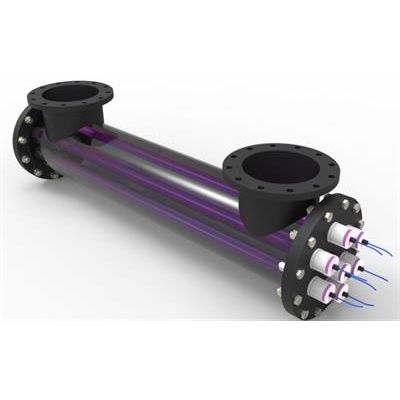

With the Helios UV, CM Aqua offers an optimal disinfection solution, based on its intimated knowledge on disease carrying agents.
UV radiation at 254 nm is an efficient way to disinfect water, however, particles in the water can create shadows and therefore a cost effective particle control upstream is needed. CM Aqua very othen deliver the combined solution, ensuring you get the kill, without overkill. Helios are made in PE / Duplex / Titan and extreem duable in saltwater and other corrosive water.

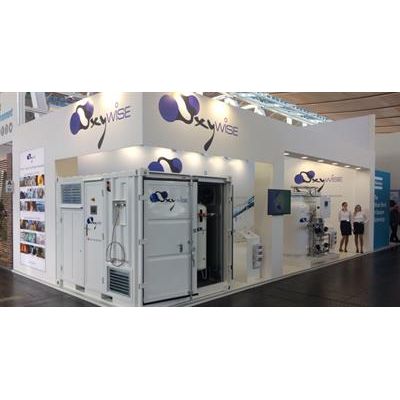

The Oxywise PSA generator, a new generation of oxygengenerators for on-site oxygenproduction. It provides a low cost and low energy solution for fish farms, well boats, etc. It features a new concept with a very easy service of valves and a useful touch screen control box.

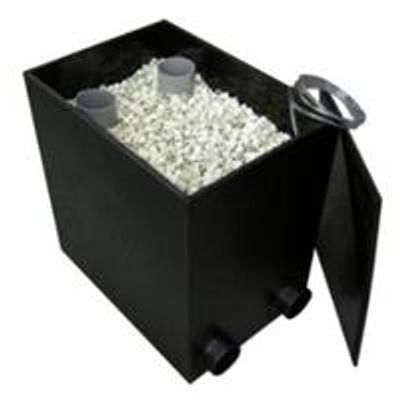

The biofilter is to be connected downstream of the mechanical filtration. Bacteria colonies in the trickling filter media convert the fish-toxic substances ammonium, ammonia, and nitrite to the less toxic nitrate. Important for the proper functioning of the biofilter is good ventilation and a large surface area for the trickling filter media. Please note that the biofilter needs several weeks before it reaches its full capacity. Our biofilter BioKa 600 is capable of degrading up to 1 kg of feed per day. If this amount is still too small for your system requirements, several BioKa 600 filters can easily be connected. Bioka 600 is filled with our biological trickling media BT20 and pre-loaded with the necessary bacteria. Oxygen is injected by a NEWBUBBLE aeration system.

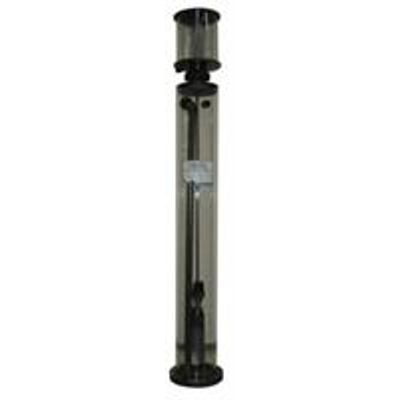

Skimmer Pluto For aquaria volume:2.000-5.000 l (dependig on density and species). Height (BH):100 cm, 170 cm & 200 cm plus scumtank. Ø Pipe: 250 mmScum tank height:~ 430 mm. Ø Scum tank:250 mm. Ø Scum pipe:90 mmNeeded space:     40 x 60 cm. Volume:~ 45 l/m. Flow through max.: 3.500 l/h. Ø Inlet: 25 mm. Ø Outlet:40 mm. In- & Outlet height:100 mm below height BH. Bubble generator: dispergartor for BH 100 cm & BH 170 cminjector for BH 200 cm.

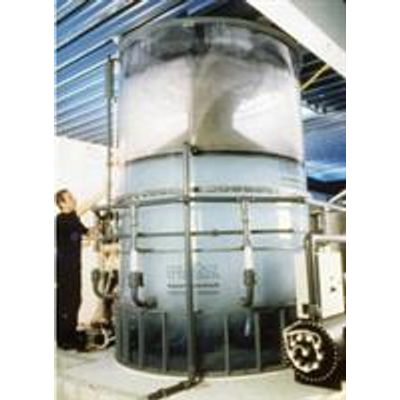

Galaxy 950: For aquaria volume: up to 100.000 liter. Height: 3,10 m. Pipe: 0,95 m. Needed space: 2,00 x 2,00 m. Weight incl. water: 2.300 kg. Floor loading: ~ 0,325 kg/cm2. Volume: ~ 1.500 liter. Flow through: ~ 40.000 - 60.000 l/h. Air intake: > 6.000 l/h (injector). Injector nozzles: 3 pes. Injector pumps: 1 pcs. max. outet height: 2,20 m . Outlet: 110 mm.
