X-Ray Modules - Industrial X-ray Modules

Comet - Transmission

With its 15 W of transmission target power, you get a bright and highly resolving source for quick acquisition at high magnification. Proven Comet technology warrants stable operation at 160 kV allowing for the inspection of even complex multilayer parts. True X-ray Intensity - TXI, helps to deliver constant picture contrast resulting in a flicker-free acquisition that ensures the integrity of your inspection results. Flexibility for a wider range of operation. You can’t quantify what you can’t see: With the Comet FXE, you can detect, identify, and measure features from a few millimeters to 2 μm. Combined with a high-performing detector, this micro focus X-ray tube delivers superior analysis capability with a wide range of detail detection. Our modular design facilitates quick replacement of critical parts, making the FXE’s total cost of ownership among the lowest in its class. You’ll never have to worry about running the tube at its limit, as you can always replace the wear parts - even though the tube is designed to last well beyond the expected life cycle of the module. Our user-friendly interface gives quick access to all major functions, including kV, tube current or target power, start-up routines, and focus adjustment. The Comet FXE is built to accelerate workflow creation for both you and your end-user.

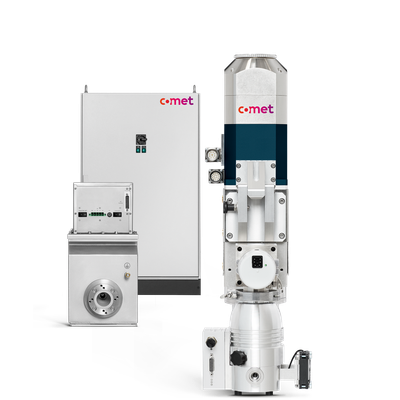

Comet - Industrial X-ray Modules

With its 320 W of tube power, the Comet FXE is a sufficiently bright source for quick acquisition in 2D and 3D applications. Proven Comet technology warrants stable operation at 225 kV allowing for the penetration of even dense parts. True X-ray Intensity - TXI, helps to deliver constant picture contrast resulting in a flicker-free acquisition that ensures the integrity of your inspection results. The Comet FXE allows you to detect, identify and measure features from millimeters to 4 μm and delivers superior analysis capability. With a modular design for quick replacement of critical parts, the FXE offers a low total cost of ownership and is designed for long-term usage. Its user-friendly interface provides quick access to all major functions, facilitating a faster workflow. Key specifications include 225 kV nominal voltage, stationary mobility, max resolution of 4 μm, max power range of 32 - 280 W, and minimum FOD of 6.75 mm.

X-Ray Systems

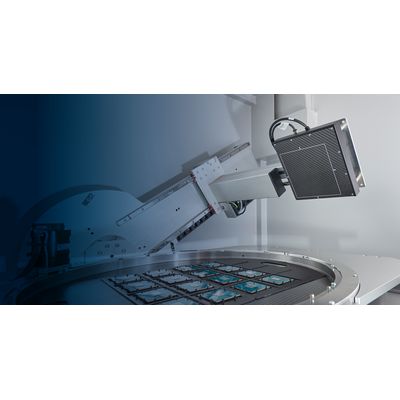

Comet - Submicron 3D X-ray for Advanced Packaging

The CA20 is designed to deliver superior 2D & 3D images in the highest resolution, it allows the fastest inspection of micron-sized details - and helps cut time to market for complex 3D ICs. The semiconductor sector is a speed-driven industry. In the race for innovation every day counts. As an inspection system specifically developed for the challenges of complex 3D ICs in Advanced Packaging, the CA20 helps you keep the pace - and to stay ahead of the game. The CA20 enables an accelerated verification of new packaging process node prototypes: The faster you find the root cause of ramp-up issues and fix them, the faster you’ll reach the desired yield - and, thus, the Return-on-Invest (ROI). While inspections using destructive methods can take weeks, 3D X-ray gives your R&D engineers results they can work with right away. As a non-destructive testing (NDT) system, the CA20 supplies you with crystal-clear 3-dimensional images of nano details inside your ICs within minutes. Monitor your interconnects process, find flaws fast and feed your insights back into the process. 3D X-ray produces high-resolution 3D volumes that allow manufacturers to measure and inspect bumps and identify smallest defects in record time. See critical defects such as non-wet, head-in-pillow or bump shift and determine the stand-off height to monitor die tilt or warping like never before.
