COMET S.p.A. products

All models are with Built-in pressure regulator. Female suction coupling G 1/2 - Delivery coupling M 22 x 1,5. Code: 6501 0002 - 6501 0001 - 6501 0004 - 6501 0003 - 6501 0017. Suction coupling Garden Hose type with filter - Delivery coupling 3/8” NPT. Code:  6501 0015 - 6501 0018 - 6501 0025 - 6501 0005 - 6501 0006 - 6501 0008.

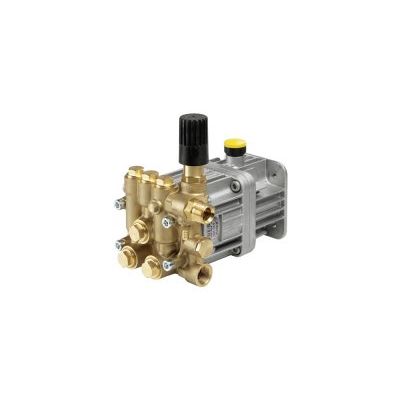

Pump body: anodized aluminium alloy. Symmetric crankcase featuring top and bottom ixing for easy right to left shaft conversion. Head: brass with chemical nickel plating. Camshaft: steel. Splash lubrication. Shaft support bearings oversized for long duration. Connecting rods: special antifriction light alloy. Guiding piston: stainless steel. Solid ceramic plungers. Suction/delivery valves in stainless steel and acetal resin. Seals: high dependability. Versions in direct drive mount with shaft positionable on the right or left or through shaft.

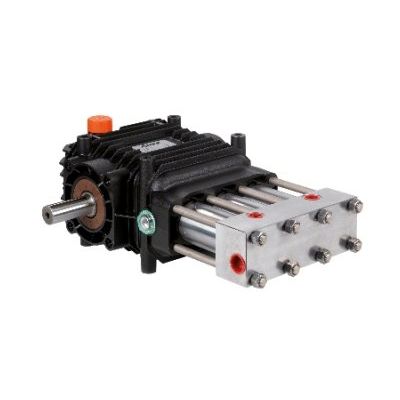

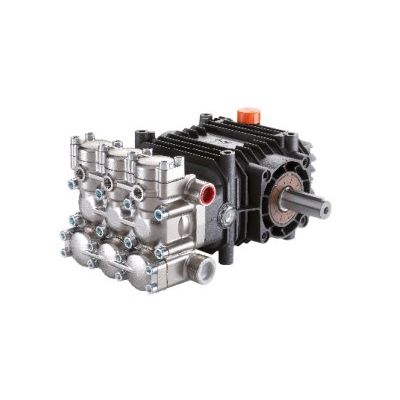

Pump body: anodized aluminium alloy Symmetric crankcase featuring top and bottom ixing for easy right to left shaft conversion Head: stainless steel Camshaft: steel Splash lubrication Shaft support bearings oversized for long duration Connecting rods: special antifriction light alloy Guiding piston: stainless steel Solid ceramic plungers Suction/delivery valves in stainless steel Seals: high dependability Versions in direct drive mount with shaft positionable on the right or left or through shaft.

Delivery coupling 3/8 NPT. All models are right hand p.to (left hand p.to on request). On request: available with other connection . Option: base (h. 34 mm) code 5011 0184.

Delivery coupling M 22x1,5. All models are right hand p.to (left hand p.to on request). On request: available with other connection. Option: base (h. 34 mm) code 5011 0184.

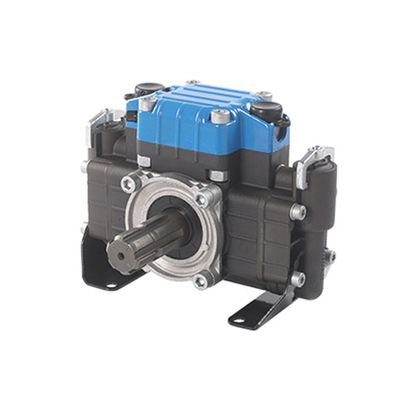

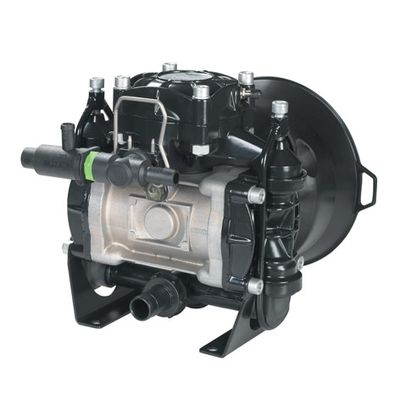

Configuration: 2 diaphragms in NBR (Desmopan® or Viton available on request). Parts in contact with spray liquid: anodized aluminium. Standard: pressure accumulator. On request: safety valve and PTO protection.

Configuration: 2 diaphragms in NBR (Desmopan® or Viton available on request). Parts in contact with spray liquid: anodized aluminium. Standard: pressure accumulator. On request: safety valve and PTO protection.

Configuration: 2 diaphragms in NBR (Desmopan® or Viton available on request). Parts in contact with spray liquid: plastic coated aluminium. Standard: pressure accumulator. On request: safety valve and PTO protection.

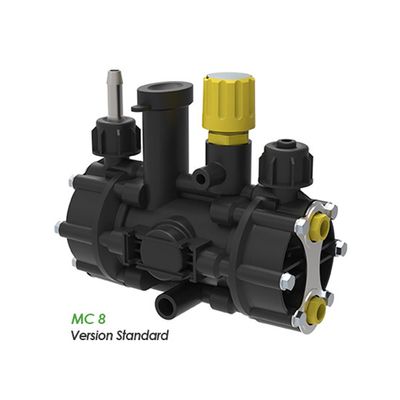

Configuration: 2 diaphragms in NBR on standard versions (Desmopan® on request), Viton on acid versions. Parts in contact with spray liquid: AISI 316-L stainless steel, polyamide (standard versions), polypropylene (acid version). Standard: regulation valve. Can be fitted directly to electric engine and to gas engine with reduction kit.
