Concept Technostructures products

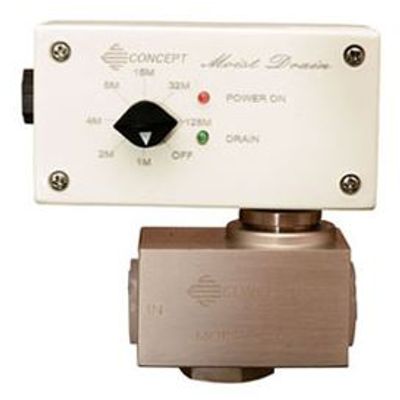

Model MOIST DRAIN-SOX Is Doslgnod to Romovo Condonsalo  from Comprossod-AIr Systems. Most Sultablo (or Installation. Drip logs. Moisture Soparators etc. Valvo has facility to drain manually on power failure.

Model EDV-701 is Designed to Remove Condensate from Compressed-Air Systems. Most Suitable for Installation. Drip legs. Moisture Separators etc. Valve has facility to drain manually on power failure.

Model C354. Item Code SV35408ALCC5W. Brand CONCEPT. Inlet/Outlet Port 1/4 inch BSP(F). Type NO (3/2 NO). MWP 35 bar
Orific 0.8 mm. Supply 240VAC, 50Hz. Coil Sealed with Din Connector (DIN 43650B), with 5 Feet cable, 0.75 Sq. mm. Body Material Aluminum Alloy. Mounting Hole Yes.

Model C354. Item Code SV35408ALCC5W. Brand CONCEPT. Inlet/Outlet Port 1/4 inch BSP (F). Type NO (3/2 NO). MWP 35 bar
Orific 0.8 mm. Supply 240VAC, 50Hz. Coil Sealed with Din Connector (DIN 43650B), with 5 Feet cable, 0.75 Sq. mm. Body Material Aluminum Alloy. Mounting Hole Yes.

MS having with Powder Coating. Moisture Removal upto 96%. Maximum Working Pressure 16 Kg./cm2. Maximum Working Pressure 180 C. Presser Drop Less then 1 psi. Element Glass Borosilic.no 3 micron. Manual Drain / Auto Drain / Float Drain (Optional).

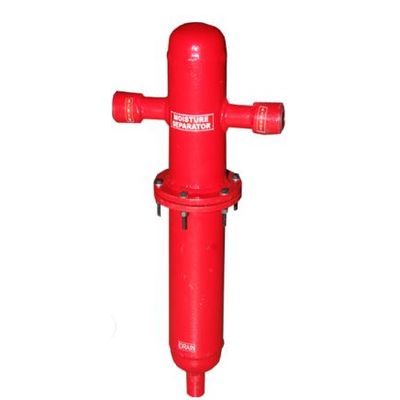

The Design of Concepi Moisture Separator utilize the principal of centrifugal force to Separate of entrained Moisture and Drain. It to the better re-service.

Compressed air is normally saturaled with moisture in the form of water vapour as well as aerosol, and this needs to be removed to prevent problems further downstream at the point of application. Conquest`s water separator is specially designed based on the proven centnfugal separation to remove up to 99% of the water aerosol in compressed air. Working in conjunction with other compressed air treatment products like filters, after-cooler and dryers, the water separator is a very cost effective way of further enhancing their efficiency by ensuring that bulk water generated in the compressed air is properly separated and discharged from the system.

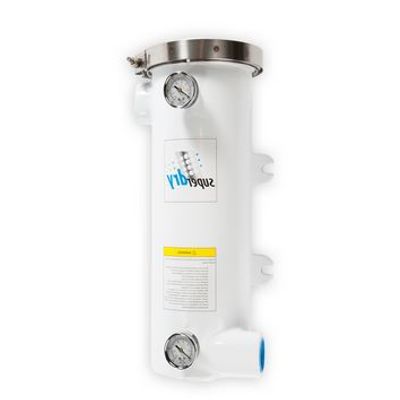

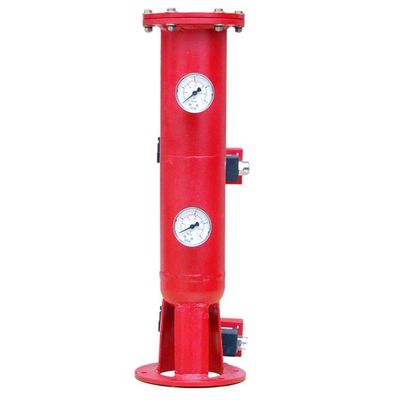

The compressed air flow through the bottom of the dryer and distributed uniformly and passed through the desiccant bed. The moisture is drained at the bottom either with manual drain w automatic drain valve (optional). The desiccant adsorbs moisture, the color of desiccant changes from blue to Pink/White. The color of desiccant will change gradually from blue to white as desiccant gets saturated. The full desiccant bed will reach to its maximum drying capacity and must be either changed or charged/ regenerated.

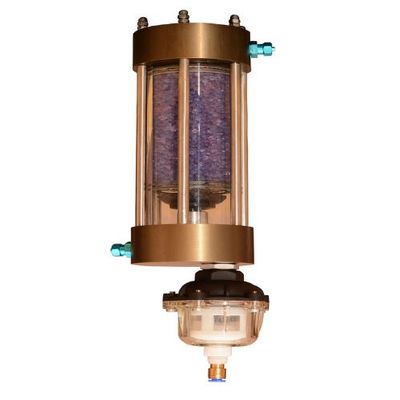

concept introduce Air Tool Dryer for Compressed Air Model ATD.

The world`s highest effidency and duty. Desiccant compressed air dryer at affordable prices.
