Control Instruments Corporation (CIC) products

The Model 650 FID is a high-temperature flame ionization sensor that continuously measures total hydrocarbon concentrations. Industrial Design: Rugged industrial strength assembly suitable for continuous use in harsh environments. Direct Mount: Design eliminates heat-traced sample lines & allows the fastest response time. Fully Heated: To avoid condensation during sampling, the entire sensor pneumatic assembly is heated up to 200°C. Reliable: Integrated air-aspirated sampling system does not require pumps. Accurate:High linearity assures precise readings over the entire monitoring range.

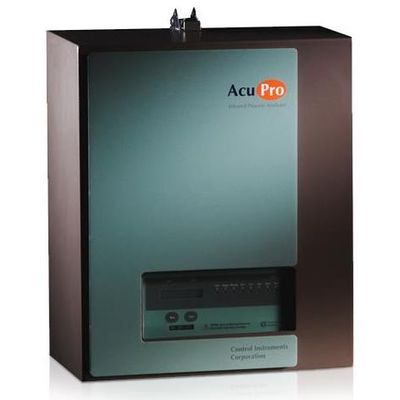

The AcuPro is an industrial strength analyzer for continuous measurement of flammable and some combustible vapors, from 0% to 100% of the Lower Flammable Limit (LFL/LEL).

Operating Temperature: 270°C - 518°F. The Model SNR675 is an industrial strength assembly consisting of a heated flame cell and an integrated controller that continuously measures total flammable vapor concentrations from 0 to 100% of the Lower Flammable Limit (LFL) range. Optional modifications allow the SNR675 to sample low oxygen and inert atmospheres.

Operating Temperature: 120°C - 248°F. The Model SNR672 is an industrial strength assembly consisting of a heated flame cell and an integrated controller that continuously measures total flammable vapor concentrations from 0 to 100% of the Lower Flammable Limit (LFL) range. Optional modifications allow the SNR672 to sample low oxygen and inert atmospheres.

Operating Temperature: 60°C - 140°F. The Model SNR671 is an industrial strength assembly consisting of a heated flame cell and an integrated controller that continuously measures total flammable vapor concentrations from 0 to 100% of the Lower Flammable Limit (LFL) range. Optional modifications allow the SNR671 to sample low oxygen and inert atmospheres.

The CalorVal BTU Analyzer continuously measures the heating value (Calorific Value) of gaseous streams of industrial processes. Real time: Direct measure of calorific value. Fast: Less than 3.5 seconds cell response time. Universal: Highly uniform response to a wide variety of combustibles. Continuous: Ongoing measurement, not batched. Reliable: Not poisoned by process contaminant, water, corrosives, or organo-metallics. Fully Heated: The entire analyzer`s pneumatic assembly is heated which prevents condensation.

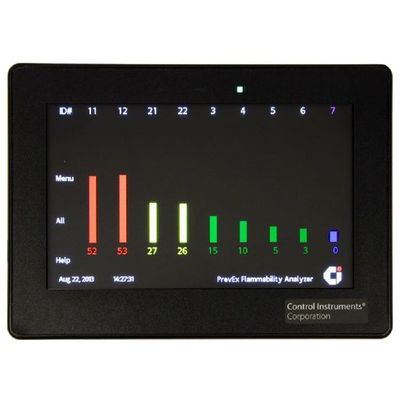

The touch screen operator interface, allows the operator to view, access, and control multiple remote analyzers from a convenient, central location. It is a panel-mounted, multi-page interface device, with touch-sensitive graphics for easy operation. It allows an operator to acknowledge and reset alarms, and through password protection, calibrate, read and adjust the settings of each analyzer.

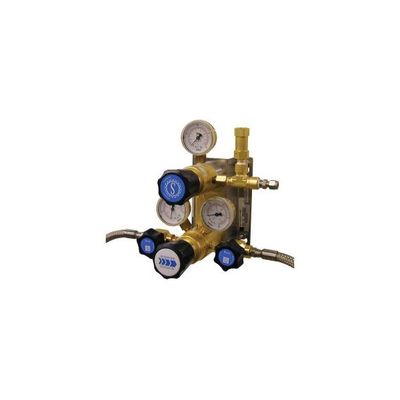

The Fuel Changeover System is a wall mount dual-input, auto-changeover, gas control and pressure regulation system. It operates so that when a primary fuel tank is depleted, the system automatically begins to draw from a secondary tank to ensure an uninterrupted supply of fuel to the analyzers.

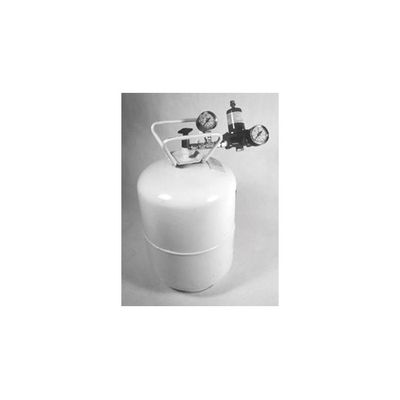

Our calibration equipment includes a calibration kit & cylinder for calibrating analyzers and sensors.
