Core Sensors LLC products

The CS14 Wet/Wet Differential Pressure Transducer is designed for various applications including filtration and tank level monitoring. A 316L SS oil filled sensor element provides excellent stability over a wide operating temperature range while offering corrosion resistance against various liquids and gases. The compact designs makes it a perfect solution for differential measurement applications in confined spaces. Configurable options include differential pressure ranges up to 300 PSI, various voltage and 4-20mA loop powered output signals and both male and female 1/4″ NPT process connections.

The CS54 Non-Incendive Differential Pressure Transducer is a high strength sensor designed for differential pressure measurements of liquids and gases in Class I, Division 2 hazardous locations. A 316L SS oil filled sensor element provides excellent stability over a wide operating temperature range while offering corrosion resistance against various liquids and gases. Differential pressure ranges up to 50 PSI are available with 1/4″ MNPT or FNPT process connections.

The CS84 Intrinsically Safe Differential Pressure Transducer is a high strength sensor designed for differential pressure measurements of liquids and gases in Class I, Division 1 Intrinsically Safe locations. The CS84 features an all welded stainless steel construction for a minimum IP65 rating. A 316L SS oil filled sensor element provides excellent stability over a wide operating temperature range while offering corrosion resistance against various liquids and gases. Differential pressure ranges up to 50 PSI are available with 1/4″ MNPT or FNPT process connections. A wide range of configurable options make the CS84 a versatile pressure transducer that can be designed to operate in some the harshest conditions.

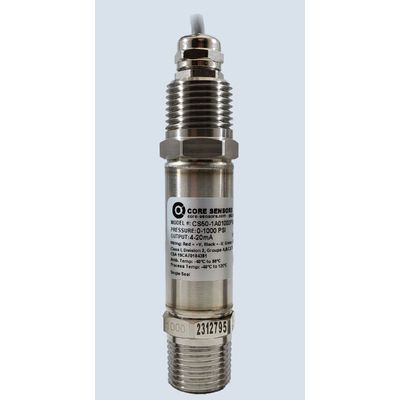

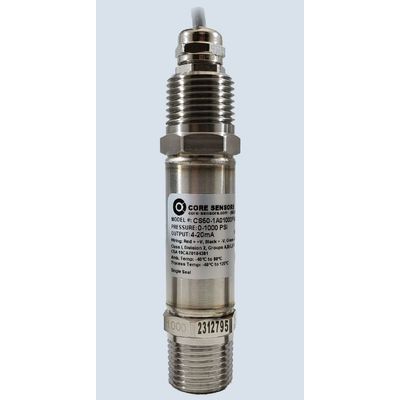

The CS50 Non-Incendive Pressure Transducer is a high strength sensor designed for use in Class I, Division 2 hazardous locations. The CS50 features an all welded stainless steel construction, offering a minimum IP65 rating. A wide range of configurable options make the CS50 a versatile pressure transducer designed to operate in some of the harshest conditions. The CS50 is an excellent solution for applications such as natural gas compression, hydrogen compression and storage, and process control instrumentation.
