Deepinfar Ocean Technology Co., Ltd products

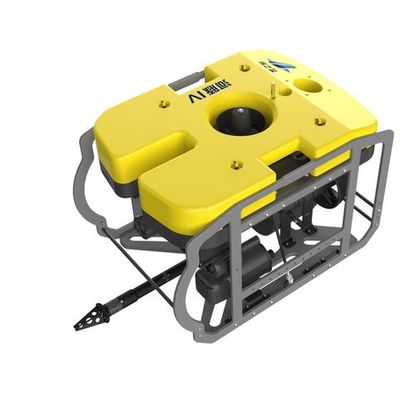

HaiTun, which is based on the eight-thrusters system, is a kind of light operating underwater robots. Within 300m work depth, HaiTun is feasible to most of underwater detection and operations. Because the open architecture, it is easy to redesign the feasible sensors systems when the requirement change. In addition, the powerful dynamic system reduces the flowing resistance, and improves the flexibility and stability of ROVs. For this series of ROVs, one of the important achievements is that the maximum payload of HaiTun is higher. Therefore, with ultra-short baseline, DVL, attitude sensors and other sensors systems, HaiTun has higher adaptability and practicability than other ROVs.

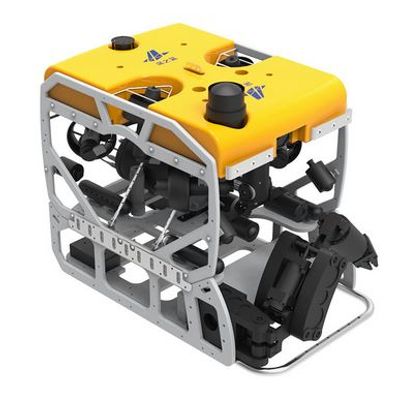

JiangTun â…£ is the new achievement of the Tun series. This system consists of two vertical thruster and four vectored horizontal thrusters. Compare to the previous generation, the system is more compact, more powerful and better expansibility.

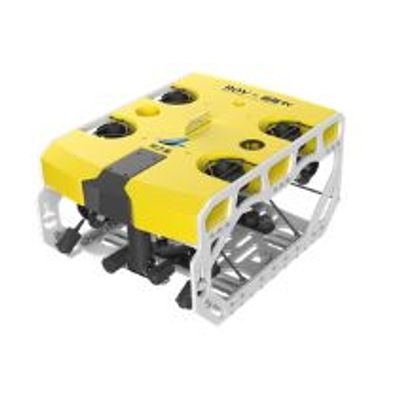

HeTun â…£ is a kind of underwater observation robots. It’s small and easy to control, and it is designed for separate control operation by a couple of workers. Although it is just a primary model of ROVs, most of functions which are loaded on advanced ROVs are available on Globefish â…£. The dynamic system of HeTun â…£ is powerful. The propulsion of a single thruster is up to 18kg. Moreover, the underwater HD digital camera, which offers 3x optical zoom, with particular digital image processing algorithm are useful to obtain high quality underwater videos and images. In addition, a variety of attachments are available on HeTun â…£. Therefore, it has high feasibility to various projects and situations.

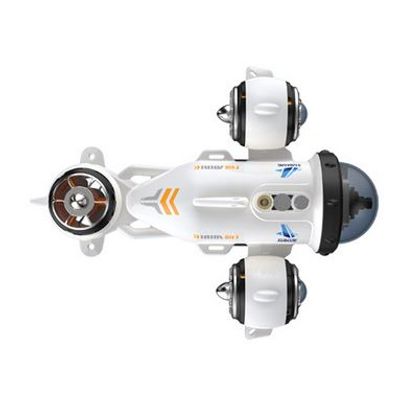

White Shark Minis are micro underwater observation vehicles. They are easy to control, and they are small and flexible. In addition, with the special underwater propeller which is one of our company`s patents, White Shark Minis have high kinematic performance. Moreover, the model of the underwater propellers is easy to reassembled. Furthermore, by wireless terminals, such as cell phones and PCs, it is easy to control and get the underwater images. White Shark Minis are portable devices, and both 220V AC systems and external battery packs are available for these robots.

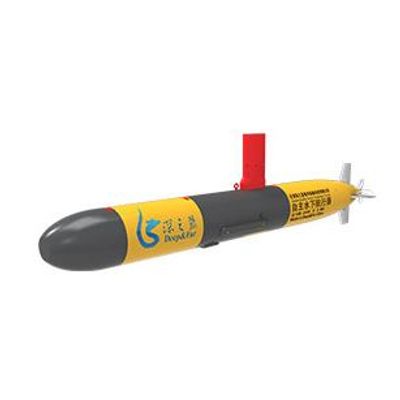

Orange Shark are completely function modular AUVs. The optimum components scheme of AUVs is advanced and proven. The hydrodynamic model consists of three parts: hull, cruciform rudder and single propeller. The model decreases the resistance and improves the performance of low speed state. In addition, Orange Shark has autonomous intelligent cruise systems which is based on GPS, fibre compass, pressure transducer and DVL. Therefore, Orange Shark has high feasibility in a various missions and situations.

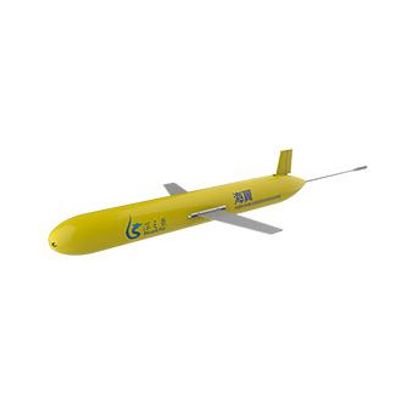

The new model of UG is a kind of mobile underwater observation vehicles, and it is based on buoy technology, submersible buoy system and underwater robotics. Without external dynamic systems, the UG works with buoyancy-driven system. Recently, the UG is applied wider in underwater detection areas because its low noise, low energy, low cost, easy operation, long endurance and wide range of operation. The core functions of UG include marine environment detection, self-gliding control, self-measuring path tracking, measurement data storage, and remote communication and control, etc.

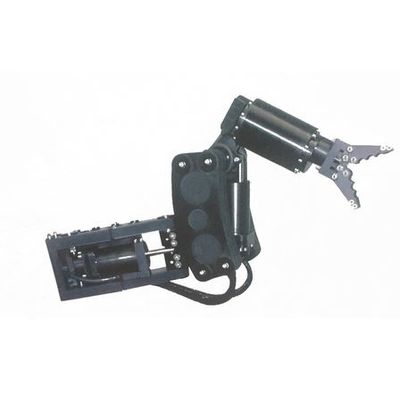

The manipulator with 5 degrees of freedom is a useful attachment of ROV. In water, it’s weight is only 4kg, and it can lift 10kg up. This manipulator is original design of our company, and it is a great development of manipulators in China.

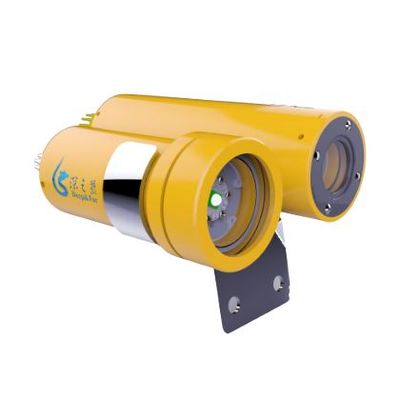

Parameters of the HD color camera: 2 megapixels, 1080P, and the range of focal length is 2.8mm ~ 12mm. The standard illumination system: powerful highlight LEDs.
