Define Instruments Inc products

The G3 IoT Gateway receives direct input signals from sensors, and transmits the data to our Define Cloud Dashboard. It has all the advanced control features of a PLC, with the added benefit of being able to receive control commands from the Define cloud platform. As part of our complete, end-to-end IoT solution, it transforms data from your OEM equipment into prioritized action lists.

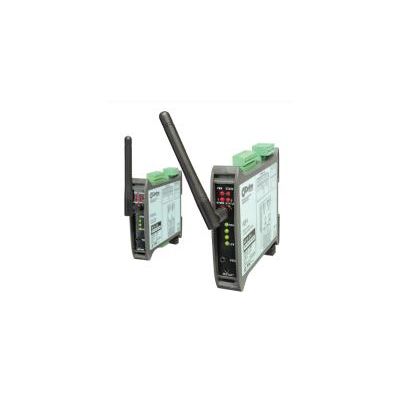

Wirelessly transmits signals from point to point. Accepts 2 inputs from a range popular signal types and outputs 2x 4-20mA.

The Bridge Key enables WorkBench or ToolBox to communicate with your product, providing a simple interface for setting up I/O channels, setpoints, and totalizers. This reusable programming kit is compatible with all USB-programmable Define Instruments products. It contains the hardware required for PC connection to your compatible device.

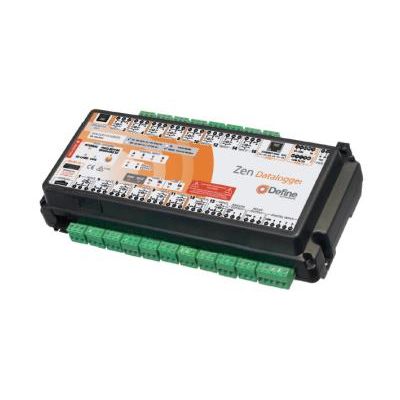

Enables sophisticated monitoring, control and data logging of up to 16 input signals from a variety of sources. Easy DAQ and onboard data logging. Get all your data acquisition (DAQ) requirements fulfilled with the Zen Datalogger. It logs data onto a 1GB micro SD card, so you can physically take your data with you or route it to other hardware.

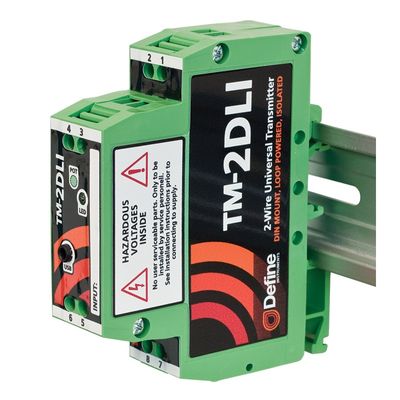

The TM-2DLI accepts one of several input signal types and generates a 4-20mA or 20-4mA output. This versatile 2-wire transmitter accepts a range of standard input types, and outputs a 4-20mA loop. USB programming is hassle free, and takes less than a minute using Define ToolBox.

The Javelin is a compact, loop-powered transmitter with full galvanic isolation between input and output—eliminating noise, ground loops, and EMC issues. With universal, software-selectable inputs (mA, V, mV, RTD, TC, NTC, and potentiometer), it’s built for a wide range of industrial signal conditioning tasks—all in a slim, 0.5″ DIN rail mountable case. Setup takes less than a minute via Define ToolBox—no input signal or power supply needed.

The TM-2HL accepts a temperature RTD input signal and outputs a 4-20mA signal. The TM-2HL is a DIN B style head mount transmitter that accepts a 2-wire or 3-wire PT100/1000 input signal, and converts it to an industry standard 4–20mA output.

The Merlin universal input digital indicator offers exceptional versatility, accepting a wide range of analog inputs, including process, temperature, flow, frequency, and voltage from 200mV to 300V.

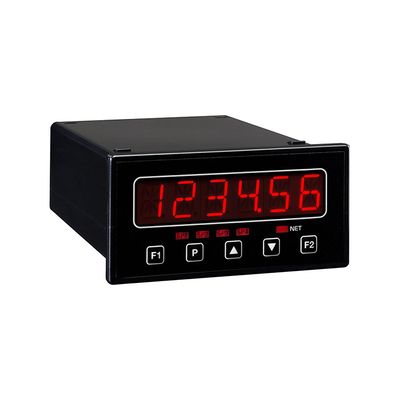

This intelligent, fully featured load cell meter and controller has an advanced batching system that is designed to suit a variety of industrial weighing requirements. It can be configured for either filling or emptying applications, and maintains the gross weight in the background while simultaneously monitoring and controlling the batch weight. Accepts and displays load cell/strain gauge input. Offers relay output for alarming plus optional serial communications and analog output.

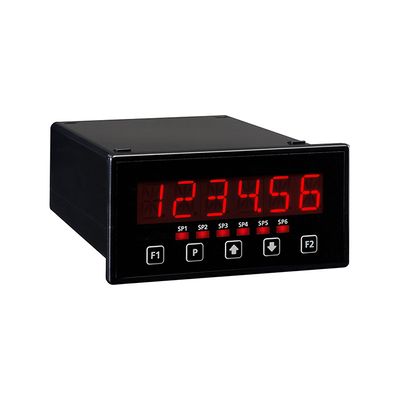

0/4-20mA or 0-2/10V Input, 6-digit Panel Meter/Controller.
