Discflo Pumps products

Discflo’s ANSI Pump has been employed in the following applications: slurry gel, polymer emulsions, produced water, chemical slurry, liquid tetrahydrafuran, pulp, seawater with cuttings, teflon dispersions, acetone solution and wastewater sludge. Discflo’s ANSI Disc Pump offers unique productivity and cost-saving benefits for users in the chemical processing industry. Using the innovative Discpac technology, these pumps offer a superior alternative to centrifugal, progressive cavity, lobe and gear pumps for viscous, abrasive, high solids, and gas-entrained fluids as well as handling shear sensitive and delicate chemicals and emulsions. Tests have proven that Disc Pumps can pump oil/water fluids without emulsifying them.

Discflo has designed a line of pumps to comply with the latest edition of API-610 for high temperature and high pressure applications in the oil, petrochemical and chemical industries. They are designed for processes up to 1000º F, and allowable working pressures to 1480 psi. Flow ranges to 8000 GPM can be accommodated, with heads up to 1200 ft.

Utilized in tank or sump environments. Fluctuations in temperature, pressure and solids content are handled efficiently without breakdown. Ideal solutions for reliable, low maintenance operation in the harshest applications.

A specialty line of pumps offering superior abrasion and corrosion resistance available on all standard Disc Pump models. Extends the wear life of a pump over any other type of pump in the industry.

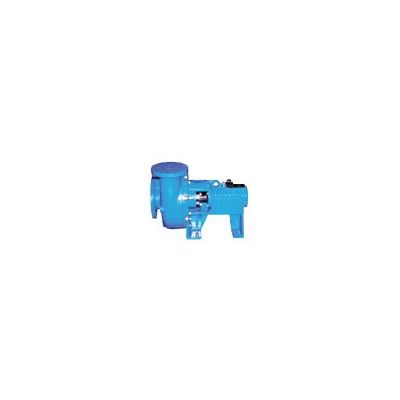

Discflo’s line of horizontal, end-suction Disc Pumps use the unique Discpac technology to provide a superior alternative to centrifugal and PC pumps in tough applications. Disc pumps have no close tolerances and deliver laminar, pulsation-free flow. They excel at handling abrasive, high-solids (up to 90%) and/or viscous fluids. They can also pump air or gas entrained fluids, up to 80% by volume, and large or stringy solids, without clogging. The Disc Pump’s unique non-impingement Discpac ‘impeller’ prevents degradation, emulsification and damage to delicate and shear sensitive products. Handles a wide variety of difficult fluids efficiently and effectively, without breaking down in service. The same pump model can handle fluctuations in temperature, pressure, solids content and even product without breakdown. Horizontal pump line includes: in-line, close-coupled, side-by-side, over-under and self-priming configurations for hard-to-pump applications.

Discflo’s SP sanitary pumps use the unique non-impingement Discpac technology to pump delicate fluids, e.g. soft foodstuffs (corn, fruit, etc) and pharmaceutical products, without damage, and handle shear sensitive fluids, such as citrus oils, without emulsification. The user benefits not only from lower pump operating costs, but also from higher processing yields and better quality product.

The MIS line of centrifugal pumps offers users a heavy-duty, easy-to-clean unit at a very competitive price. Using a unique impeller with an integral inducer, the MIS pump can operate at lower positive suction heads for the same flow rate than other centrifugal pumps.

Discflo’s submersible pumps are the perfect solution for viscous, abrasive and/or high-solids applications. They have been employed successfully in some of the toughest installations, including digester sludge, toxic slurries, nuclear waste, dewatering tank transfer, drilling, dredging, and environmental clean-up. In many cases, they are retrofitted to replace failed centrifugal, progressive cavity, lobe, gear and chopper pumps.

Vertical Dry Pit Pumps are ideal for heavy-duty sewage, sludge and slurry applications. Discflo manufactures a complete line of sump and dry pit pumps for heavy-duty sewage, sludge and slurry applications. Using the unique Discpac technology, these pumps provide clog-free, low cost, long-lived operation, outperforming progressive cavity, centrifugal, lobe and chopper pumps in even the toughest installations. Sump Disc Pumps have a low NPSH requirement. In addition to ductile iron, Discflo’s sump and dry pit pumps can be engineered in stainless steel, Hastalloy, CD4 and other exotic metals, to meet the user’s specific abrasion and/or corrosion resistance needs.

Discflo manufactures a complete line of sump and dry pit pumps for heavy-duty sewage, sludge and slurry applications. Using the unique Discpac technology, these pumps provide clog-free, low cost, long-lived operation, outperforming progressive cavity, centrifugal, lobe and chopper pumps in even the toughest installations. Sump Disc Pumps have a low NPSH requirement. In addition to ductile iron, Discflo’s sump and dry pit pumps can be engineered in stainless steel, Hastalloy, CD4 and other exotic metals, to meet the user’s specific abrasion and/or corrosion resistance needs.
