Distran AG products

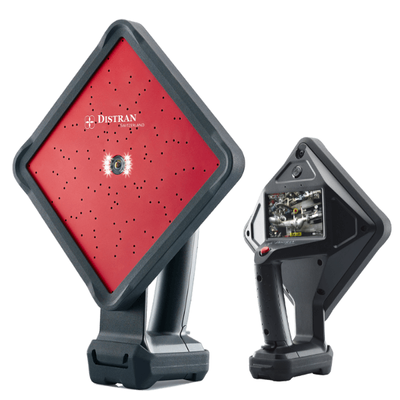

Distran - Model Ultra Pro - Ultrasonic Leak Imaging Camera

Ultra Pro is a cutting-edge ultrasonic imaging camera designed for high-reliability inspections in the detection of gas leaks. This handheld device is engineered for efficiency and precision, capable of locating leaks from several meters away with exceptional speed. Utilizing 124 ultrasound microphones, the camera captures and reconstructs the position of sound sources, overlaying this data onto real-time wide-angle optical images. The Ultra Pro is versatile, enabling the detection of any gas type, including vacuum leaks, by analyzing sound emissions. It excels in challenging environments, filtering out ambient noise while operating across a range of distances up to 50 meters. The device also quantifies leak rates, enabling prioritization of maintenance tasks. With integrated LED lighting and a robust design certified under both ATEX and IECEx standards, Ultra Pro is adaptable to hazardous conditions prevalent in industries such as Oil & Gas and Power Generation. Reports can be generated efficiently using the Audalytics software, streamlining the maintenance workflow.

Distran - Model Ultra CE - Ultrasonic Leak Detection Camera for Composite Manufacturing

The Ultra CE by Distran is a compact and efficient ultrasonic leak detection camera designed specifically for the composite manufacturing industry. This device revolutionizes vacuum leak detection with its handheld design capable of pinpointing leaks at distances ranging from 30 centimeters to 50 meters, effectively capturing leaks hidden in bag folds or under curing blankets. Equipped with a 124-microphone array, the Ultra CE detects ultrasounds, enabling rapid leak localization even in noisy environments, thanks to its robust noise filtering capabilities. Its integrated wide-angle optical camera displays leak locations on its screen, with a detection accuracy of about 1°. With a battery life of 5 hours, Ultra CE provides on-the-spot digital reporting using Audalytics, enhancing traceability and efficiency. The device supports digital exports via Audalytics or SD card in formats like JPEG and MP4, and is CE, RoHS, and WEEE compliant.

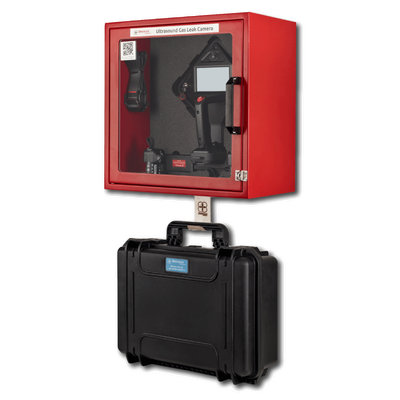

Distran - Ultra Ready Battery Charging Station for Leak Detection Cameras

The Ultra Ready is an essential tool for efficient gas leak detection using Distran's ultrasound cameras. It serves as a wall-mounted box designed specifically to house and charge the batteries of the Ultra Pro, Ultra Pro X, and Ultra CE cameras, ensuring they are always ready for deployment. With dual battery charging capabilities, operators can maintain continuous operational readiness by charging two batteries simultaneously, reaching 70% charge in one hour and nearly full charge in three hours. This station also includes integrated lighting for ease of use in control rooms and production halls. Despite its robust functionality, it is not ATEX-certified and should be positioned outside hazardous areas. The Ultra Ready's user-friendly design includes a QR code leading to a quick training video, enabling even untrained personnel to effectively operate the equipment. The device operates optimally within a temperature range of 0-40 °C, making it suitable for a variety of environments.
