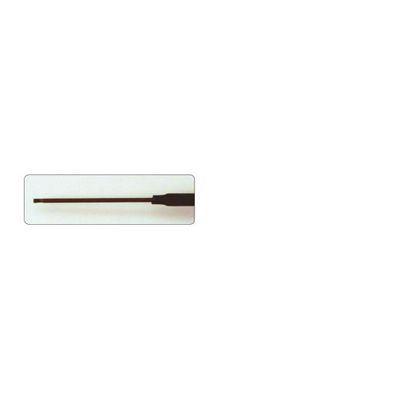

The MAD-310 RAS has a memory function of X, Y, Z axis coordinates, which pursues reproducibility so that anyone can obtain the same measured value at any time. Our proprietary ultrafine probe FC-075 which is effective for proximity measurement of magnetic flux (width 0.6 mm × thickness 0.28 mm) can also be used.

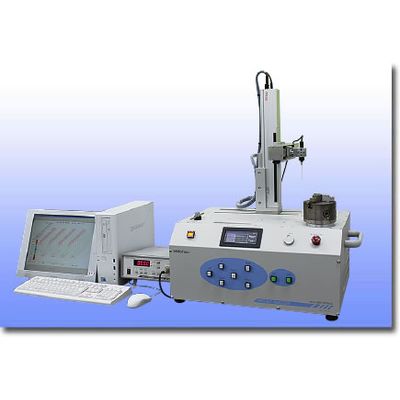

MAD 310R/310RA are magnet analyzers which automatically measure the magnetic-flux distribution of the magnetized cylindrical magnets, and analyze the magnetizing ripple, amount of magnetic-flux on each pole, magnetizing angles, and size of the area. This has a 3-D display; X=rotation angle (Deg), Y=Surface magnetic-flux density (Tesla), Z=height (mm). This also has the frequency 3D display; X=Frequency (Hz), Y=magnetic-flux (dB), Z=direction of height (mm). This can be used as a 2D display device. It is also possible to pick-up data from a 3D ripple to a 2D ripple.

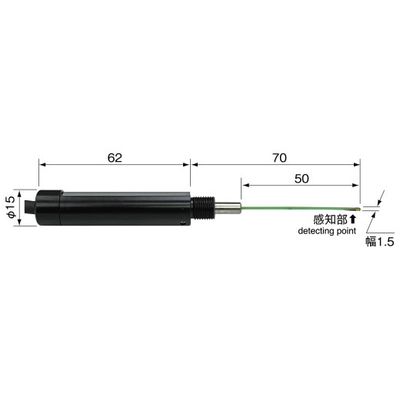

Flat type. width 1.5 mm × thickness 1.2 mm. FC-1506 flat type width 1.5 mm × thickness 0.6 mm. FC-300 flat type width 3.0 mm × thickness 1.8 mm. AC-156 axial type φ 6-axial direction type. AC-153 axial type φ 3-axial direction type.

Probes suitable for magnetic flux measurement at narrow gaps and magnetic flux measurement of small diameter magnets which could not be realized so far
