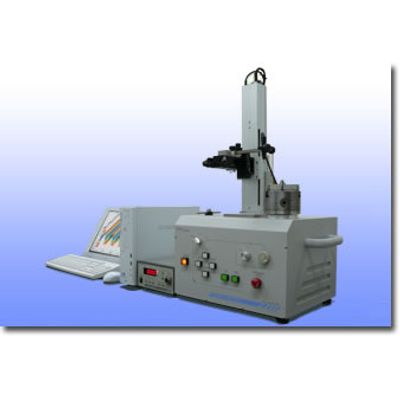

Model MAD-310R/310RA -Magnet Analyzer

MAD 310R/310RA are magnet analyzers which automatically measure the magnetic-flux distribution of the magnetized cylindrical magnets, and analyze the magnetizing ripple, amount of magnetic-flux on each pole, magnetizing angles, and size of the area. This has a 3-D display; X=rotation angle (Deg), Y=Surface magnetic-flux density (Tesla), Z=height (mm). This also has the frequency 3D display; X=Frequency (Hz), Y=magnetic-flux (dB), Z=direction of height (mm). This can be used as a 2D display device. It is also possible to pick-up data from a 3D ripple to a 2D ripple.
