DMT GmbH & Co. KG products

GYROMAT 6000 – Gyroscope measuring system for high precision in tunnel construction & shipbuilding . DMT`s GYROMAT 6000 is the most accurate precision surveying gyroscope in the world. With an accuracy of 0.8/1000 gon (2 arc-seconds) and a variety of special features, it is the ideal instrument for large-scale tunneling and route surveying projects and other high-precision alignment tasks, such as shipbuilding and other metrology applications.

The SUMMIT X One represents the latest generation of DMT’s long-standing  successful SUMMIT product line of field seismographs. Ultra small one-channel remote units linking to a lightweight SUMMIT line cable via the new optimized SUMMIT SNAP-ON technology result in the world’s most flexible wired seismic acquisition system.

SUMMIT II Ex is the only intrinsically safe seismic exploration system worldwide specially developed for use in potentially explosive underground environments like for instance coal mines. The system is based on the SUMMIT II Plus Technology and allows flexible layout configuration for any underground application like in-seam seismics, underground tomography and borehole applications.

SUMMIT M Vipa is a three channel seismograph for vibration monitoring with an additional channel for noise monitoring. The units can be linked together to build up monitoring networks. With integrated parameter and data control facilities - SUMMIT M Vipa provides structural vibration monitoring according to all common standards. 24 bit technology ensures ultrasensitive vibration monitoring for continuous and event based recording. SUMMIT M Vipa comes with easy setup routines and extra long duration batteries.

The low-budget IOT sensor VIB3D offers real-time monitoring of vibration and movement in the fields of infrastructure, machinery and environmental surveillance. The recorded data and status information is transmitted wireless (WiFi / 4G) to the DMT SAFEGUARD cloud-based database, where project specific post-processing and data fusion from various sensors is done automatically.

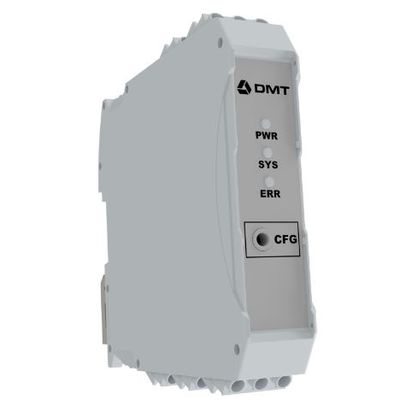

DMT VibraTherm - the transmitter for vibration and temperature monitoring of machines in industrial maintenance.
Optionally available with LTE and WLAN connectivity.

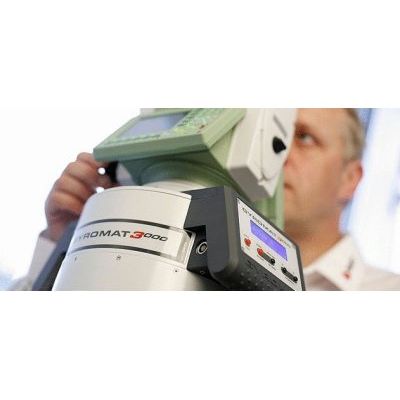

With a tradition of more than 50 years, DMT’s development and production of surveying gyros led to the fully automated GYROMAT 3000. Mounted with modern total stations or theodolites it is the fastest and most precise gyro system worldwide with references in most large scale tunnels. Wherever a tunnel driving has a precise target, GYROMAT 3000 directs it to the point.

The Most Accurate Precision-Surveying Gyroscope in the World. The GYROMAT instrument series is a range of high precision surveying gyroscopes with band suspension, which are the result of more than 60-year’s of experience in the development and manufacture of gyroscopic measuring instruments. The fully automatic measuring procedure and measurement technique that has no any preliminary orientation provide the greatest accuracy in determining direction in those areas in which other methods cannot be efficiently used, for example in mining and tunnelling. The GYROMAT 5000 is the latest product for high precision direction measurement with an accuracy of 0.8/1000th gon, which corresponds to a deviation in arc of about 1.2 cm over a distance of one kilometre.

Based on  the high quality laser scanner IMAGER 5006, Zoller+Froehlich GmbH (Z+F) and DMT GmbH & Co. KG (DMT)  have developed the first explosion-proof laser scanner. The IMAGER 5006Ex revolutionises measuring in explosive atmospheres. Services with IMAGER 5006Ex especially in underground mining and sewerage systems support numerous advantages that not only increase safety and productivity but also reduce costs.
