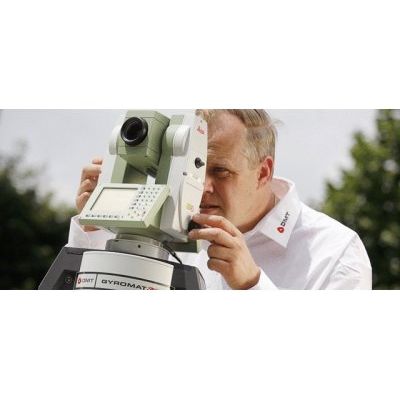

GYROMAT - Model 5000 -Geodetic Measuring Systems
The Most Accurate Precision-Surveying Gyroscope in the World. The GYROMAT instrument series is a range of high precision surveying gyroscopes with band suspension, which are the result of more than 60-year’s of experience in the development and manufacture of gyroscopic measuring instruments. The fully automatic measuring procedure and measurement technique that has no any preliminary orientation provide the greatest accuracy in determining direction in those areas in which other methods cannot be efficiently used, for example in mining and tunnelling. The GYROMAT 5000 is the latest product for high precision direction measurement with an accuracy of 0.8/1000th gon, which corresponds to a deviation in arc of about 1.2 cm over a distance of one kilometre.
The time needed for measuring a single direction is only about 6 to 9 minutes. The new piezo drive with a high resolution angle encoder and the new energy concept with a reliable energy storage system and replaceable battery make the system faster, more reliable and easier to maintain. The option to add a theodolite or a total station as required enables the instrument to be used universally for geodetic applications or control work.
- Utmost accuracy
- Shorter measuring time
- Fully automatic measurement
- No pre-alignment necessary
- Individual theodolite mounting
- Spare Battery
Special Design Features
- Ergonomic design with only one rechargeable battery
- More precise piezoelectric drive with high resolution angle encoder
- Gyro measuring system with a reliable intermediate energy storage system
- Wireless remote control and data transfer via Bluetooth®
- Wired interfaces (USB / RS- 232) for control and data transfer
- Menu-driven measuring sequence
- Advanced monitoring
