Douce-Hydro SAS products

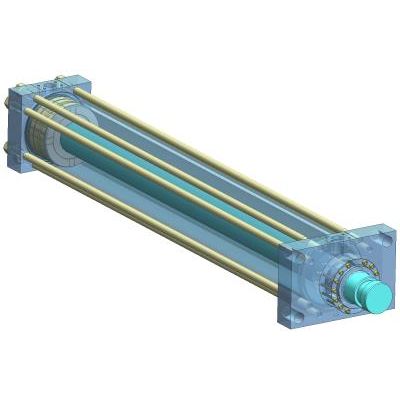

All industries, normal & heavy duty applications, even in extreme conditions. Various mounting types. Various options possible (cushioning, sealing system, coating, speed, raw material, fluid type, paint etc.). Easy maintenance.

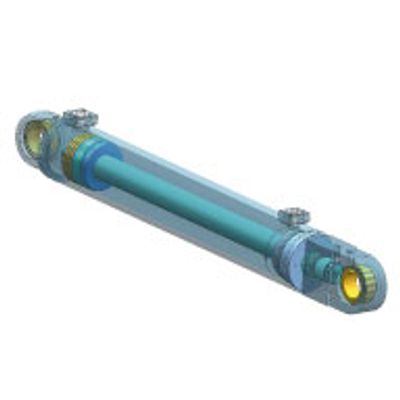

All industries, normal & heavy duty applications, even in extreme conditions. Various mounting types. Various options possible (cushioning, sealing system, coating, speed, raw material, fluid type, paint etc.). Easy maintenance.

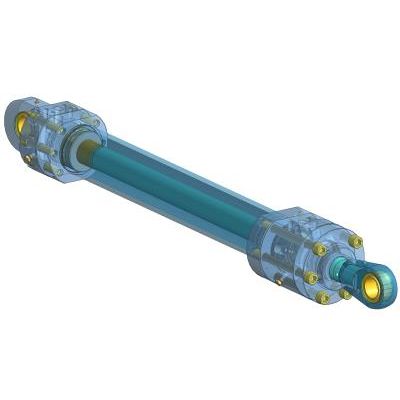

All industries, normal & heavy duty applications, even in extreme conditions. Various mounting types. Various options possible (cushioning, sealing system, coating, speed, raw material, fluid type, paint etc.).  Easy maintenance.

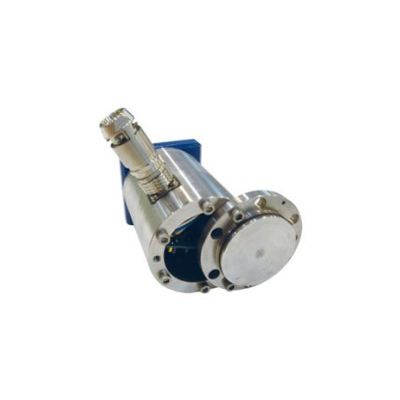

The SMIK sensor is mounted on the cylinder head, and requires special machining and KERADOUCE® coating on the rod. It enables the position of the rod to be determined with the utmost precision and reliability.

This equipment, mounted at the end of a cylinder, provides extremely accurate and reliable information on the position of the cylinder’s rod.

Douce-Hydro also specializes in the design and manufacture of piston accumulators, offering the following technological advantages: high compression ratio, reliability, long term storage capabilities, customs capacity and volume up to very large dimensions, instantaneous high flow rates, adapted to high temperatures, piston functioning reliability, safety, piston position detection (option), can be adapted for transfer systems with non-compatible fluids and easy maintenance.

In July 2008, Douce-Hydro took over the activities of Jarret Structures, which specializes in the design and manufacture of viscous fluid dampers for the protection from shock and vibration in the seismic and civil engineering industries. Jarret Structures offers a wide range of patented damping devices and, by utilizing its extensive design software, test and simulation capabilities, has the ability to create specialized products to meet complex and unique shock absorption application requirements. Through both internal research and research programs carried out with large universities worldwide, Jarret Structures is able to offer technically innovative and commercially viable solutions to most shock absorption problems.

Developped by Douce-Hydro “Research & Development” team, KERADOUCE is a multilayer coating, waterproof and very hard, which is applied on the rods of hydraulic cylinders, and has an excellent corrosion resistance. It is homogeneous, uninterrupted, non conducting, flexible enough to support functional rod bending, and ecological. Since 1990, with thousands of hydraulic cylinders in use worldwide, our KERADOUCE coating  has proved its high efficiency and reliability.

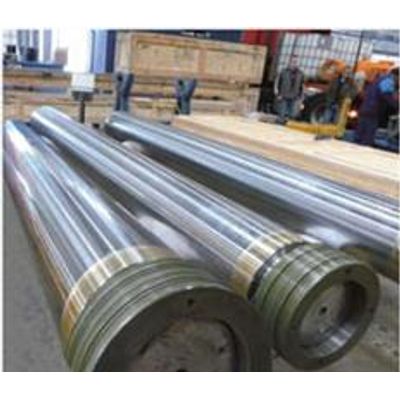

The MetalteK® coating is applied on piston rods to prevent wear and corrosion in medium corrosive industrial environments. The mechanical characteristics (hardness: 1100 HV) and density of the coating provide a durable, very hard and dense surface with excellent sliding, wear and mating properties, as well as an excellent chemical corrosion resistance, thus resulting in a significant increase in the life of the hydraulic cylinders. Typical Applications : Steel Work, Mining, Construction Equipment, Industrial Applications...
