Downeaster products

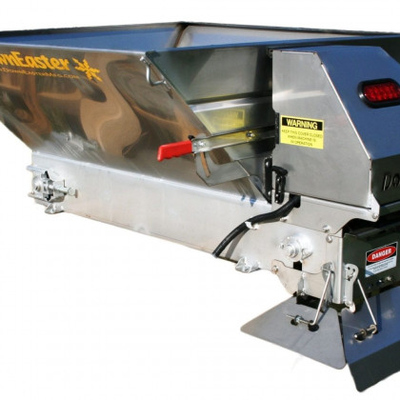

1/2 HP Electric, Stainless motor. 1/2 HP Electric, Stainless motor. 50:1 gearbox reduction @ conveyor. Enclosed motor platform w/ rear venting. 1 1/8″ diameter conveyor shafts w/ 6T cast sprockets. 662 Pintle chain w/ 8500# tensile strength. Greasable, self aligning, drive bearings throughout. Recessed lifting hook & 4 corner tie down points. Third brake light, rubber. Inverted – V deflector on 7′ & 8′ models. Adjustable feed gate w/ salt flap. Formed over rail w/ built in chain shields. Enclosed chute w/ 2 internal, & 3 external, adjustable spreading spring loaded locking rods

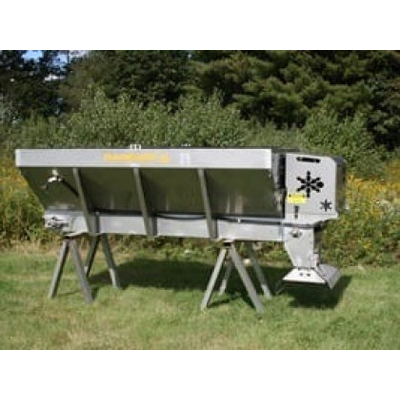

In cab, rocker switch control box. Hinged / removable top screens. 45 sloped sides. Double bend top rail, all around. Formed over rail w/ built in chain shields. Enclosed / hinged motor platform w/ venting. 1 1/8″ diameter conveyor shafts w/ 6T cast sprockets. 662 Pintle chain w/ 8500# tensile strength. Greasable, self aligning, drive bearings throughout. Recessed lifting hook. Adjustable feed gate w/ salt. 4 corner tie down points. Enclosed chute w/ 2 internal, adjustable baffles & 3 external, adjustable spreading deflectors, w/ spring loaded locking rods.

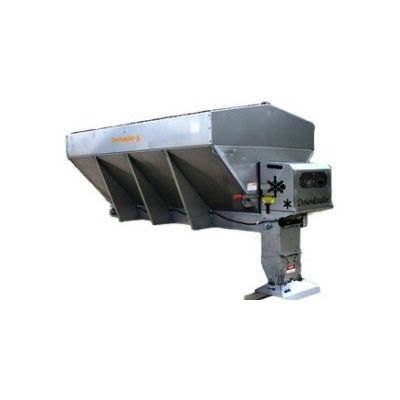

14GA SS / 12GA HR hopper construction. 12GA SS /10GA HR conveyor bed. 3 vertical gussets per side. Modular, bolt together hopper extensions. In cab, rocker switch control box. Hinged / removable top screens. 45 Sloped sides. Double bend top rail, all around. Formed over rail w/ built in chain shields. 1 1/8″ diameter conveyor shafts w/ 6T cast sprockets. 662 Pintle chain w/ 8500# tensile strength. Greasable, self aligning, drive bearings throughout. Adjustable feed gate w/ salt. 4 corner tie down points. Enclosed chute w/ 2 internal, adjustable baffles & 3 external, adjustable spreading deflectors, w/ spring loaded locking rods.

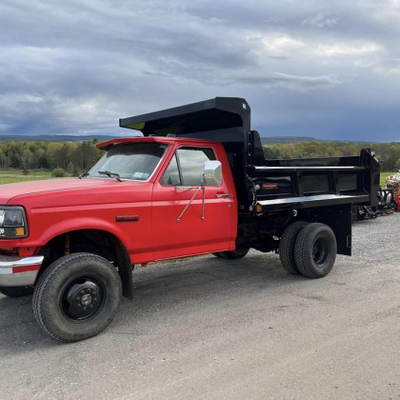

12 gauge floor / 14 gauge side plates. Two way tailgate (top/bottom hinged) with steel sub frame. Electric over hydraulic pump with 10′ pendant control cord. & pre punched tarp mounting holes. Spring loaded tailgate bottom release pins. Adjustable 3/16" chain for spreading aggregate material & holding gate in down position. Compact scissor hoist with 3.5" diameter cylinder. 47 degree dump angle. Internal stake pockets. Our products come acid etched, phosphate washed, with corrosion resistant epoxy primer and then baked for a strong superior finish. Double acting pump (power up / power down). Our New 5 Year Warranty.

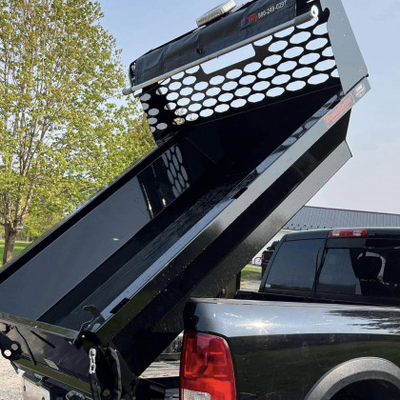

10 gauge construction throughout. Dirt shedding , sloped design at side plate and tailgate top. Double panel side plates equal over 1/4" thickness. Full depth 3/16"rear corner pillars incorporate recessed lighting, keyhole banjo eyes and lower tailgate pin receiver. All lighting is LED rubber mounted and NTEA and Federal compliant. 2 1/2" shorter deck height (9′ only). Mounting height of 9.5" chassis to floor (9′ only). 10" board extension pockets ease of install & future optional / custom overhang. Self aligning rear latch release for the top gate pins. Integrated tarp hooks. Our products come acid etched, phosphate washed, with corrosion resistant epoxy primer and then baked for a strong superior finish.
