DP® Pulveriser Industries products

Powder Processing Equipment - Size Reduction & Grinding - Pulverisers & Classifier Mills

DP - Medium Speed Screen-less Hammer Mill

The DP Impact Pulveriser is a medium-speed, screen-less hammer mill that integrates feeding, grinding, and air classifying into a compact unit. It is designed to grind materials to medium fineness, using an adjustable whizzer classifier to achieve particle sizes ranging from 60 to 300 mesh. The mill's durability and versatility make it suitable for continuous operation in harsh conditions and diverse applications, including food, chemicals, minerals, and more. Driven by a single motor, the flexibility of this mill extends to its adjustable gap between the whizzer classifier and the whizzer cone, allowing for precise control over particle size. It can effectively handle materials from 0 to 25 mm and processes outputs from 10 kg/hr to 3000 kg/hr. An integrated impeller eliminates the need for an external fan, facilitating the pneumatic conveyance of materials out of the grinding chamber. For specific applications, such as grinding turmeric, the mill can include water-jacketed serrated liners to prevent heating and essential oil loss, as well as a check vibratory sifter for removing coarse fibers.

DP® - High Speed Screen-less Vertical Hammer Mill

The DP Air Classifier Mill is engineered as a high-speed, screen-less vertical hammer mill with an integrated air classifier that allows on-line adjustments. Specialists in various industries such as food, chemical, minerals, metals, pharmaceuticals, cosmetics, and plastics can use this mill to achieve particle size reductions in the range of 8 to 40 microns, starting from materials up to 15 mm in size. This versatility enables throughput rates varying from 5 kg/hr to 2000 kg/hr. Key construction elements include options for both machine contact and non-contact parts made from materials like Cast Iron, Carbon Steel, and Stainless Steel grades 304, 304L, 316, and 316L. Wearable parts are crafted from robust materials such as Forged Alloy Steel, Welded Hard Facing, Hard Alloy Steel Casting, and Cast Iron. The internal fan is customizable to either a single or two-piece design, with an external fan design also available for applications requiring precise airflow control. The grinding chamber can be cooled via liners designed with water jackets, enhancing the operational efficiency and longevity of the machine.

Powder Processing Equipment - Size Reduction & Grinding - Hammer & Screen Mills

DP - Medium Speed Screen-less Hammer Mill

The DP Impact Pulveriser, also known as the DP® ZeVa Mill ZVM, is an integrated medium speed screen-less hammer mill combining feeding, grinding, and air classifying in one compact unit. Optimized for various materials, this unit can grind materials down to a medium fineness. The inclusion of an adjustable whizzer classifier allows the mill to achieve a broad range of particle sizes, ranging from 60 mesh to 300 mesh. In practical terms, the mill can process particles from 5-10 mm down to 60 microns, reaching capacities of up to 2 tons per hour. It offers a comprehensive solution suited for different applications including food, chemicals, minerals, metals, pharmaceuticals, cosmetics, plastics, and special applications, making it a versatile choice for processes that require precise size reduction and grinding with high throughput.

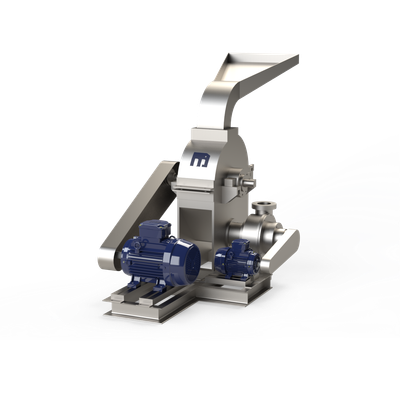

DP - Hammer Mill

The DP® Hammer Mill HMH is a versatile piece of equipment designed for size reduction and grinding tasks. This tool is essential in industries such as food, chemicals, minerals, metals, pharmaceuticals, cosmetics, and plastics, where precise particle size reduction is crucial. The mill operates using a combination of hammering action against a screen which allows for controlled particle size reduction. Its configuration can be adjusted based on specific applications, making it adaptable for various tasks within a production line. The device is especially effective for creating uniform particles needed in specialized applications. Users may request quotes and check specifications to ensure the equipment meets their requirements.

Powder Processing Equipment - Size Reduction & Grinding - Jet Mills

DP - Spiral Jet Mill

The DP Impact Pulveriser is a medium-speed screen-less hammer mill that merges feeding, grinding, and air classifying into a single compact unit. It can grind materials to a medium fineness level, with an adjustable whizzer classifier allowing for particle size ranges from 60 mesh down to 300 mesh. The device handles input sizes from 0 to 25 mm and produces output sizes ranging from 250 microns to 0.2 microns, with throughput capacities from 5 kg/hr to 3000 kg/hr. Designed for continuous operation in harsh environments, this mill features a robust build. A single motor drives the entire mill, and its versatility is enhanced by the adjustable number of hammers on the rotor. The whizzer classifier's adjustable gap permits precise control of output particle size, enabling both coarse and fine grinding applications. An impeller on the common shaft eliminates the need for an external fan, facilitating pneumatic conveying of the material from the grinding chamber.
