Ebitt Fluid Technologies products

Electric circulator pumps for sanitary hot water circulation.

Materials: Pump Housing and Lantern: Cast Iron. Impeller: Reinforced Glass PPO up to b,S kW (not included). Cast Iron: 5,5 kW- 7,5 kW. Mechanical Seal: AQ1LGG. Shaft: X20Cr (AISI420).

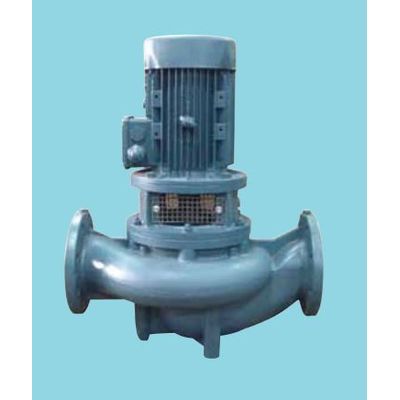

Close-coupled, single-impeller, centrifugal pumps; electric motor connected to the pump by rigid coupling. Pump casing with suction and delivery connections with the same diameter and on the same axis (in-line). Main dimensions of casing complies with EN733. These pumps are directly coupled to electric" motors that comply with ILC frames and VOl norms. Connections: Flanges PN 16, LN 1092-2.

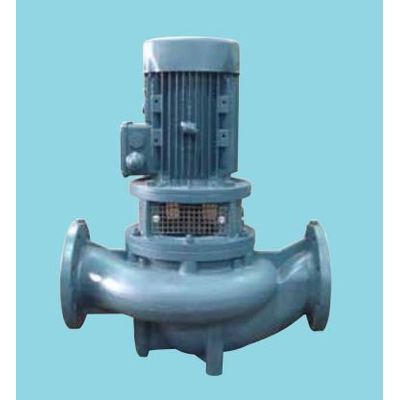

Close-coupled, single-impeller, centrifugal pumps; electric motor connected to the pump by rigid coupling. Pump casing with suction and delivery connections with the same diameter and on the same axis (in-line). Main dimensions of casing complies with EN733 these pumps are directly coupled to electric" motors that comply with ILC frames and VOl norms. Connections: Flanges PN 16, LN 1092-2.

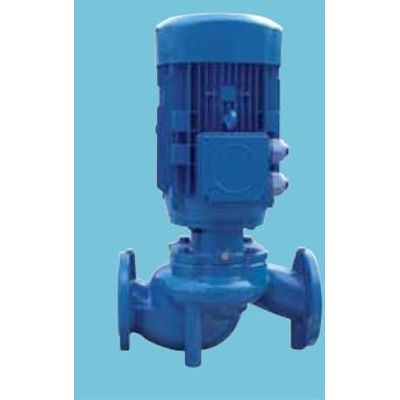

Electronically controlled, inline design with flange connection and automatic power adjustment. Single staged, low-pressure centrifugal inline pumps are being controlled by our electronic device of WDRIVE. WDRIVF device controller is specially designed for HVAC applications and water circulation to realize constant pressure differential control, constant temperature differential control and constant pressure and constant temperature controls. It can confirm the system to adapt to the change of a IIVAC circuit load with the advantage of rapid reaction, little influencing on temperature and humidity, ensuring the balance of the system, efficient energy saving.

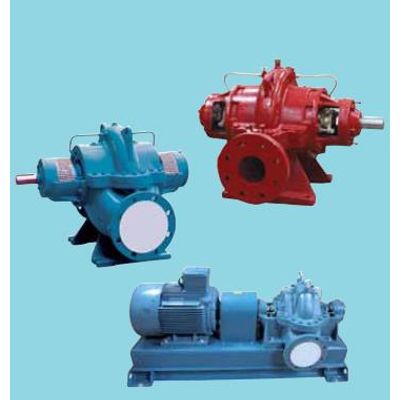

Single-stage horizontal centrifugal pumps, with suction and discharge flanges on the same axis. Split case design allows disassembly of pump hydraulic parts without disassembling suction and discharge flanges. Double suction impeller design increases suction performance and balances axial forces on impeller and shaft.

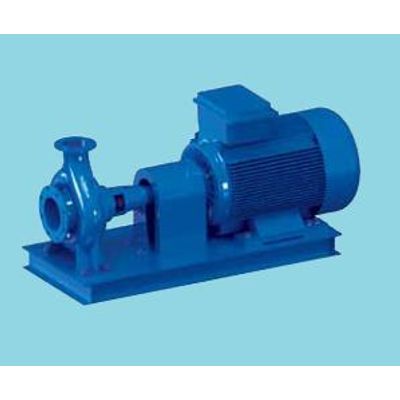

Single-stage end-suction centrifugal pumps, with bearing bracket. Nominal duty points and main dimensions in accordance with EN 733. Back Pull-Out construction, for simple and quick dismantling and reassembly.
