Effective Enviro Solutions products

The machine has a pipe stack which can accommodate up to 1500 -1700 pipes of 60mm. The pipe dispenser will feed two pipes at a time and if it is necessary to run 2 sizes of pipe then we can provide partition in the dispenser. This is adjustable individually.

Technologically advanced machine with 2 axis friction welding. Fully automatic PLC controlled operation with hands free mode for operator safety. Welds all sprinkler pipes as per IS 17425 as per coupler design. Welds 3500 pipe per day. Fitted with variable speed motor for feed adjustment. In operation in many renouned micro irrigation companies. Possible to have single head machine for low producvitity below 1000 pipes/day. Actual plant video available on website. Available for the sizes 63, 75 an 90mm. Sizes 50mm and 110mm can be weld but only up on special request. Self actuating chuck for all sizes. Fixtures can be provided on special request.

Fully automatic PLC controlled operation with hands free operation. Eliminates the use of connector completely. Suited for both round and flat drip pipes as per IS 13488. Welds joints of drip pipes from 0.15mm (6 mil) to 0.4mm (16 mil) thickness. Joining time varies from 20 to 40 sec / joint as per thickness. Total leakproof joint. Proven technology over the world and exported to Europe and USA. Uses highspeed induction heaters for failsafe joints. No rejection in the field due to zero connectors. Uses siemens PLC, autonics PID controllers & SMC pneumatics. CE marked equipments for overseas markets.

Product to be separated : Flat dripper and runner. Size of dripper : (LXBXT) : To be Provide by customer. Minimum dimension of runner : To be provide by customer. Through put with 8 sec cycle time : 7 lac pieces per day or 29000 pieces per hour or 500 pieces per min of product and 125 pieces of runner shall be separated. Foot print of machine : 1m Long X 0.6 m wide X 1.5m adjustable height up to 1 m. Dripper outlet : Below the machine and runner at outlet of drum. Material of Construction of contact parts: Stainless steel / Plastic. Frame : Mild steel Powder coated with adjustable angle for drum 0-20 deg. Drive : AC Geared motor ( Bonfigloli) with friction drive. RPM – 20 RPM. Top hood : Acrylic/ PC formed cover.

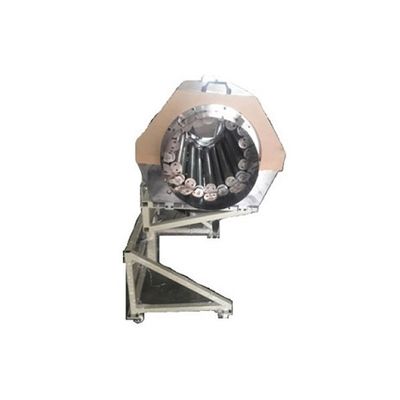

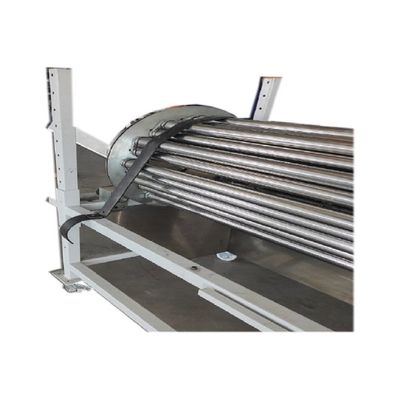

The Separating Drums with Planetary Central Adjustment of the Types are used for an automatic separation of parts of different form and size. These drums are suitable for frequently changing part combinations and therefore the roller spacing can be readjusted very quickly. In case of infrequent product changes the Separating Drums with Individual Adjustment of the rollers (Types 255B to 3512B) are an economical alternative. The Sloughing Drums with individual adjustment of the rollers are used, when e.g. the injection moulding parts are still located on the sprue. Within this drum the parts are sloughed off the sprue, followed by their separation. All separating drums are predominantly used in the injection moulding industry and in the aluminium and zinc die-casting industry.

Simple Hydro-Pneumatic press for Aluminium or Metal Riveting. Low consumption of Air , single phase Electrical connection , help in cost reduction on the final output. Shorter path between oil reservoir and final hydraulic cylinder enables high stroke frequency. Quality of Riveting output of the product can be improved due to minimum force of approach. Products are designed in such a way that need of power pack is not there. Simple operating system allows user to understand the mechanism quickly. It can be placed in minimum space. Force from 1200 kg to 2400 kg can be applied on the rivet just be adjusting the pneumatic pressure. The process shall be operated on Fully automatic mode with Pressing time adjustment depending on the flatness required.
