Eijkelkamp SonicSampDrill products

The SmallRotoSonic excels through capturing the powerful sonic force in an extraordinarily small and manoeuvrable package, combining efficiency and cost-effectiveness. This rig makes the difference and accelerates your drilling and sampling productivity for a broad variety of applications! Why use direct push when 150 Hz RotoSonic delivers faster and better results and provides extremely undisturbed samples. See

Sonic drilling is the fastest drilling method for all overburden formations! Than why should you waste time for mobilization of drilling equipment between boreholes? The SmallRotoSonic Tractor mast (SRS-T)  transforms a modern agricultural tractor into a powerful drilling rig. Modern tractors are fast and most of them can provide enough engine power to drive a SmallRotoSonic drill head. Power to the drill is taken from the tractors Power Take Off (PTO). A small trailer is sufficient to transport the mast to the job site. Arrived in the region where you want to drill, you just connect it to a local (rented) tractor and start drilling.

The CompactRotoSonic Crawler is built to perform in the most diverse working conditions. Its stability and rigidity optimize the power of the CompactRotoSonic drill head. The Crawler excels in small spaces because of its great manoeuvrability. Sonic drilling simply is the smartest way to penetrate soil layers, dry or wet, clay, loam, sand, gravel or peat or cement to rock. This rig features the drill head which allows simultaneous rotation and vibration, see here for detailed. A separate swivel allows for liquid, foam or air assisted drilling.

The CompactRotoSonic Crawler is built to work in the most diverse working conditions. You can use it in small spaces because of its high manoeuvrability. A separate swivel allows for liquid, foam or air assisted drilling.

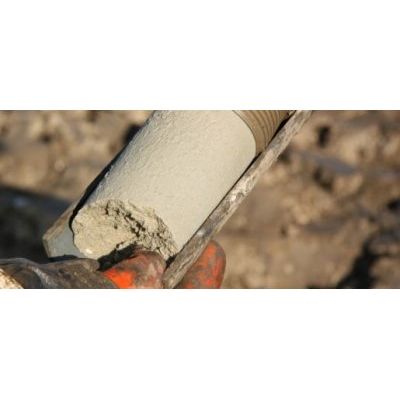

Soil sampling using the patented AquaLock piston sampler collects high-quality core in a variety of conditions, even loose sand and saturated sediments typically different to collect with standard techniques. The AquaLock is available in 3 different diameters to match your requirements. The barrels are made of stainless steel and are comprised of a valve operated drive head, internal floating piston and a choice of cutting shoes and ring bits for differing lithologic conditions. Samples can be extruded into PVC liners, polyethylene foil tube, plastic gutters or a core box.

The SingleWall core barrel sampler is designed to take high quality samples in a broad spectrum of formations. It will work best in harder alluvial and mixed formations. It can even handle small boulders and hard layers. Sampling is performed dry. A casing makes sure that the borehole does not collapse when retracting the sampler. The SingleWall Core barrel is available in 4 different diameters to match your requirements. Cores can be sampled straight in the core barrel or directly into a liner. The sample can be extruded into polyethylene foil tube, plastic gutters or a core box.
