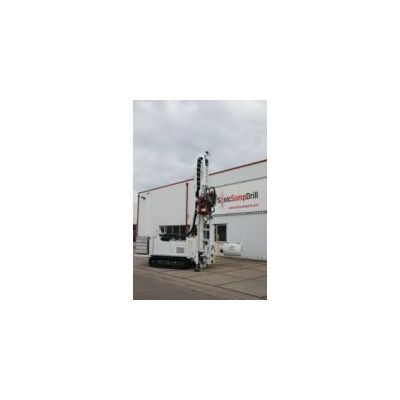

CompactRotoSonic - Model CRS-XL -Sonic Drill Rigs Crawler

CompactRotoSonic HT drill head

• Sonic vibration oscillator output force 100 kN @ 0-150 Hz / 22480 lbf @ 0-150 Hz
• 2 Eccentrics, mechanically synchronized
• Rotation torque: clockwise 2.5 kNm @ 185 bar / 1844 ft-lbf @ 2685 PSI,  0-120 rpm
• Rotation torque: counter clockwise 2.8 kNm @ 210 bar / 2065 ft-lbf @ 3045 PSI,  0-120 rpm

Rig

• John Deere 4 cylinder water cooled engine 104 kW /140 hp or 129 kW /173 hp

104 kW / 140 hp

• Dimensions folded (L x W x H) approx. 6000 x 2000 x 2890 mm / 19’ 8” x 6’ 7” x 9’ 6”
• Height (when drilling) 6000 mm / 19’ 8”
• Weight approx. 9000 kg / 19841 lbs

129 kW / 173 hp

• Dimensions folded (L x W x H) approx. 6000 x 2100 x 2890 mm / 19’ 8” x 6’ 11” x 9’ 6”
• Height (when drilling) 6000 mm / 19’ 8”
• Weight approx. 10000 kg / 22046 lbs

• Fuel tank (diesel): 190 liter / 50 gallon
• Load sense hydraulic system
• Control panel on turning arm
• High pressure water pump 19 l/min @ 210 bar / 5 gpm @ 3045 PSI
• Large flow water pump 160 l/min @ 45 bar / 42 gpm @ 652 PSI
• Aluminum water tank: 500 liter / 132 gallon
• Rubber tracks
• Radio remote for driving
• Casing rack
• Work lights

Mast

• Stroke: 3500 mm / 11’ 6”
• Mast dump: 600 mm / 2’
• Pull up  50 kN / 11240 lbf
• Pull down 35 kN / 7868 lbf
• Pull up & down speed 40 m/min / 130 ft/min
• Double hydraulic break out clamp 60 - 280 mm /  2-3/8” - 11”
• Adjustable clamping force of 110 kN /  24730 lbf
• Break out torque 20 kNm / 14750 ft-lbf
• Hydraulic break out cylinder

Winch

• Pull at 1st layer 10 kN / 2250 lbf


Options

• SPT auto drop hammer with blow counter on control panel
• Casing lifter mounted on break out clamp 200kN / 44960 lbf, stroke 300 mm / 1’
• Steel tracks
• Swivel for liquid, foam or air; 35 bar/ 507 PSI

Available options:

• SPT auto drop hammer with blow count meter on control panel
• Casing lifter mounted on break out clamp 20 ton, stroke 300mm
