Eilersen - The Weighing Experts products

Digital Load Cells

Model DLC-Ex - Compression Load Cell DLC

Capacitive load cells with integrated lift-off protection (Patent Pending) for installations e.g. in areas with seismic activity, outdoor silos and high shear mixers. These robust digital compression load cells in EHEDG compliant design are produced in electropolished stainless steel and hermetically sealed to IP68. The load cells type DLC-Ex can be used in ATEX (Ex) and IECEx applications (Zone 1, 2, 21 and 22)

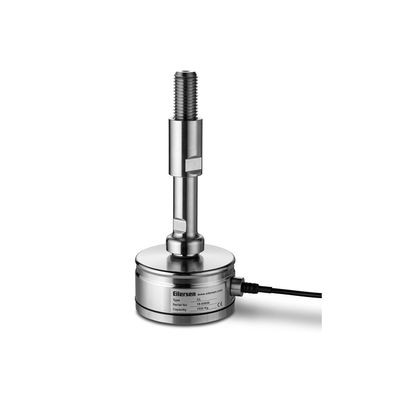

Model CL-Ex - Compression Load Cell CL

NEW hygienic (aseptic) compression load cell types CL and CL-Ex in EHEDG compliant design. These robust digital compression load cells are produced in electropolished stainless steel and hermetically sealed to IP68 for hygienic weighing installations, installations in tough environments and general process weighing. The load cells can be supplied with a hygienic base plate in AISI316. The compression load cell type CL-Ex can be used in ATEX (Ex) and IECEx applications (Zone 1, 2, 21 and 22)

Interface Modules

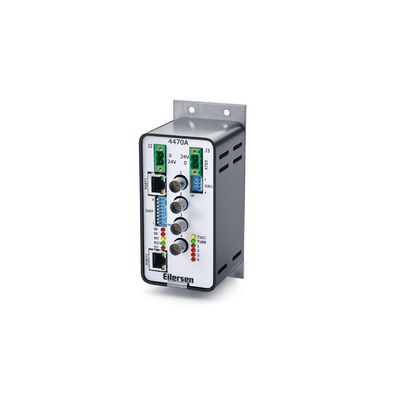

Model 4X70A - ATEX PROFINET Interface Module

ATEX and IECEx certified (zone 1, 2, 21, 22) PROFINET interface module for directly interfacing up to four digital ATEX / IECEx load cells via PROFINET. The interface module type 4X70A can also be used in non-ATEX installations. Type: 4170A, 4270A, 4370A, 4470A. Interface: PROFINET

Model 4X60A - ATEX EtherCAT Interface Module

ATEX and IECEx certified (zone 1, 2, 21, 22) EtherCAT interface module for directly interfacing up to four digital ATEX / IECEx load cells via EtherCAT. The interface module type 4X60A can also be used in non-ATEX installations. Type: 4160A, 4260A, 4360A, 4460A. Interface: EtherCAT

Weighing Indicators

Model 5024G - Digital LCD Weighing Indicator

Fully digital OIML certified weighing indicator type 5024G with alibi memory and software for standard weighing applications. Digital signal processor for displaying and processing the data from the Eilersen range of digital load cells. Durable capacitive touch keyboard. Type: 5024G. Options: Panel mounting, Mounted in stainless steel housing, OEM version, Customized application software
