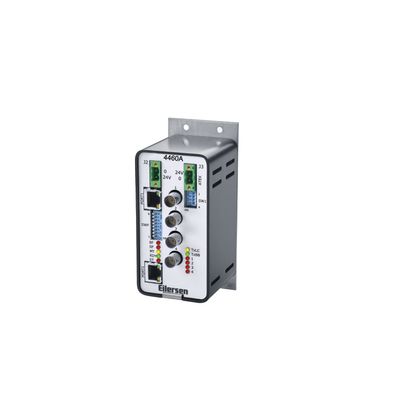

Model 4X60A -ATEX EtherCAT Interface Module
ATEX and IECEx certified (zone 1, 2, 21, 22) EtherCAT interface module for directly interfacing up to four digital ATEX / IECEx load cells via EtherCAT. The interface module type 4X60A can also be used in non-ATEX installations. Type: 4160A, 4260A, 4360A, 4460A. Interface: EtherCAT
Most popular related searches
- Made in Denmark
- EtherCAT interface
- Weighing module for up to 4 digital load cells
- For ATEX / IECEx and non-ATEX applications
- Plug-and-play installation with Eilersen digital load cells
- Advanced digital filters (configurable)
- A ”Digital Junction Box” that can be mounted near the load cells or in a central panel
- Small Form Factor
- Setup via dip switches
- For ATEX / IECEx installation when supplied by power supply type 4051A
- The power supply 4051A and module type 4X60A must be installed outside the hazardous zone
- Application software can be made by request
- Prepared for panel mounting on DIN rail
- Mounted in stainless steel housing
- Customized application software
- OEM version
