Elemko SA products

Insulating – water proofing putty for the protection against corrosion of underground connections. Also for corrosion protection of earth lead in rod Φ10mm or Φ16mm St/tZn or tape conductors at the point of exiting from concrete into air or from soil to air. It should be covered by 20cm at each side.Connection clamp for PV air terminal rod 6441101.

Earth pit, used for visual inspection of the earthing rod at its connection point, checking of the tightening of the earth electrode clamp and proper measuring of the earth resistance. On the pit cover is engraved the indication of the earthing symbol.

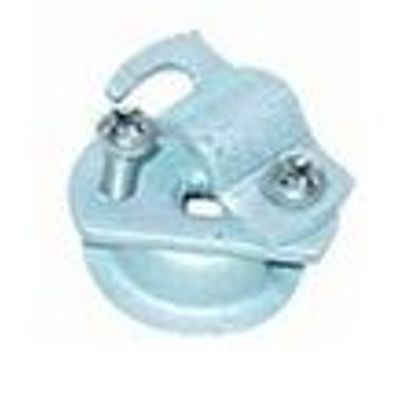

6101100 CONDUCTOR FASTENER Φ8-10mm UPAT St/tZn. Complying to IEC-EN 62561-4. For fastening Φ6, Φ8-10, conductors on brick or concrete walls. The fastener is equipped with a spacer and a wood fixing screw. A pvc wall plug Φ8 is needed for the fixation into the wall.

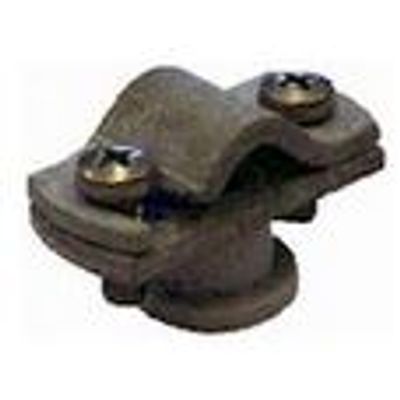

6101102 CONDUCTOR FASTENER WITH PLASTIC SPACER Φ8-10mm UPAT St/tZn. Hot galvanized steel St/tZn. Complying to IEC-EN 62561-4. For fastening Φ6, Φ8-10, conductors on brick or concrete walls. The fastener is equipped with a spacer and a wood fixing screw. A pvc wall plug Φ8 is needed for the fixation into the wall.

6101106 CONDUCTOR FASTENER UPAT Φ6 St/tZn. Hot galvanized steel St/tZn. Complying to IEC-EN 62561-4. For fastening Φ6, Φ8-10, conductors on brick or concrete walls. The fastener is equipped with a spacer and a wood fixing screw. A pvc wall plug Φ8 is needed for the fixation into the wall.

6101107 CONDUCTOR FASTENER WITH PLASTIC SPACER Φ6 St/tZn. Hot galvanized steel St/tZn. Complying to IEC-EN 62561-4. For fastening Φ6, Φ8-10, conductors on brick or concrete walls. The fastener is equipped with a spacer and a wood fixing screw. A pvc wall plug Φ8 is needed for the fixation into the wall.

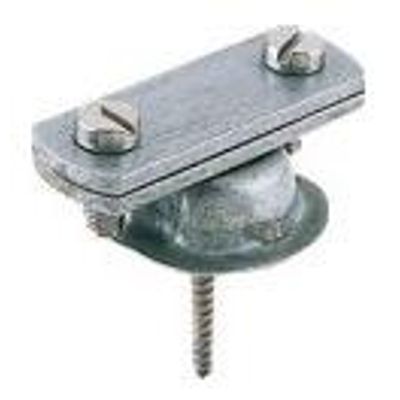

6101200 FASTENER St/tZn UPAT FOR TAPE TILL 30x3,5. Hot galvanized steel St/tZn. Complying to IEC-EN 62561-4. For fastening of tapes up to 30x6 or 40x6 mm on a concrete or brick wall. It is equipped with a round spacer and a wood screw in order to be mounted with wall plug which is not included.

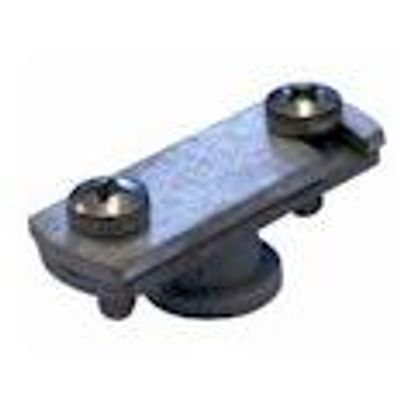

6101201 TAPE FASTENER 30x6 St/tZn WITH PLASTIC SPACER. Hot galvanized steel St/tZn. Complying to IEC-EN 62561-4.
For fastening of tapes up to 30x6 or 40x6 mm on a concrete or brick wall. It is equipped with a round spacer and a wood screw in order to be mounted with wall plug which is not included.

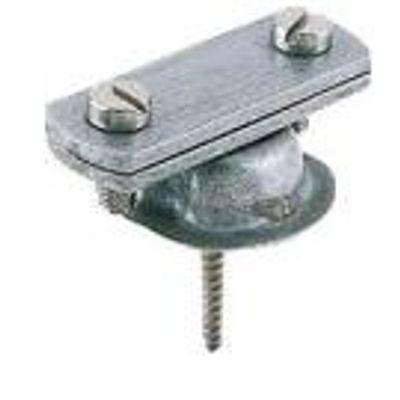

6101240 FASTENER St/tZn UPAT FOR TAPE TILL 40x4mm. Hot galvanized steel St/tZn. Complying to IEC-EN 62561-4. For fastening of tapes up to 30x6 or 40x6 mm on a concrete or brick wall. It is equipped with a round spacer and a wood screw in order to be mounted with wall plug which is not included.

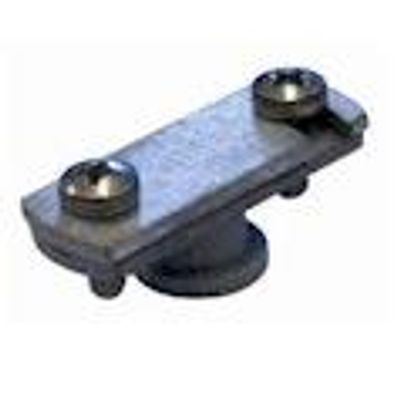

6101241 TAPE FASTENER 40x6 St/tZn WITH PLASTIC SPACER. Hot galvanized steel St/tZn. Complying to IEC-EN 62561-4.
For fastening of tapes up to 30x6 or 40x6 mm on a concrete or brick wall. It is equipped with a round spacer and a wood screw in order to be mounted with wall plug which is not included.
