EmiControls products

The new and restyled V22 is the most powerful dust-suppression machine in EmiControls’ product range. Due to its long projection range and integrated 350° pivot function, it is most suitable for dust-control applications covering large areas. The patented nozzle head and the outer nozzle ring generate a finely atomized mist, which binds the dust particles and prevents them from spreading. The projection distance of the inside nozzle head can be limited to close range by switching off the turbine. The angle of incline (-18 +40°) can be set with the user-friendly remote control. Typical fields of application for dust suppression with the V22 include all kinds of opencast mines, demolition sites, recycling plants, storage depots, loading facilities, landfill sites and woodworking shops.

V12 Odor is the name of a turbine unit developed specifically to combat foul smells. The nozzles generate a fine mist which is distributed over large areas by the turbine. Measured amounts of biological substances are added to prevent the release of unpleasant smells. With a projection range of 50 m, it can also inhibit nuisance smells in large-scale complexes. The pivot function integrated in the turbine is another key advantage. The V12 Odor boasts low water consumption combined with a high level of efficiency. It is operated by remote control or keypad. The V12 Odor can be used in any places subject to the build-up of unpleasant smells like biogas and recycling plants or composting sites.

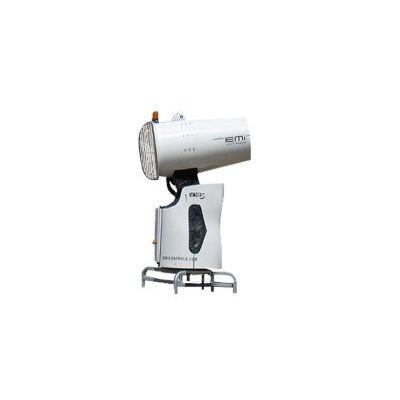

The V7 is the the V12 dust controller’s little sister. The patented nozzle head on the V7 is fitted in the axial direction in the turbine and achieves a much higher projection range than comparable nozzle configurations. It has a booster pump and can therefore also be used with the turbine switched off. The user-friendly remote control system, the 52° tilt angle, 360° pivoting angle and the booster pump with automatic protection against freezing and running dry all combine to make the V7 into a reliable, flexible and compact dust-controller. Typical fields of application include recycling plants, material handling & reloading facilities, woodworking and relatively small demolition jobs.

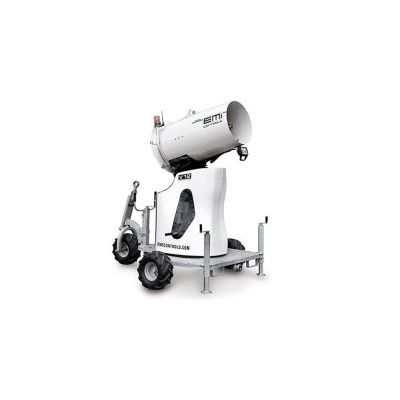

The V12 is an all-purpose, powerful and environmentally-friendly dust-control solution. With its 52° tilt angle and 360° pivoting angle, the high-performance turbine is geared up for the widest possible operating range. Special nozzles with a ceramic insert generate a fine mist which is highly effective at binding the dust particles at source. State-of-the-art valve technology and an optional second nozzle ring guarantee efficient water useage. Various add-on options make the V12 a universal dust-control system. The machine is easy to operate by remote control, via a touch panel on the electric cabinet or a software application. Opencast mines, demolition sites and recycling plants are typical fields of application for the V12.

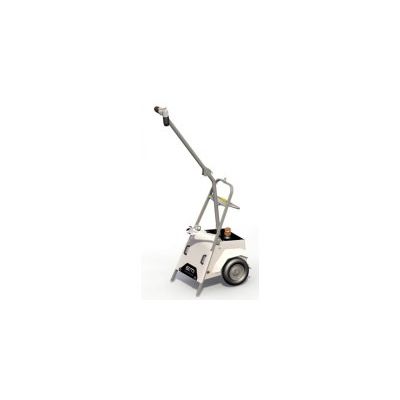

The L3 lance is the first dust-control lance on the market. It is a compact and user-friendly solution for close-range applications. It works without a turbine, allowing it to get near to the source of dust. The spray action can be narrow and flat, fan-shaped or cylindrical, depending on the requirements in any given case. With its flexible spray head, the fine mist jet with its optimized droplet size and quantity can be pivoted horizontally up to 360° and tilted in many different directions from -6° (default factory setting) to +60° by local or remote control. This makes the L3 equally suitable for indoor use and for dust control in recycling plants, crushing plants, on tunnel construction sites, industrial sites, and walkways to factory buildings.

Mobile or fixed dust controllers and odor-reducing machines. In addition to customized nozzle system installations, EmiControls also offers standardized dust controllers. Turbine models are made as well as dust-control lances. Both work in the same way. The nozzles generate a fine mist which binds the dust particles at source. All the models are made with high-quality and long-lasting components.

The V12Sm is the mobile solution to all your dust problems. It was designed on a platform so as to be loaded by any truck with a 6m (20 foot) loading bridge. It is the ideal solution for all the applications where the lack of water and power does not allow the use of standard equipment. The system can operate autonomously up to a maximum of 8 hours (with 20l/min.). Thanks to its small size the V12Sm can be easily shipped around the world. The unit is equipped with the latest generation of V12S which is faster and more compact, the water cistern of 10,000 liters (2642 US gallons) is made with special bulkheads on the inside to prevent excessive water motion. The power generator mounts an engine with emission Level 3A and delivers 60 kVA, so as to ensure proper operation of the unit.

The E46 is proposed as an effective solution to increase the Evaporation of at least 10-12 times that normally would occur on the covered surface. The atomization of the water takes place by pumping the water through special nozzles designed to exploit the Venturi effect to aspirate air so as to obtain drops with a high Evaporation potential. The nozzles are also designed to minimize the effect of drift of the atomized water to remedy as much as possible the dispersion in the event of wind, in this manner everything that is not evaporated falls in the vicinity of the machine avoiding contaminating areas that are outside of the basin.

The fully-automatic V12S offers a universal, powerful and super silent environmentally-friendly dust control solution. The high-performance turbine with linear injection geometry of the water is an optimal solution for very precise throw. The turbine has the ability to run at 2 speeds giving the turbine the flexibility to throw the atomized water from 10 meters to over 50 meters. Special nozzles with ceramic inserts produce the fine water spray, which effectively lays the dust particles directly at the source. The latest valve technology and an selectable second nozzle ring guarantee efficient water flow.

FT stands for Firefighting Turbine which is the versatile EmiControls mist cannon. The turbine is fitted with a nozzle ring which atomizes water and extinguishing foam to form fine particulate matter. This water or water/foam particulate matter is distributed by a propeller. The spray action is variable, ranging from a mist which spreads over a wide area to a water jet with a remarkable projection range. The particulate matter is more efficient at fighting fire and has a much higher cooling capacity than conventional systems
