Emilos SRL products

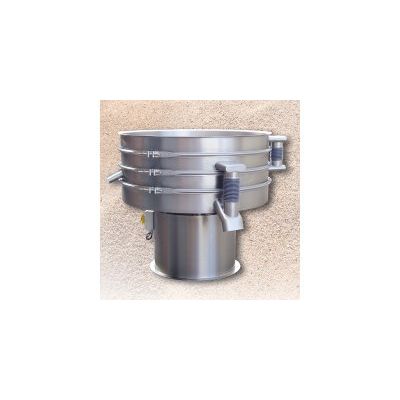

Monolithic convex shaped container. Ideal for use in the food, chemical and pharmaceutical industries. The Emilos brand vibrator motor provides a three-dimensional movement (sussultatory, undulatory and rotary), such as to keep the filtering screen clean and free of blockages. Used to sieve dense, viscous, liquid and very difficult products.

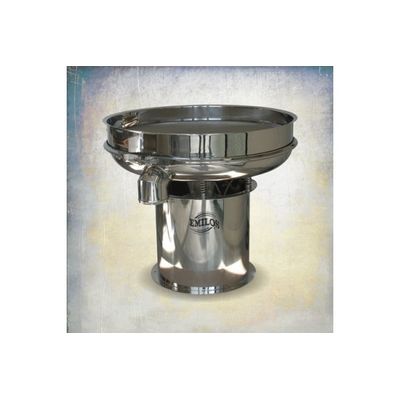

Container with conical convex shape. Its strong point is that the vibrator motor is very close to the screen which ensures better performance. The Emilos brand vibrator motor provides a three-dimensional movement (sussultatory, undulatory and rotary), such as to keep the filtering screen clean and free of blockages. Used to sieve dense, viscous, liquid and very difficult products.

Truncated-cone shaped container. Distinguished by a very simple design, practicality and elegance. The Emilos brand vibrator motor provides a three-dimensional movement (sussultatory, undulatory and rotary), such as to keep the filtering screen clean and free of blockages. Used above all to sieve solid and liquid food products because it is without welds and/or rough parts.

Truncated-cone shaped container. The major feature of this vibrating screen is that it discharges directly on the bottom, not at the side like traditional vibrating screens. It features 2 vibrator motors, not made by Emilos, providing a two-dimensional movement (sussultatory and undulatory). Generally used as a control screen and can be integrated with a bag-emptying system. This vibrating screen is suitable for sieving dry products with little residue.

Entirely made of aisi 304 stainless steel (316 as an alternative). It is used for sieving dense and viscous products, both liquid and solid, which are very difficult to handle.

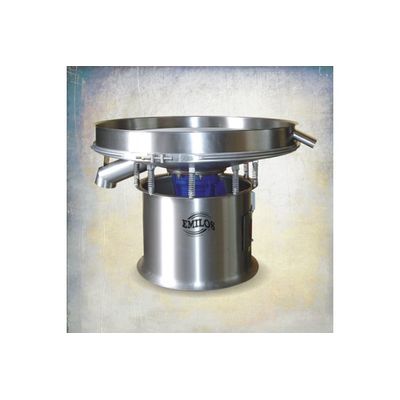

Truncated-cone shaped container. The Emilos brand vibrator motor is designed to provide a three-dimensional movement (sussultatory, undulatory and rotary), such as to keep the filtering screen clean and free of blockages. A prominent feature of this series of vibrating screens is the particularly practical knob tightening.

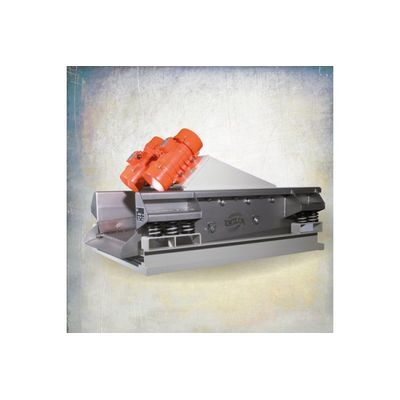

Rectangular shaped, it is an excellent roughing unit. It is used to sieve solid and liquid products with a lot of residue. The main feature of this vibrating screen is that it discharges directly on the bottom, not at the side like traditional vibrating screens. It features 2 vibrator motors, not made by Emilos, providing a two-dimensional movement (sussultatory and undulatory).

Entirely made of aisi 304 stainless steel (316 as an alternative). The container of this vibroscreen has a truncated-conical shape and it is directly connected to the vibrator motor. The features of the vibrator motor are considered as three-dimensional because the motion is at the same time sussultory, swaying and rotary; this makes sure that the screen is not clogged up and therefore cleaner throughout the whole production process. It features a 2 pole motor vibrator and an inverter can be mounted to change its frequency.

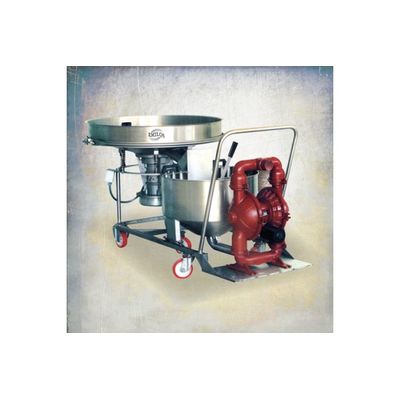

Accessorized with tray, electric centrifugal pump or diaphragm pump and magnetic separators. Container with truncated-cone shape (SL), conical convex shape (CR) or monolithic convex shape (CRS). The Emilos brand vibrator motor provides a three- dimensional movement (sussultatory, undulatory and rotary), such as to keep the filtering screen clean and free of blockages. The main feature of this vibrating screen is that it is ‘ALL IN ONE’; a single unit, conveniently wheeled so it can be moved when required.
