Energetiq Technology, Inc. products

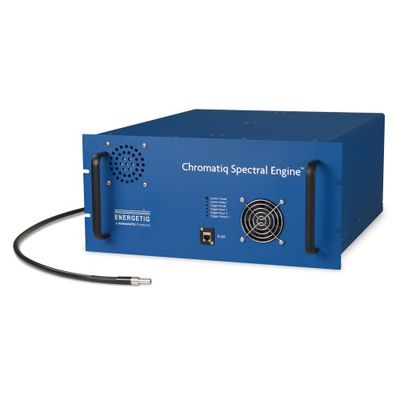

Now featuring extended near-infrared (NIR) wavelengths | 380 nm to 1,100 nm. The Chromatiq Spectral Engine™ (CSE) is a sophisticated light source capable of matching real-world lighting conditions, emulating illuminant standards, and creating custom spectra. Our award-winning  Chromatiq Spectral Engine™ now features extended near-infrared (NIR) wavelengths that cover the full active range of silicon-based detectors, from 380 nm to 1,100 nm, offering precise alignment between light source and detector.

Traditional calibration sources for radiometric calibration, such as Deuterium, Quartz Tungsten Halogen, and Xenon-arc, all have limitations in spectral range. No one source covers the full UV-Visible range from 200nm-800nm with output at comparable levels across that spectrum. In addition, traditional sources require recalibration after 100 hours or less of use and lamp replacement typically after 500 hours. With its revolutionary Laser-Driven Light Source™ (LDLS), Energetiq offers a calibration solution that addresses these limitations and provides a single, broadband, high brightness source for radiometric calibration.

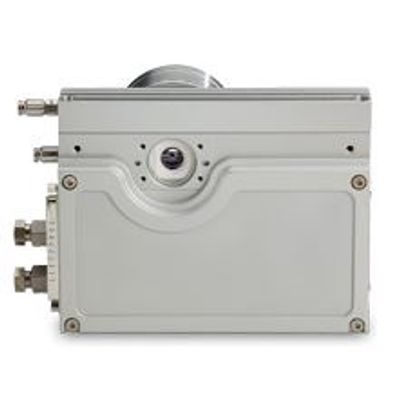

Based on the highly successful Laser-Driven Light Source (LDLS) technology, the EQ-77 offers the highest radiance and irradiance  available in a truly broadband white light source. The EQ-77  features a compact lamp house, with clean construction that ensures long life and ultimate stability. With a 170nm-2100nm wavelength range and a single-beam output with retro-reflector, the EQ-77 is flexible for a broad variety of applications.  Researchers using light for imaging and analytical spectroscopy in a variety of applications in the life sciences and materials sciences need light sources capable of providing extreme high brightness and power across a broad wavelength range.

Based on the highly successful Laser-Driven Light Source (LDLS) technology, the EQ-400 offers the highest radiance and irradiance available in a truly broadband white light source. The EQ-400 features a compact lamp house, with clean construction that ensures long life and ultimate stability. With a 170nm-2100nm wavelength range, and a choice of source dual-beam output or a single-beam output with retro-reflector, the EQ-400 is flexible for a broad variety of applications.

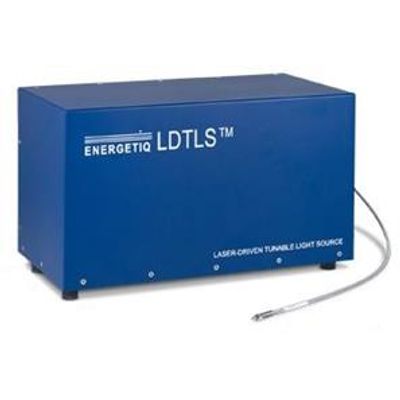

The Laser-Driven Tunable Light Source (LDTLS) is a compact, fully integrated and highly stable tunable broadband light source that is based on our proven Laser-Driven Light Source (LDLS) technology. The LDTLS utilizes our EQ-77 LDLS broadband source and features the highest brightness and output flux available in a tunable broadband light source. The LDTLS offers an extremely long lifetime of ~10,000 hours between bulb changes for low cost of ownership. It has high stability, very low noise and is coupled with a precision high-performance monochromator for accurate wavelength selection and repeatable light output across the range of 300nm-1100nm.

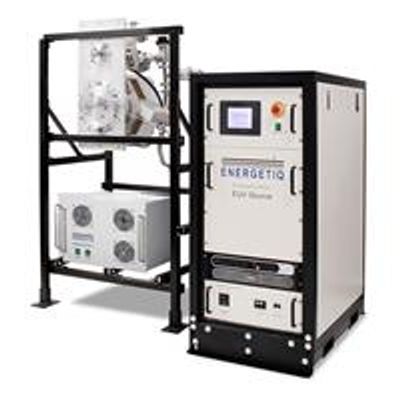

Researchers into the emerging technology of EUV lithography need a source of EUV photons for a variety of applications. Existing sources of light are often too low in power, unreliable in operation, large, costly and complex. The EQ-10 is a compact, easy-to-use, reliable, and cost-effective EUV light source, based on Energetiq`s proven Electrodeless Z-pinch technology using Xenon gas. The EQ-10 EUV source is uniquely suited for metrology and research applications. The EQ-10 has become the workhorse EUV source for the EUV community, through its proven reliability, ease of use, and low operating cost.

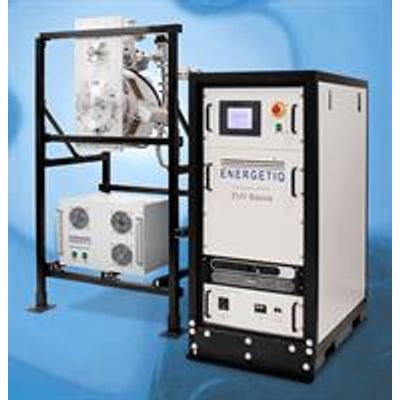

EUV sources for HVM are expected to operate at pulse repetition rates of 10 kHz or higher. To simulate the effects of operating at such pulse rates on the optics lifetime, for example, high repetition rate metrology sources are needed. The Energetiq EQ-10HR EUV Source is a compact, easy-to-use, reliable, and cost-effective EUV light source, based on Energetiq`s proven Electrodeless Z-pinch technology using Xenon gas. The EQ-10HR high repetition rate EUV source is uniquely suited for metrology and research applications where simulation of HVM is required.

Researchers into the emerging technology of EUV lithography need a source of EUV photons for a variety of applications. Existing sources of light are often too low in power, unreliable in operation, large, costly and complex. The EQ-10HP is a compact, easy-to-use, reliable, and cost-effective EUV light source, based on Energetiq`s proven Electrodeless Z-pinch technology using Xenon gas. The EQ-10 EUV source is uniquely suited for metrology and research applications. The EQ-10 has become the workhorse EUV source for the EUV community, through its proven reliability, ease of use, and low operating cost.

Soft x-rays (SXR) for water-window microscopy and other applications have not readily been available outside synchrotron facilities. Now, soft x-rays can be produced in any research laboratory at flux levels suitable for imaging and microprobing, thanks to a new lab-scale source from Energetiq. The Energetiq EQ-10SXR is a compact, easy-to-use, reliable and cost-effective SXR light source system, based on Energetiq’s unique Electrodeless Z-pinch technology using Nitrogen gas.
