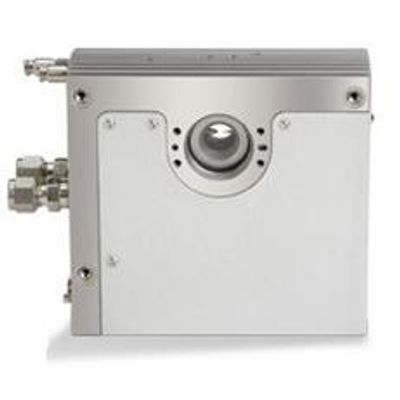

EnergetiqModel EQ-400 LDLS -Ultra-High Radiance, Broadband Laser-Driven Light Source

SHARE

Based on the highly successful Laser-Driven Light Source (LDLS) technology, the EQ-400 offers the highest radiance and irradiance available in a truly broadband white light source. The EQ-400 features a compact lamp house, with clean construction that ensures long life and ultimate stability. With a 170nm-2100nm wavelength range, and a choice of source dual-beam output or a single-beam output with retro-reflector, the EQ-400 is flexible for a broad variety of applications.

Most popular related searches
  • Radiance >100mW/mm2.sr.nm
    • Fastest measurements
  • Very low noise and excellent spatial stability
    • Precise & repeatable results
  • Dual beam output or higher-output Single-beam (using integrated Retro-reflector) for flexibility
    • For optical flexibility
  • Compact lamphouse with water-cooling and clean construction
    • Long life and stability
  • Extreme high brightness across broad spectrum
    • UV-Vis-NIR (170nm – 2100nm)
  • Electrodeless operation
    • Long life and low cost of ownership
  • Semiconductor Metrology & Inspection
  • Monochromator Source
  • UV-Vis-NIR Spectroscopy
  • Photoemission Electron Microscopy (PEEM)
  • Materials Characterization
  • Advanced Imaging
  • Thin-Film Measurements
