Environmental Mechanics AB products

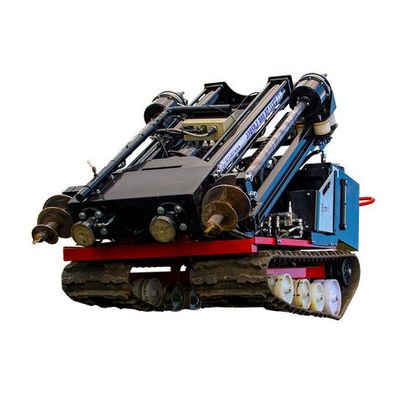

Officially on the market since the fall of 2018, the new Envi Compact Crawler weighs less than a ton and yet gives you a push force of 20 tons. Carrying up to forty one meter rods the machine can easily be operated by one person. The crawling capacity makes covering terrain super easy and effortless. Wide belts can carry the crawler also on very soft soil. Powerful integrated anchoring auger engines makes site setup fast and effortless. With our newly developed Envilogger C2, Durabook tablet PC and our application suit installed - the Envi 20 ton Compact Crawler is ready for the field! The machine is then prepared for using the Memocone CPT and the Memovane Vane shear test equipment.

The pusher is small enough to be transported on a pick-up truck or on a trailer. The anchoring system operated by two persons will anchor the pusher in all types of soils. The two hydraulic cylinders have a stroke of > 1 m so you can push 1 meter rods in one stroke. The pusher is manufactured in Sweden. This pusher is the second generation pusher sold by Envi. It succeeds the successful pusher manufactured in Thailand that was earlier resold by Envi.

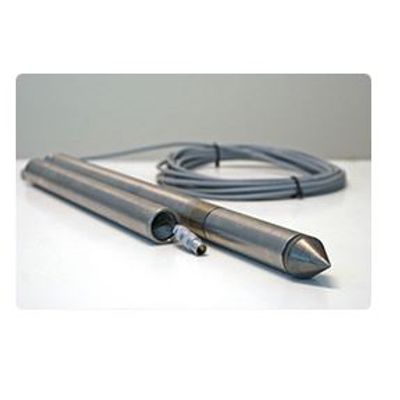

When you use this version you need to have a wire from probe up to logger unit on ground surface. Advantages are that data is continuously sent to surface and that you need no batteries. It may also be an advantage if you want to piggyback units from different vendors.

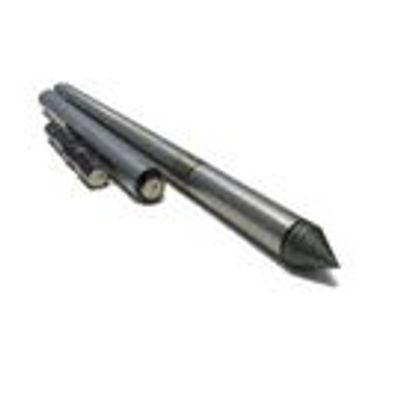

The advantage of using this version is that you need no wire connecting the probe with the logger on ground surface. The unit is powered by batteries which can be regarded as a drawback. However the batteries last for at least one full day! Disadvantage is that you can’t see e.g. inclination in real time during the push but on the other hand you can read the push force from your rig/pusher and deduce a lot from that.

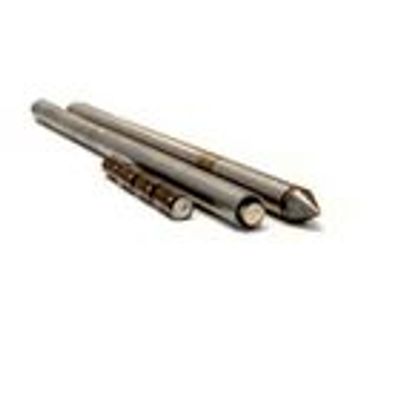

With this version you need no wire but you still have real time data allowing ground surface real time monitoring of all parameters. The acoustic system will send data acoustically from probe to surface. You need batteries but they work for a whole days work so it has little negative impact. You need a microphone mounted appropriately (not permanently) on your rig to be able to receive the acoustic signal from the probe. The microphone is easily mounted using our holder or by other means.

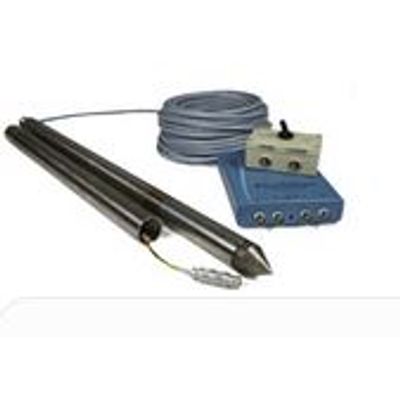

Our seismic add-on can also be run stand-alone but that is not the common procedure. A triaxial accelerometer is used in current version. A digital oscilloscope is used to receive, record and present seismic waves (P and S waves). The add-on can be run together with the Memocone and is activated by a simple change of a switch. The seismic add-on works with the corded Memocone.

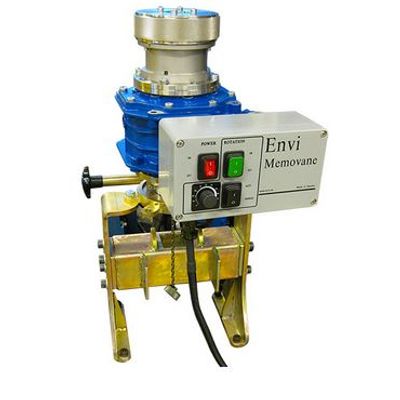

You can run the system as a traditional vane system with torque measurement above ground, but you can (and should) also use the probe that we call Memovane™ for measuring torque directly on the vane without friction losses. After completing a vane tests in one hole you can create a file with resulting data. The system also creates a report with graphs showing measured torque at failure and a table of shear strength and sensitivity etc:

A logger for recording drill data (also known as MWD). This system has been installed on several types of rigs including geotechnical drill rigs, well drill rigs and diamond core drill rigs. All parts in this system are IP67 or better. You need a Laptop or equivalent to run application software and to have an interface for presentation.

Our new generation of CPT data logger, the Envi Logger C2, was officially put to market during the fall of 2018.

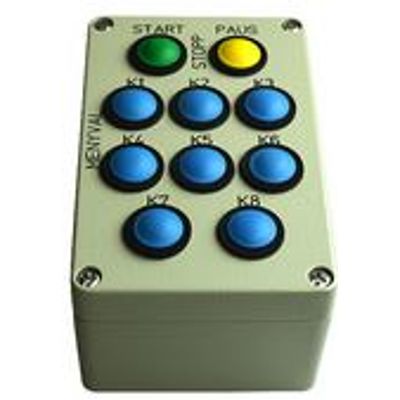

The new keypad for controlling Envi logger systems is mainly intended for the G1 system for drill data recording. The keypad will make it a lot easier and faster to control and maneuver the G1 system.
