Exacon Inc. products

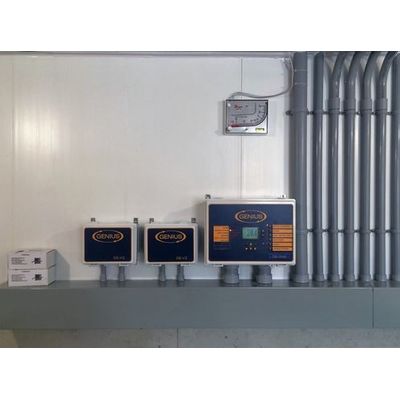

The Genius 6x Series can operate 1 to 4 variable stages by adding a GE-V1 module (1 stage variable) or 1 or 2 GE-V2 modules (2 stage variable). There are up to six 10amp relays, depending on the model chosen, that can be used for cooling, heating, heating pad, clock output, sprinkler or misting. One alarm relay and up to two 0-10 chimney dampers can be controlled by adding GE-MO10, 0-10v modules. The Genius Series can be ordered with an internal 120volt inlet board (in1/120kit) or a two inlet board (in2/120kit). All Genius models can operate up to two additional inlets by adding a GE-air/1 or a GE-air/2 inlet module (also compatible with VPM-2, VSM-2 and SVIM-1 inlet modules). Up to five 10k sensors may be used with one being designated for outside use.

Note: 3 year motor warranty.120 / 240 volt fans may be operated one speed or variable speed. 36″ fans are variable down to 120 volt only. 10″ fans are not available in “Q” style. * 3 Phase available.

Easy to view (2-1/2″ x 1-3/4″) LCD screen. 6 HOT key pads. 4 variable stages, 6 amp c/w ability to boost 10 more amps by using GE-V1 or GE-V2 modules. NOTE: Two of the variable stages can be used as manual variable stages to run circulation fans. 10, 15 or 20 2HP relay contactors for up to 12 cool stages, 6 heat, 2 clocks c/w 6 off/on cycles, 1 mist and 6 inlets (NOTE: each inlet requires 2 relays). Program features SolarWall Boost Logic, outdoor compensation, temperature and min speed curves, dehumidification logic, night set point, water counter (1), natural ventilation and tunnel logic to operate curtains and tunnel inlets by time mode or potentiometer feed back.

When these inline duct blowers were conceived, reliability and efficiency were the main goal. Its more powerful motor combined with its aerodynamically designed shape make VORTEX POWERFANS the performance leader in its category.

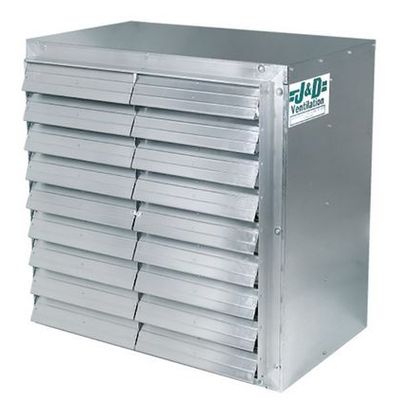

18 gauge galvanized box fan. Aluminum shutters w/ tie bar. 1″x2″ wire mesh hot dip galvanized guard. Galvanized blade. 2 year warranty.

One super zone or up to 4 zones amongst which the available inputs and outputs are divided. The iTouch Control system will consist of one master control combined with optional slaves, modules and optional boards to provide a complete ventilation system.

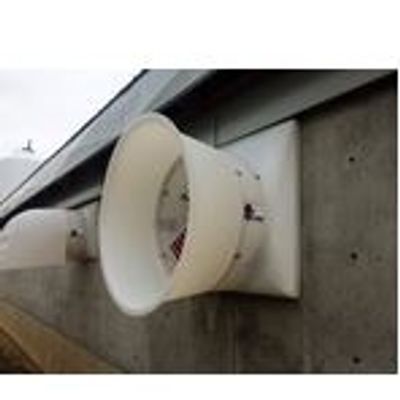

Flush mount direct drive exhaust fans. C/w ‘Q’ Multifan motors (240 Volt). Inside suction type pvc shutters, polyethylene housing, polypropylene blades, energy efficient, splash proof, variable speed motors, and automatic thermal protection.
