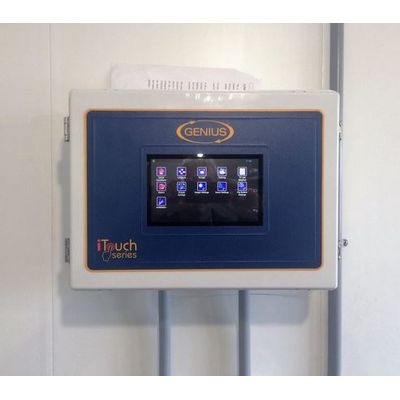

Genius - Model iTouch Series - 10" Touch Screen Control System
One super zone or up to 4 zones amongst which the available inputs and outputs are divided. The iTouch Control system will consist of one master control combined with optional slaves, modules and optional boards to provide a complete ventilation system.
-
Most popular related searches
Product Details
Feeders, feed augers, water meters, poultry scales, bin scales and lights can be assigned to one or more zones. The Genius iTouch control has built in Wi-Fi to enable access to the FarmQuest where you can manage your operation from anywhere internet is available to your PC or Smart phone.
Exacon has created two models: a base model from which you can add optional boards to suit your application or a deluxe model with optional boards pre-installed. Both models can be one large zone, two zone, three zone, or four zone.
This deluxe model includes the following input and communication boards: X1199, X1201, X1205 8 pot. board, X1276, X1399 boards (8 input configurable). Also includes 12 communication ports for various options. The deluxe model will then provide the following possible options by adding just the required hardware or items:
- 10 temperature inputs or up to 16*
- 4 duration sensors inputs (current sensor for feed) or up to 12*
- 4 pulse count input (water meter) or up to 12*
- 4 humidity probes options
- 4 bird scales comm. ports
- 4 bin scales communication ports
- 4 GEV2/S/LED for 120V modules c/w manual overrides for LED lights
- 4 GEV//MS or GE/MS 0-10V modules c/w manual overrides for variable stages or frequency drives
- 2 0-10v outputs for variable stage modules or frequency modules
- 1 communication port for GE-CBW batch feeding module
- X1399 board provides 8 configurable inputs that would increase the capacity for 8 additional or a combination of 8 temperature probes, duration counters (current sensors), or pulse counters (water meters)
- Additional 8 or 16 potentiometer inlets can be added by adding one or two X1205 8 pot board
- NOTE: A relay slave would likely be required
