Excelitas Technologies products

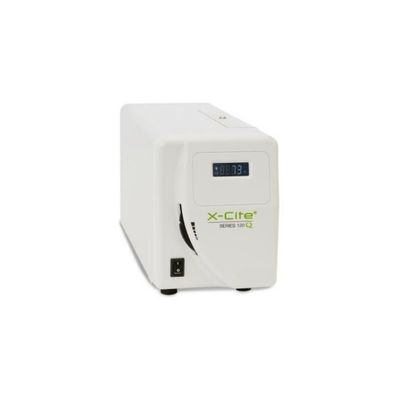

The X-Cite 120Q delivers rich spectral excitation and uniform wide-field fluorescence illumination to the sample plane. Designed with our proprietary Intelli-Lamp® technology for maintaining optimum lamp temperature and automatically accumulating lamp hours, the X-Cite 120Q provides more than 2000 hours of life. Its 120 Watt lamp is pre-aligned allowing a simple, one-step process for replacements.

The X-Cite® 120PC Q offers the same performance and convenience as the X-Cite 120Q fluorescence illumination system - rich spectral sample excitation with a uniformly illuminated field-of-view, the convenience of pre-aligned lamps, 2000 hour lamp lifetime, and adjustable iris - with the added option and benefits of a computer controlled microscope light source. The straightforward RS-232 communication and command set easily allows integration into automated systems, as well as commercially available imaging software platforms. X-Cite 120PC Q is also available for online purchasing at Digi-Key.com.

The award-winning X-Cite XLED1 is a high-power LED light source designed to optimize fluorophore excitation with unmatched LED switching speeds. Its unique plug-and-play modularity allows the system to evolve alongside changing research applications, with easily interchangeable LED modules. With unprecedented wavelength switching speeds to capture fast cell dynamics and advanced triggering options, the X-Cite XLED1 represents the industry`s next generation of fluorescence LED illumination.

The X-Cite 110LED is a compact, white light LED light source for fluorescence imaging applications. Providing excitation for DAPI, GFP, mCherry and Cy5 routine imaging, the X-Cite 110LED offers exceptional field uniformity through liquid light guide delivery. With manual, PC and TTL control, the X-Cite 110LED has LEDs guaranteed for 25,000 hours with no lamps or modules to replace.

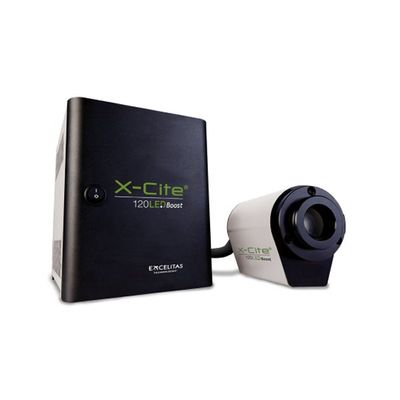

The X-Cite 120LEDBoostis more powerful than ever and efficiently excites a greater range of fluorophores than the original X-Cite 120LED, with no compromise. Even the popular red fluorophores are no challenge for the X-Cite 120LEDBoost. The X-Cite 120LEDBoostoffers superior optical power and exceptional field uniformity at the specimen level with the broadest spectrum of fluorescence illumination through manual, PC and TTL control. With LEDs guaranteed for 25,000 hours and no lamps or modules to replace, X-Cite 120LEDBoostoffers sheer simplicity and convenience to researchers allowing them to focus on their experiments instead of equipment maintenance.

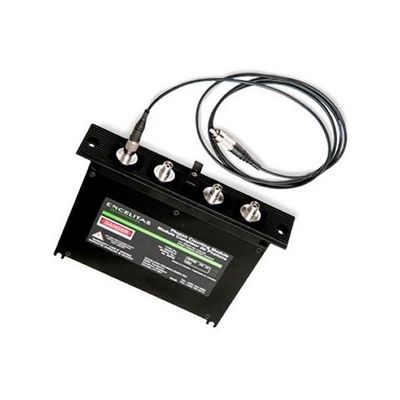

The Excelitas family of Single-Photon Counting Modules (SPCMs) are self-contained modules that meet the low-light-level detection demands of confocal microscopy, fluorescence, luminescence, and TCSPC, particle sizing and Quantum Communications. Our SPCMs offer market-leading Photon Detection Efficiency (PDE), low after-pulsing, highest uniformity over the active area, high linear dynamic range, and low dark counts.

The SPCM-AQRH uses a unique silicon avalanche photodiode (SLiK) with a circular active area, achieving peak photon detection efficiency greater than 70% at 650 nm over a 180 µm diameter, with unmatched uniformity over the full active area. A TTL-level pulse is generated for each photon detected and the signal is available at the BNC connector at the rear of the module.
