Faab Industries products

MATERIAL OF CONSTRUCTION: Lined pipes are manufactured using Carbon Steel pipe material as per ASTM A106 Gr. B, seamless as per schedule 40 for lining spools of 1” to 8” size, sch 30 for 10" to 12" and sch 20 for 14" to 24".

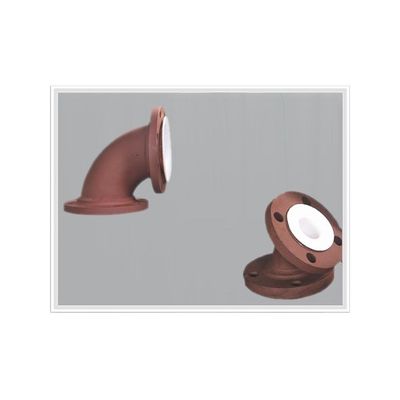

MATERIAL OF CONSTRUCTION: Lined elbows are manufactured using Carbon Steel material as per A234 WPB schedule 40 for sizes 1” to 12” and sch 20 for 14" to 24".

MATERIAL OF CONSTRUCTION: Lined tee are manufactured using Carbon Steel material as per A234 WPB schedule 40 for sizes 1” to 12” and sch 20 for 14" to 24".

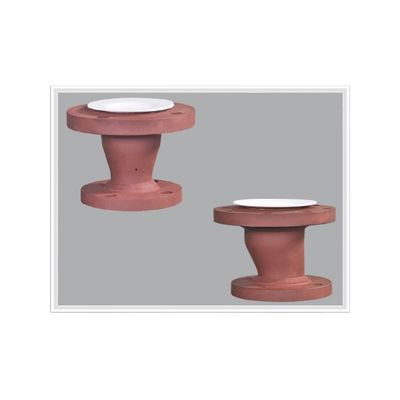

MATERIAL OF CONSTRUCTION: Lined reducers are manufactured using Carbon Steel material as per A234 WPB schedule 40 for sizes 1” to 12” and sch 20 for 14" to 24".

MATERIAL OF CONSTRUCTION : Lined reducing flanges are manufactured using Body material as per A105 forged flanges/ IS 2062 Gr. B for sizes 1" to 24", drilling and dimensions are as per ANSI B 16.5 ASA 150#.

MATERIAL OF CONSTRUCTION : Lined instrument tees are manufactured using Body material as per A105 forged flanges/ IS 2062 Gr. B for sizes 1" to 24", drilling and dimensions are as per ANSI B 16.5 ASA 150#.

Bellows are made of pure virgin paste extruded PTFE. They serve for the compensation of vibrations.

BODY: Ductile Iron A395 or WCB A216, Lining PFA – D3307 Type II or FEP – D2116 Type III; END PIECE: Ductile Iron A395 or WCB A216, Lining PFA – D3307 Type II or FEP – D2116 Type III

BODY: Ductile Iron A395 or WCB A216, Lining PFA – D3307 Type II or FEP – D2116 Type III; DISC LINING: PFA – D3307 Type II or FEP – D2116 Type III

BODY: Ductile Iron A395 or SS A351 CF8, Lining PFA – D3307 Type II or FEP – D2116 Type III; VALVE SEAT: PTFE / GFT D1457
