Faab - PTFE Lined Elbow

• Product Name: Ptfe Lined Elbow 90 And 45 Degree
• Product Code : Elbow
• Product Display Name : Lined Elbow

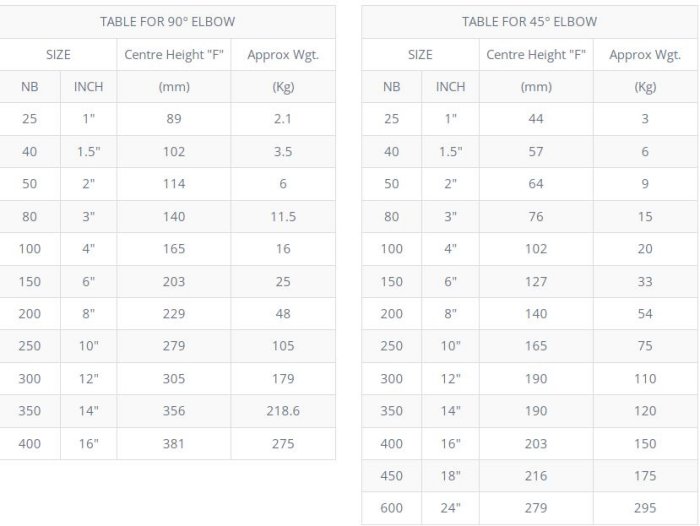

SIZE RANGE: 1” – 24”

MATERIAL OF CONSTRUCTION: Lined elbows are manufactured using Carbon Steel material as per A234 WPB schedule 40 for sizes 1” to 12”
and sch 20 for 14" to 24".

Material Test Certificates (MTC) can be supplied along with heat numbers on demands.

Flange material is as per A105 forged flanges/ IS 2062 Gr. B and dimensions are as per ANSI B 16.5 ASA 150#.

We manufacture standard 45° and 90° elbows which are always in stock with us and can also manufacture special elbows as per customer`s requirements.

LINING MATERIAL: PTFE (POLY TETRAFLUORO ETHYLENE) / PP (POLY PROPELENE) / HDPE (HIGH DENSITY POLYETHYLENE) /
FEP (FLUORINATED ETHYLENE PROPYLENE) / PFA (PER FLUOROALKOXY) / PVDF (POLYVINYLIDINE FLUORIDE)

Short Description: CS - PP / PTFE / FEP / PFA / PVDF / HDPE  LINED ELBOW

Features & Specifications: PAINTING RED OXIDE PRIMER
