Falcon Pumps Pvt. Ltd products

Motor portion covered with corrosive resistance Stainless steel (SS 204cu) shell. More durability and hygiene. High operating efficiency. Specially designed thrust bearing to withstand high axial thrust load. Extremely hardwearing water lubricated bearing. Thread type motor construction ensures service feasibility. Specially designed Deep Drawn type pump ensures perfect alignment and Thereby increases the life of the pump set.

Material Of Construction - Motor: Oil Seal : Nitrile butyl rubber. Motor Shaft : SS - 420. Motor Body Pipe : J4. Motor Bush : LTB-4 / Teflon. Thrust bearing assembly : SS - 420 & Carbon. Diaphragm : High Nitrile Butyl Rubber. Motor Base : Cast Iron / SS - 304. Housing Set : Cast Iron / SS - 304.

Material Of Construction - Motor: Oil Seal : Nitrile butyl rubber. Motor Shaft : SS - 420. Motor Body : Cast Iron / J4. Motor Bush : LTB-4 / Teflon. Thrust bearing assembly : SS - 420 & Carbon & Teflon. Base : Cast Iron. Bracket : Cast Iron. Flange : Cast Iron. Casing : Cast Iron. Impeller : Cast Iron.

Material Of Construction - Motor: Oil Seal : Nitrile butyl rubber. Motor Shaft : SS - 420. Motor Body : J4. Motor Bush : LTB-4 / Teflon. Thrust bearing assembly : SS - 420 & Carbon. Base : Cast Iron. Housing : Cast Iron. Flange : Cast Iron. Suction : Cast Iron. Impeller : SS-304. Bowl : SS-304.

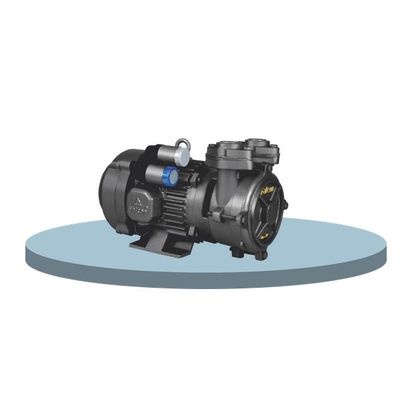

Falcon Nano Series: Self Priming Monoblock Pumps: Falcon Nano, Self Priming Monoblock pumps are best suited for domestic water supply. Energy efficiency and low maintenance issues are what makes the Nano 50 perfect for domestic use. Designed with impeccable raw material and advanced designs, the Nano 40 offers unbeatable performance at an unbelievably low operating cost.

Falcon Nano Series: Self Priming Monoblock Pumps: Falcon Nano, Self Priming Monoblock pumps are best suited for domestic water supply. Energy efficiency and low maintenance issues are what makes the Nano 50 perfect for domestic use. Designed with impeccable raw material and advanced designs, the Nano 50 offers unbeatable performance at an unbelievably low operating cost.

Material Of Construction - Motor: Gland Dori : Graphite String. Motor Shaft : EN-19 with SS SLEEVE. Motor Body : FG-250. Bearing : SKF. End Cover : FG-250. Bracket : FG-250. Flange : FG-250. Casing : FG-250. Impeller : FG-250. Cooling Fan : Aluminum.

Material Of Construction - Motor: Mechanical Seal : Carbon & Ceramic. Motor Shaft : SS-410. Motor Body : FG-250. Bearing : SKF. End Cover : FG-250. Bracket : FG-250. Flange : FG-250. Casing : FG-250. Impeller : Brass. Cooling Fan : Plastic.

Material Of Construction - MOTOR: Body Lock : Spring Steel. Stud Ring : M.S. (Zinc Coated). Stator Stamping : CRNGO - M45 Silicon. Winding Wire : 100% EC Copper. Shaft : SS-420. Rotor Stamping : CRNGO - M45 Silicon. Copper Lamination : 100% EC Copper. Upper Housing : SS-304. Lower Housing : SS-304. Connection Piece : SS-304. Oil Seal : NBR. TB Set : Carbon + SS. Base : SS-304. Drain Plug : Brass. Couple Sleeve : Stainless Steel. Water Bolt : Brass.
