Ferrum AG products

Model: WD 250. Bowl diameter (mm): 250. Bowl slenderness: 4. Bowl rotary speed (1/min): 5000. Gearbox: 2-stage planetary, ratio 1:63. Materials: Bowl, Screw conveyor, covers – SS/Duplex, frame carbon steel. Angle of conical side: 8,5. Protection of screw conveyor: Standard – flame spray. Bowl internal lining: Raw strips, not spray welded. Power (kW): Main drive: 11, Back-up drive: 3. Diamensions (m): Length: 2,3, Width: 0,7, Height: 0,9. Weight ( kg ) : 900.

Model: WD 350. Bowl diameter (mm): 350. Bowl slenderness: 4,5. Bowl rotary speed (1/min): 4200. Gearbox: 2-stage planetary, ratio 1:80 or 1:160. Materials: Bowl, Screw conveyor, covers – SS/Duplex, frame carbon steel. Angle of conical side: 8,5. Protection of screw conveyor: Standard – flame spray. Bowl internal lining: Raw strips, not spray welded. Power (kW): Main drive: 17,5, Back-up drive: 11. Diamensions (m): Length: 3,07, Width: 0,93, Height: 1,28. Weight ( kg ) : 1900.

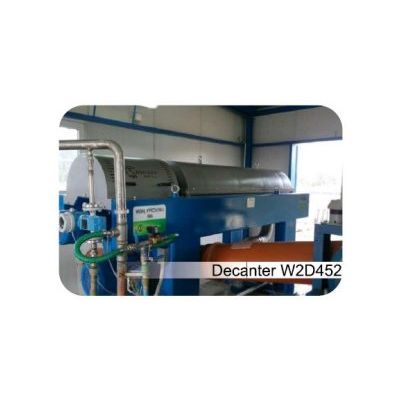

Model: WD 452. Bowl diameter (mm): 450. Bowl slenderness: 4,5. Bowl rotary speed (1/min): 3500. Gearbox: 2-stage planetary, ratio 1:80 or 1:160. Materials: Bowl, Screw conveyor, covers - SS/Duplex, frame carbon steel. Angle of conical side: 8,5. Protection of screw conveyor: Standard - flame spray. Bowl internal lining: Raw strips, not spray welded. Power (kW): Main drive: 22, Back-up drive: 11. Diamensions (m): Length: 3,76, Width: 0,99, Height: 1,5. Weight ( kg ) : 2920.

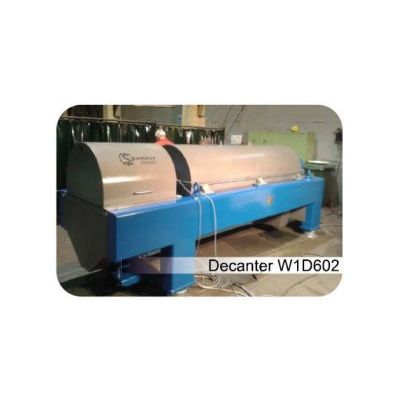

Model: WD 602. Bowl diameter (mm): 600. Bowl slenderness: 3,7. Bowl rotary speed (1/min): 2300. Gearbox: 2-stage planetary, ratio 1:80 or 1:160. Materials: Bowl, Screw conveyor, covers - SS/Duplex, frame carbon steel. Angle of conical side: 8,5. Protection of screw conveyor: Standard - flame spray. Bowl internal lining: Raw strips, not spray welded. Power (kW): Main drive: 45, Back-up drive: 18,5. Diamensions (m): Length: 4,80, Width: "1,23, Height: "1,55. Weight ( kg ) : 5000.

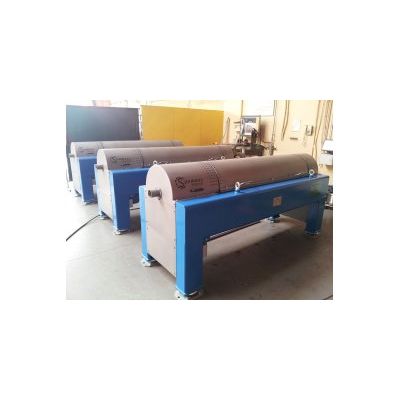

Design And Operation Principle: Decantation centrifuges use very high centrifugal force, influencing on solid particles in liquid, located in very quickly rotating drum, causing very quick sedimentation. Decanter centrifuges and sludge centrifuges are manuafctured in Poland.

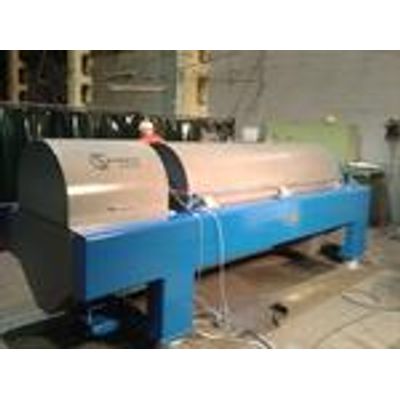

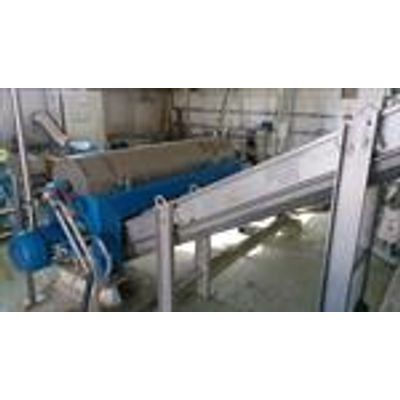

Decantation centrifuges use very high centrifugal force, influencing on solid particles in liquid, located in very quickly rotating drum, causing very quick sedimentation. Dewatering centrifuge with dia. 600mm bowl, L/D = 4 , speed up to 2600rpm, capacity up to 50m3/h, fully automatic process, professional hardfacing on the critical parts. Max power of motors 110kW + 45kW, planetary or cyclo gearboxes. LOW MAINTANANCE COSTS

Having more than 60 year experience in production of centrifuges and having an access to spare parts, we carry out professional overhauls and modernizations of centrifuges manufactured by us but also other manufactures, among others Flottweg, Alfa – Laval, Andritz, Hiller, Sharples, GEA-Westfalia, Pieralisi, KHD-Humboldt, MI-Swaco, Guinard and other.

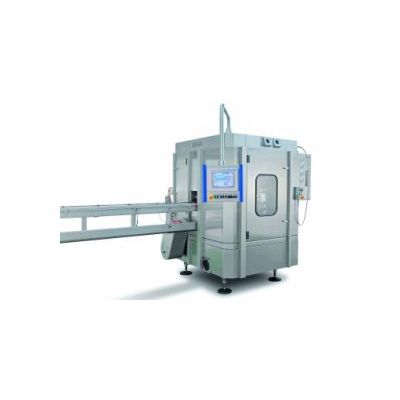

Ferrum can seamer F918 for aluminium beverage cans as well as steel, plastic, and composite applications. Capacity range of 500 to 2500 cans per minute.

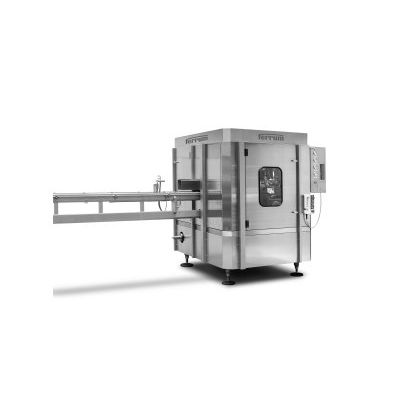

Ferrum can seamer F812-2 for aluminium beverage cans as well as steel, plastic, and composite applications. Capacity range of 500 to 1750 cans per minute.

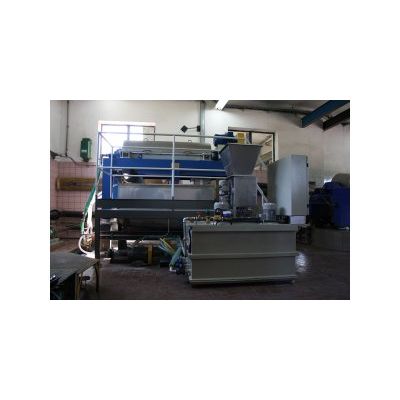

We design and supply complete sewage deposit dewatering stations comprising centrifuges, polyelectrolyte preparation and treatment stations, polyelectrolyte pumps, macerator, screw conveyors, valves, installations and control cabinets. . Complete stations are mounted and launched by our employees. We also focus on selection of dewatering parameters depending on type of supplied product.
