FineTek Co., Ltd. products

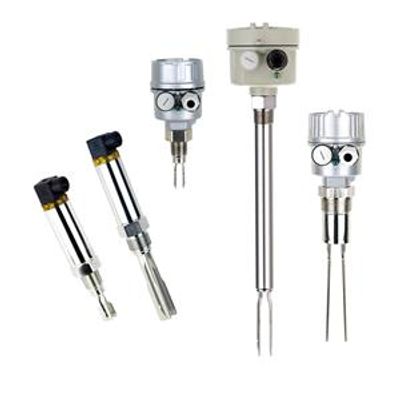

The SC series is a vibrating tuning fork point level sensor that utilizes piezoelectric crystal and solidstate electronics technology to produce vibration in the tuning fork element at a specific frequency and receive electronic feedback. When the probe element is in contact with the target material, the vibration is dampened, the electronic feedback changes, and presence of the material is thereby sensed by the electronics which changes the state of the sensor output to indicate material presence. When the probe element is again free of the target material, the vibration again is produced and the output state reverts to indicate material absence.

FineTek Models include: extension cable transducer, Anti-corrosive model, flanged models & pressure transducers.

SIS Sanitary Intelligent Level Switch used for high, low position alarm in production process tank or pipelines.The compact design to facilitate carrying and transporting, and can be quickly installed even in the area of narrow space or difficult operation. Suitable for use in the CIP and SIP cleaning applications, the surface roughness (Ra) level can be adjusted according to customer`s needs, suitable for use in pharmaceutical and food processing industry applications.

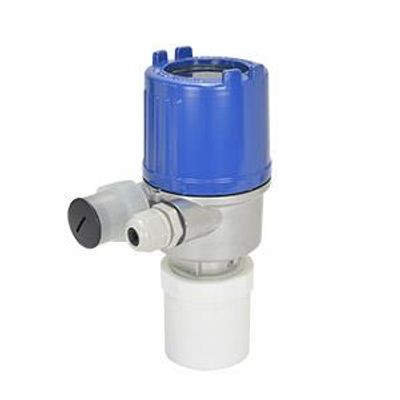

FMCW Radar level transmitter is a non contact measuring device, which is suitable for high temp., high pressure, and corrosive applications. It is easy to install and free of maintenance, especially for the high accuracy requirement environment.

JFR3 FMCW radar level transmitter is a non-contact measuring device, suitable for liquid level measurement in most tanks. It is easy to install, convenient to maintain, and can be used in corrosive applications. With its high precision and stability, it is widely used in liquid level detection and process control in the industrial field. FMCW radar (JFR) adopts a high frequency (GHz level) scanning method; electromagnetic waves are transmitted from the antenna to the target to be measured, then reflected to the receiver over time.

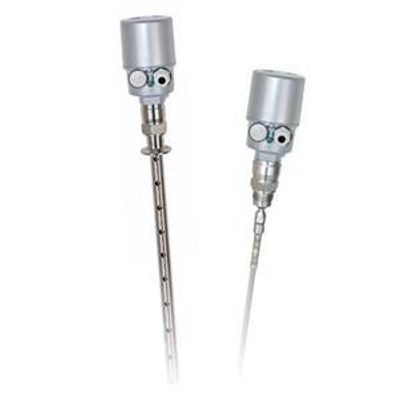

Meets the various measurement requirements of different temperature, pressure and medium. Contact measuring, capable of overcoming the steam, foam and stirring effects. 4~20 mA / 2 lead wires, simple wiring, low power consumption (2.4W max.) 128*64 LCM Display, easy on-site adjustment. Unique algorithms and echo wave processing technology can be used under various types of complex work conditions.

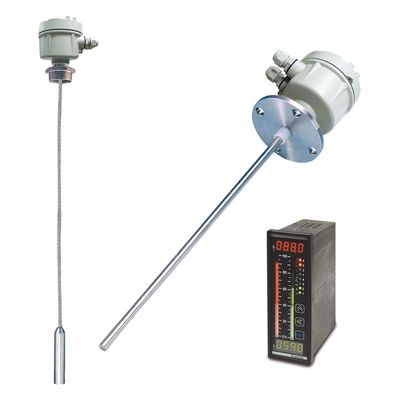

RF Admittance Level Transmitter utilizes the capacitance formed between the sensing probe and the reference probe or the metal vessel wall to calculate the level of the medium inside the vessel according to the capacitance theory that the capacitance and vessel are proportional increased. When the probe is surrounding by the air, little capacitance (C ) is measured by the equivalent A capacitor, the capacitance increase gradually as computing media, the max. capacitance (C ) will be B measured while the tank is full, the difference (dC) between C and C is proportional to the level. A B (Recommend range dC =25 ~2000 pF)

SPX Thermal Dispersion Flow Switch is a precise flow sensing device for liquids. The principle of operation is based on heat transfer. The SP thermal dispersion flow switch is offered with a variety of output types and materials of construction. No moving parts make the SP series a long lasting and high value flow switch.

SFX Series is a paddle flow switch for use with a wide variety of fluids. The paddle flow switch uses the force of the liquid flow to actuate a reed switch. It can be activated by as little as 5gpm (19.4l/m) flow.

The SQ Series pressure switch is available in a wide variety of configurations. The SQ pressure switch utilizes an internal diaphragm which is subjected to the process pressure through a connection in the application. A variety of fixed or adjustable ranges, and electrical connections, are available.
