Flo Trend - a Wassar Logistics Holdings, LLC products
Filtration

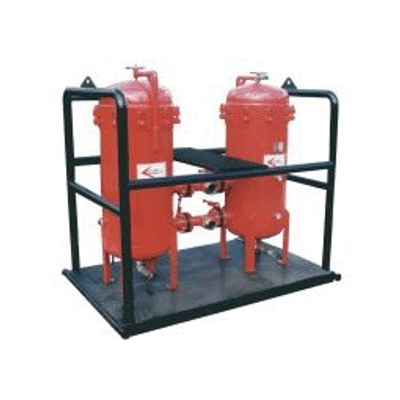

Cartridge filter and bag filter vessels
Cartridge filter vessels and bag filter vessels are manufactured to accept the variety of different types of cartridges and bags available on the market today. Units are fabricated from carbon steel or stainless steel.Power Pak - Filter Presses
The Flo Trend® Systems Power Pak® Filter presses are fabricated from the highest quality carbon steel. The entire frame is sandblasted, primed and coated with epoxy paint. Inlet and outlet manifolds are constructed in either stainless steel or sch. 80 PVC.
Mixing
Jet Shear II
The Jet Shear® II is a new mixing technology utilizing hydraulic shear to effectively and efficiently mix dry materials with liquids, as well as blend, emulsify, and stabilize liquid/liquid phases.
Eductor
Flo Trend® Systems` Eductor, the Jet Hopper operates on the principle of fluid entrainment. Although design and construction may vary, this applies to all eductors.Poly-Mate Polymer Injection Systems
Poly-Mate® Polymer Injection Systems can be used for either liquid or dry polymer mixing and injection. The Poly-Mate® Models 250 through 2000 are designed to be used with liquid polymer, which is manually added to the batch tank. An electric agitator is used for dispersing and blending the neat polymer with water. The dilute solution is then injected via pump into the Mix Mate manifold producing uniformly flocculated sludge ready to be dewatered.Mix Mate
The Mix Mate is used for rapid and thorough mixing of two or more liquid streams. It is especially effective as a sludge-polymer mixing device, because the Mix Mate produces uniformly flocculated sludge ready to be dewatered.Separation
Mud Cleaner
The Combo Cleaner combines hydrocyclones and a Vibratory Screen to provide liquid/solids separation at a high flow rate. As a first stage, the slurry is processed through the hydrocyclones, the cleaned liquid is carried out the Hydrocyclone overflow and the concentrated underflow (solids) are deposited on a vibratory screen deck. The screen deck imparts a rapid linear motion, producing an energy force that dewaters and conveys the solids to the discharge end of the screen. The screened liquid flows into a collection pan located below the screen deck. The cleaned liquid overflow from the hydrocyclones and the screened liquid may be blended together.Hydrocylones
Hydrocylones are designed for separating solids from liquids and are successfully used in a broad range of industrial and environmental applications. New uses are continually being discovered as engineers and project supervisors become familiar with the Hydrocyclones` versatility in liquid/solids separation, classification, and concentration.Clear Flo - Inclined Plate Clarifiers
Flo Trend® Systems" Clear Flo Clarifier is a portable inclined-plate clarifier with a flash-floc tank and motorized rake for discharging collected sludge. With a pre-flock tank, this unit is able to handle flow of up to 80 gpm with 500 ppm to 100 ppm solids. (Higher concentrations of solids can be processed with a corresponding higher flow rate of concentrated sludge removed from the collection tank of the clarifier.) The Clear Flo Clarifier comes with a Mix Mate manifold for mixing polymer with sludge prior to entering the flash-floc tank.
