Flownamics products

Automated Sampling Systems

Flownamics Seg-Flow - Automated Sampling System

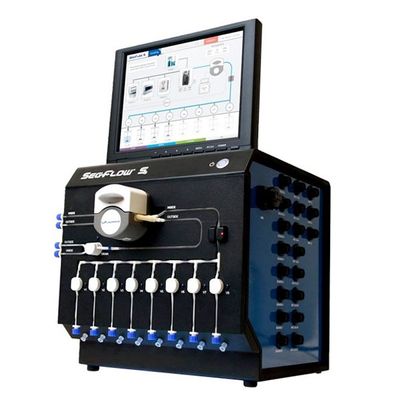

The Seg-Flow S3 Automated Sampling System by Flownamics allows precise and efficient bioprocess monitoring and control. Designed with robust hardware, the system features intelligent pinch valves and non-contact ultrasonic sensors. The system's user interface provides intuitive menus, live flow path status, and reagent level information. LED status lights indicate sampling phases and cleaning sequences. The Sample-Mod S3 module facilitates sample pre-dilution and can distribute samples to multiple analyzers or filling systems. The central Reagent-Manifold cleans and disinfects the sampling fluid path. Additionally, samples can be stored in a temperature-controlled FlowFrac 1000 Fraction Collector to maintain integrity. The Seg-Flow S3 supports multiple analytical integrations through its communication interface and FlowWeb control software, which collects data from integrated instruments and exports it to any OPC-enabled SCADA system. It provides multiple feed control options, handling up to 8 vessels or process streams and delivering samples to 4 analyzers or fraction collectors.

Analytical Integrations with Seg-Flow S3 & S3G

Flownamics' Seg-Flow - Automated Sampling System

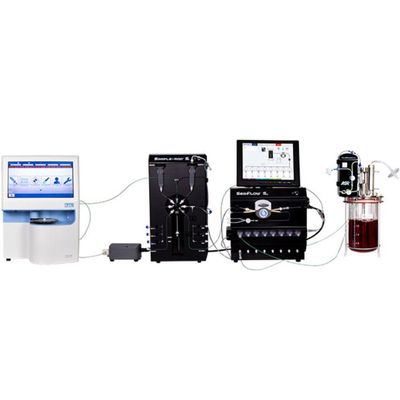

Combining the Seg-Flow S3 with the Agilent InfinityLab Online LC Solution creates a fully automated on-line system that provides both classical flow-through injection and Agilent Feed Injection for up to 8 bioreactors. This user friendly integration requires minimal set-up due to the Seg-Flow S3 and the Agilent InfinityLab Online LC Solution being designed for automation and having a complete library of functions readily available for implementation.

Fraction Collectors

Flownamics - Fraction Collector - Automated Sample Collection Device

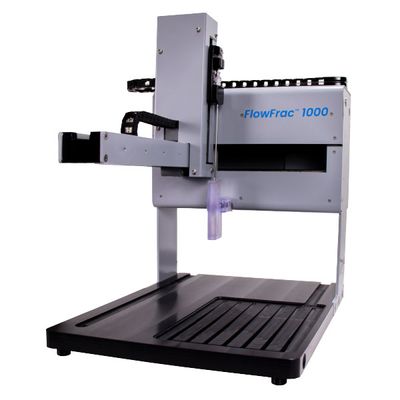

The FlowFrac 1000 is an advanced fraction collector engineered for robust and user-friendly operation in laboratory environments. It pairs seamlessly with the Seg-Flow automated online sampling systems, accommodating both septum and non-septum applications. This versatility allows it to work with a diverse range of vial types and sizes. The device supports various cooling options including the Peltier+ and Chiller Plate, ensuring temperature control during sample collection. The FlowFrac 1000 is capable of standalone operation through USB commands, independent of other Flownamics products. It boasts a compact design with dimensions of 13.875” W x 19.25” D x 20.375” H and a weight of 25.8 lbs. The fraction collector offers multiple configurations with 96 well plates, 5 mL, 50 mL, 2 mL HPLC, and 15 mL positions. It operates efficiently under a wide range of environmental conditions. Equipped with auto-sensing power capabilities, the FlowFrac 1000 is both CE and RoHS compliant, making it a reliable addition to any bioprocessing setup.

Liquid Handlers

Flownamics Director - Liquid Handler

The Director Liquid Handler represents a significant advancement in bioprocessing and cell line development automation. This compact system allows for the simultaneous handling of up to 384 samples, reducing the need for manual intervention and enabling seamless integration with multiple analytical devices. The system collects all data from connected analytical equipment and automatically sends it to a control system or enterprise historian. It also features an auto dilution function to minimize manual errors when preparing samples for analyzers. The Director can aliquot samples from larger tubes or vials into microtiter plates or smaller vials, boosting efficiency and minimizing labor costs. Optional integrations include the Peltier+ module to keep samples chilled and a Raman Modeling Module for interfacing with various Raman platforms. The system's specifications are designed to be flexible to support various rack configurations and analytical device requirements, making it ideal for a wide range of bioprocessing applications.

Sample Cooling Devices

Flownamics - Cooling System for Sample Rack Temperature Control

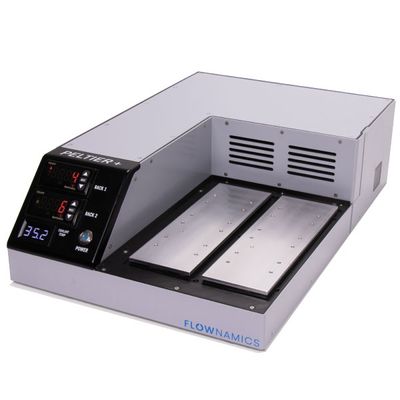

Flownamics introduces the Peltier+ Cooling System, designed to maintain sample racks at precise temperatures ranging from 0° to 20°C. The compact unit includes two independent cooling zones, each adjustable through digital controllers mounted on the front, allowing for simultaneous cooling at different temperatures. It supports various rack and vial sizes, including 2ml HPLC vials, 50ml conical tubes, and custom configurations exclusive to Flownamics racks. Ideal for both standardized and custom applications, the Peltier+ streamlines sample management by eliminating the need for additional setup or training. The system's dimensions are 13.25” W x 20.375” D x 5.5” H, with a weight of 15 lbs. A front display provides real-time coolant temperature readings. Microtiter plates can also be accommodated, with each cooling plate holding up to two plates. The Peltier+ is a reliable solution for precise and efficient sample cooling in biotechnological processes.
